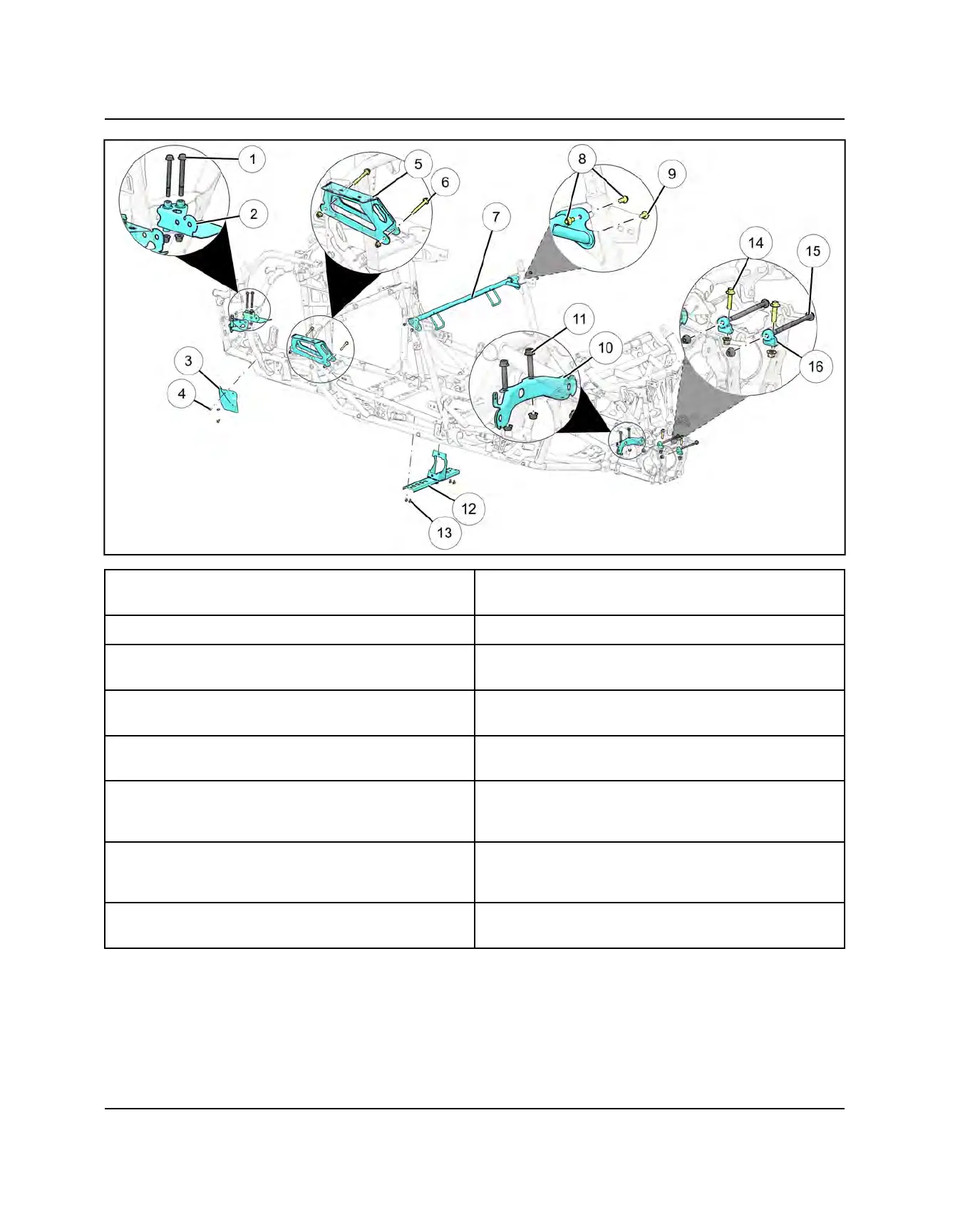

Driveline Support Fastener
44 ft-lbs (60 Nm)
o
Frame Cross Bar Fastener (4 Seat) (M8x1.25x16)
15 ft-lbs (20Nm)
w
Driveline Support
a
Upper Control Arm Bracket
e
Oil Filter Guard
s
Upper Control Arm Bracket Fastener
52 ft-lbs (70 Nm)
r
Oil Filter Guard Fastener
44 in-lbs (5 Nm)
d
Propshaft Mount
t
Engine Mount
f
Propshaft Mount Fastener
15 ft-lbs (20 Nm)
y
Engine Mount Fastener
44 ft-lbs (60 Nm)
g
Front Drive Mount Fastener (M12 x 1.25 x 230)
(See Front Drive Removal / Installation for torque
procedure)
u
Frame Cross Bar
h
Front Drive Mount Fastener (M12 x 1.25 x 50)
(See Front Drive Removal / Installation for torque
procedure)
i
Frame Cross Bar Fastener (4 Seat) (M8x1.25x20)
18 ft-lbs (25Nm)
j
Front Drive Mount Casting
