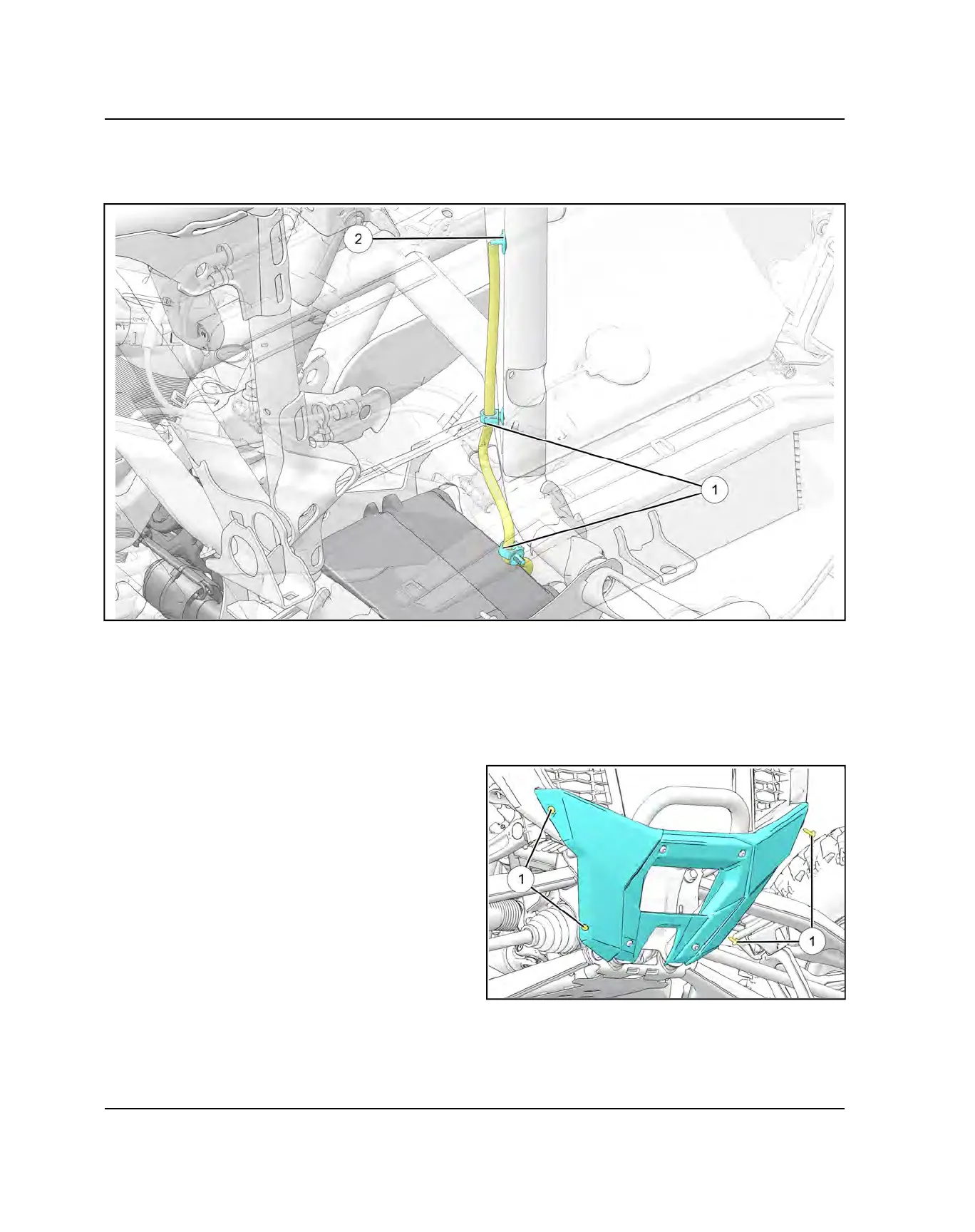

FRONT GEARCASE VENT LINE ROUTING
The front gearcase vent line routes up the LH shock support tube. It is then retained with two hinge clips
q
. The vent
line continues upward and terminates into and open section of the frame using a termination fitting
w
.
FRONT GEARCASE REPLACEMENT
REMOVAL
1. Place vehicle on a suitable lift or jack and remove
front wheel.
2. Remove four front fascia fasteners
q
and remove
front fascia.
