Polaris RZR Pro R 2022 Service Manual

6
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
6.21

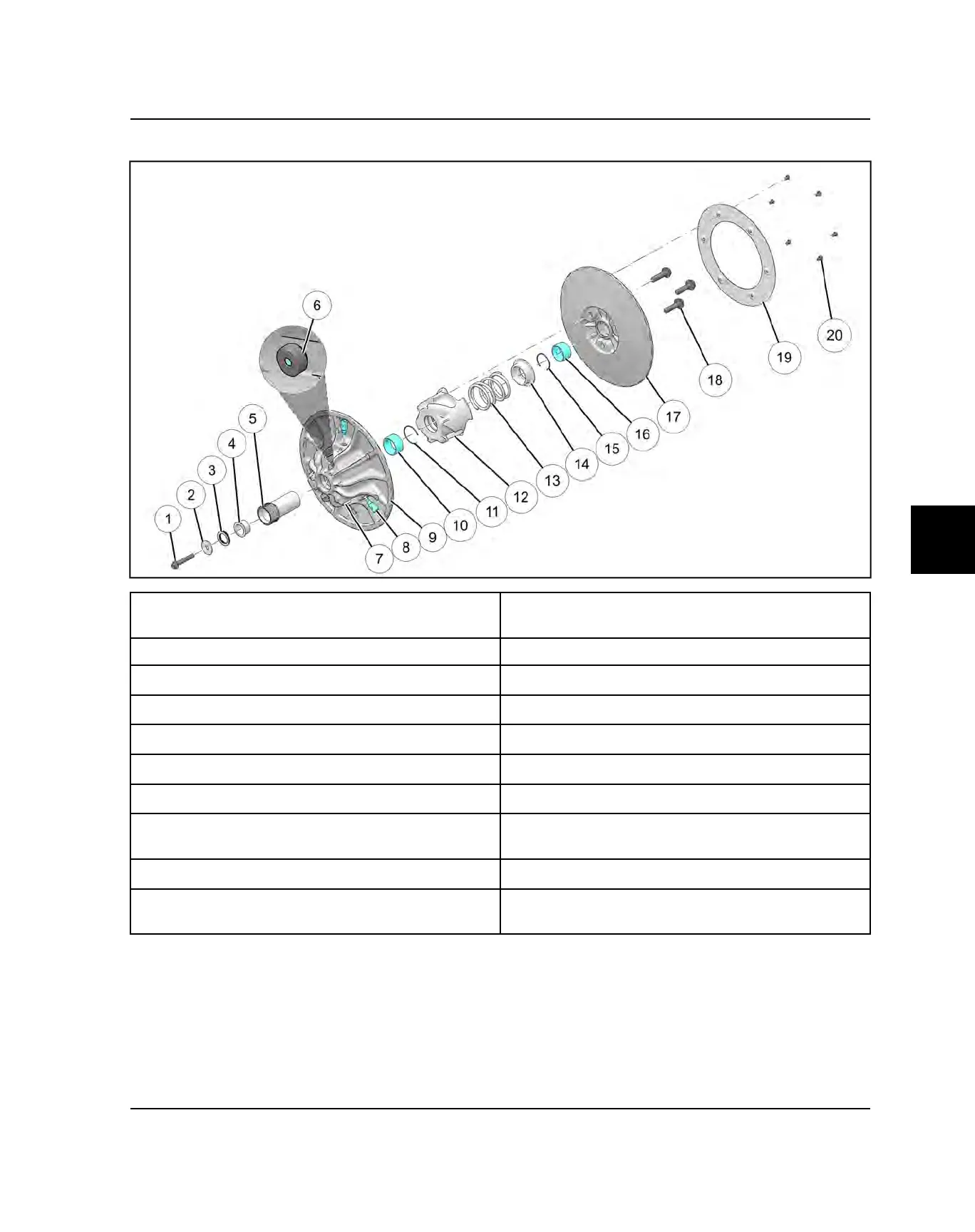

DRIVEN CLUTCH ASSEMBLY VIEW
q
Driven Clutch Bolt
26 ft-lbs (35 Nm)
s
Snap Ring
w
Washer
d
Helix
e
Shim (0-8)
f
Spring
r
Bushing
g
Spring Cup
t
Driven Post
h
Snap Ring
y
Roller
j
Bearing
u
Spring Pin
k
Moveable Sheave
i
Roller Pin
l
Helix Fasteners
63 ft-lbs (85 Nm)
o
Stationary Sheave
1(
Windage Plate
a
Bearing
2)
Windage Plate Fastener
50 in-lbs (6 Nm)
