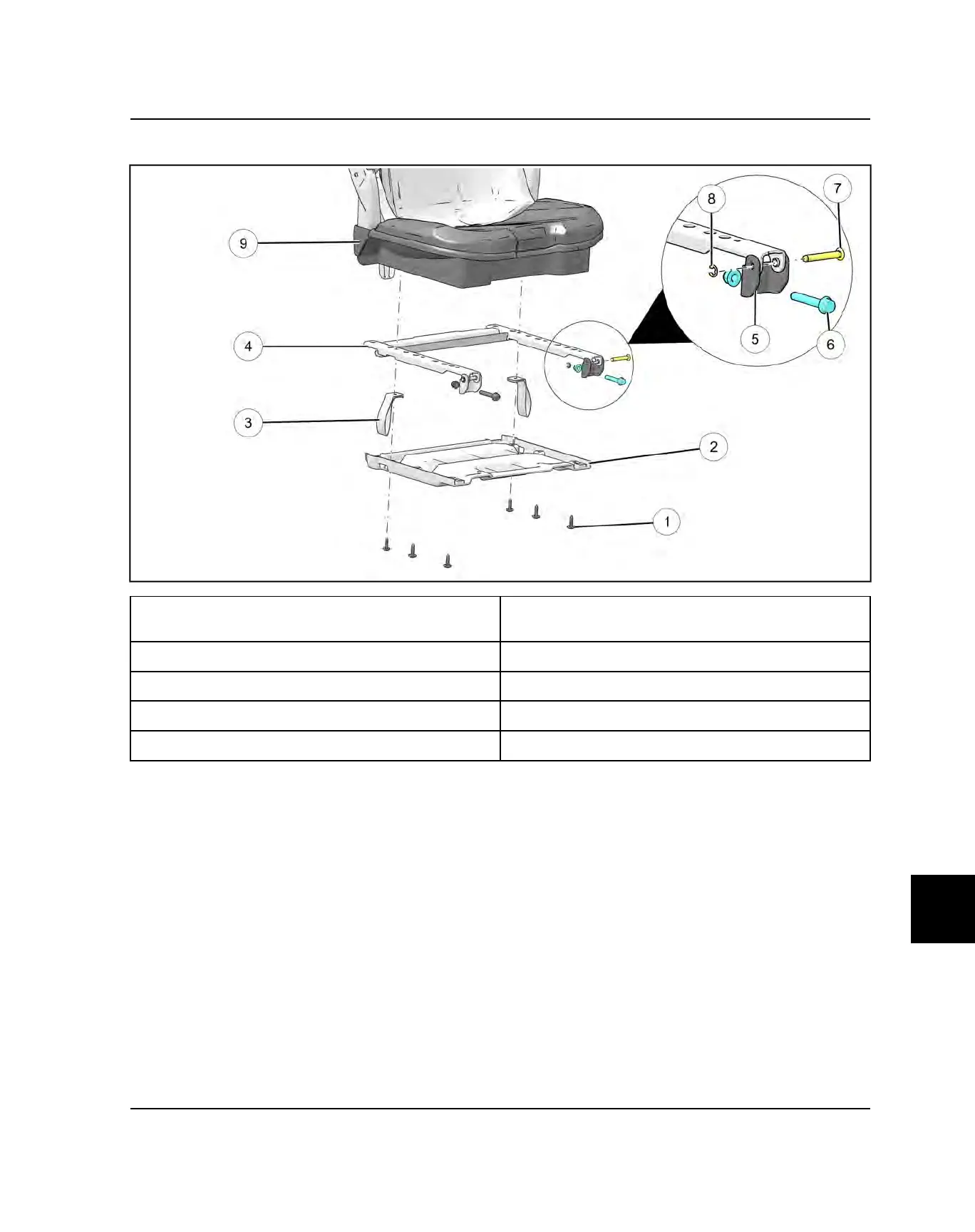

REAR SEAT ASSEMBLY (4-SEAT)
q
Underseat Flip Panel Fastener
6 ft-lb (8 Nm)
y
Seat Frame Hinge Fastener
15 ft-lbs (20 Nm)
w
Underseat Flip Panel
u
Door Hinge Pin
e
Seat Strap
i
E-Clip
r
Seat Frame (Rear)
o
Seat Bottom Assembly
t
Seat Frame Hinge
