9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.

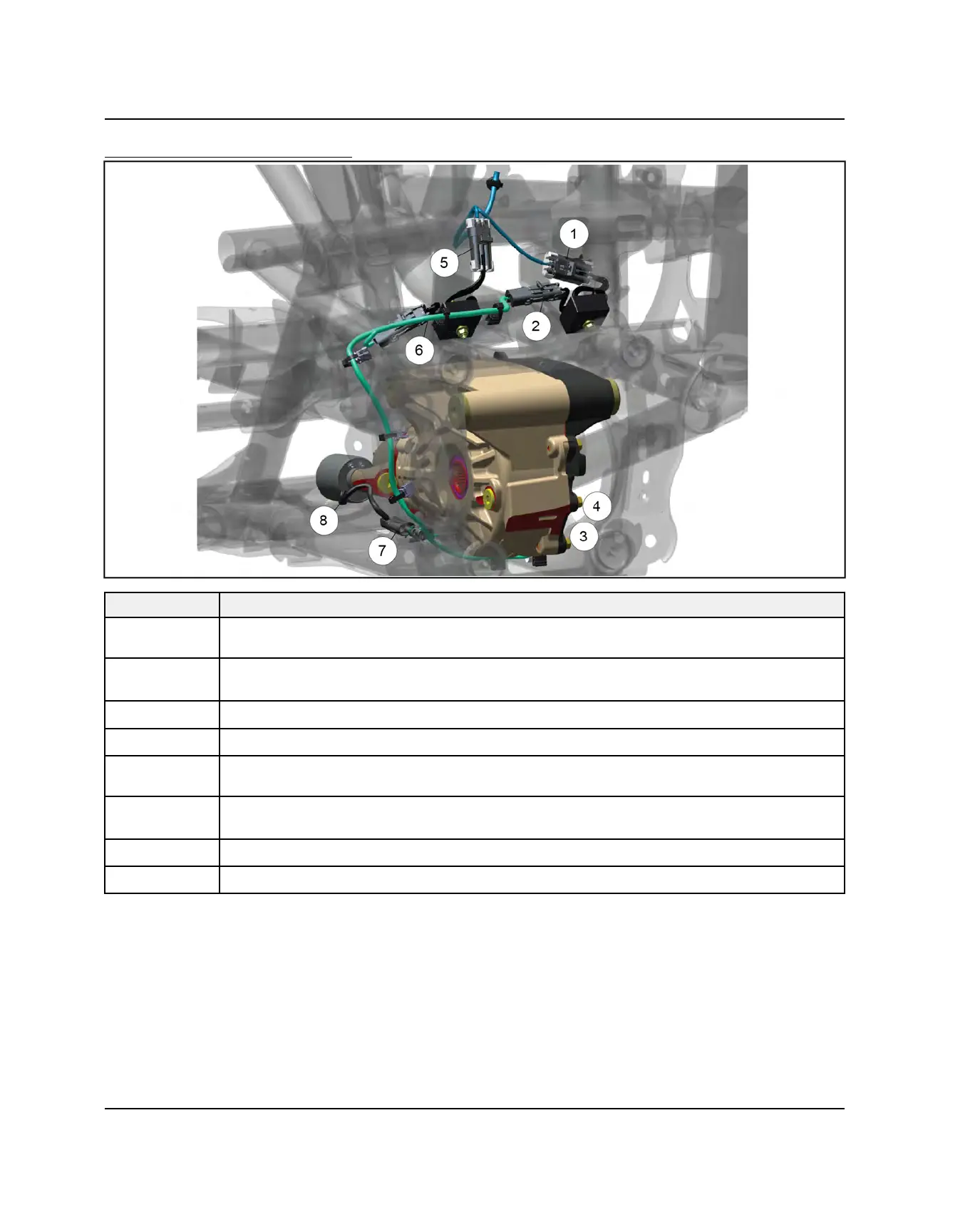

RELAY AND SOLENOID DIAGRAM
REFERENCE DESCRIPTION
q
Differential Lock Solenoid Driver, chassis harness connector
Pin B of the Differential Lock Driver chassis connector will be a Dark Green/White wire
w
Differential Lock Solenoid Driver & jumper harness connector
Correct Differential Lock jumper harness branch has Red/Dark Green and Dark Green wires
e
Differential Lock Solenoid connector (hidden, located driver side of differential)
r
Differential Lock Solenoid (hidden, located driver side of differential)
t
Pinion Disconnect Solenoid Driver, chassis harness connector
Pin B of the Pinion Disconnect chassis connector will be a Brown/White wire
y
Pinion Disconnect Solenoid Driver & jumper harness connector
Correct Pinion Disconnect jumper harness branch has Red/Brown and Brown wires
u
Pinion Disconnect Solenoid connector
i
Pinion Disconnect Solenoid
DRIVESHAFT (HALF SHAFT) DIAGNOSTICS
Driveshaft (Half Shaft) operation can cause various customer concerns. For more information related to Driveshaft
concerns or failures CLICK HERE to view the “Half Shaft Analysis” poster.
GENERAL INFORMATION
