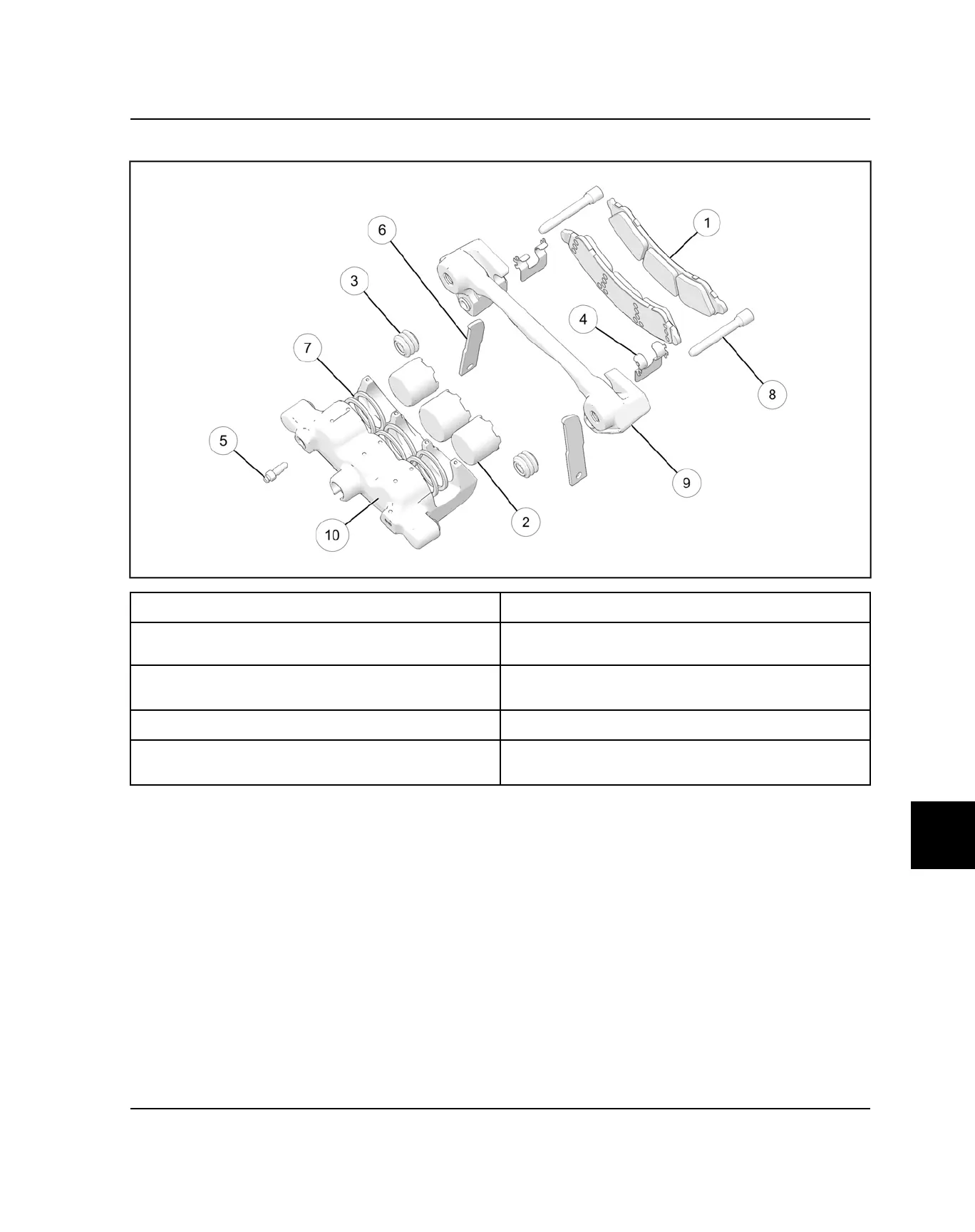

FRONT CALIPER ASSEMBLY VIEW
q
Brake Pads
y
Pad Spacer
w
Pistons
lubricate with DOT 4 Brake Fluid
u
Piston O-Rings
lubricate with DOT 4 Brake Fluid
e
Boots
i
Mount Pins
apply Silicone Grease on install
r
Brake Pad Wear Clip
o
Brake Scraper
t
Bleeder Screw
48 in-lb (5 Nm)
a
Caliper Assembly
BRAKE SYSTEM
