SWITCHES / CONTROLS

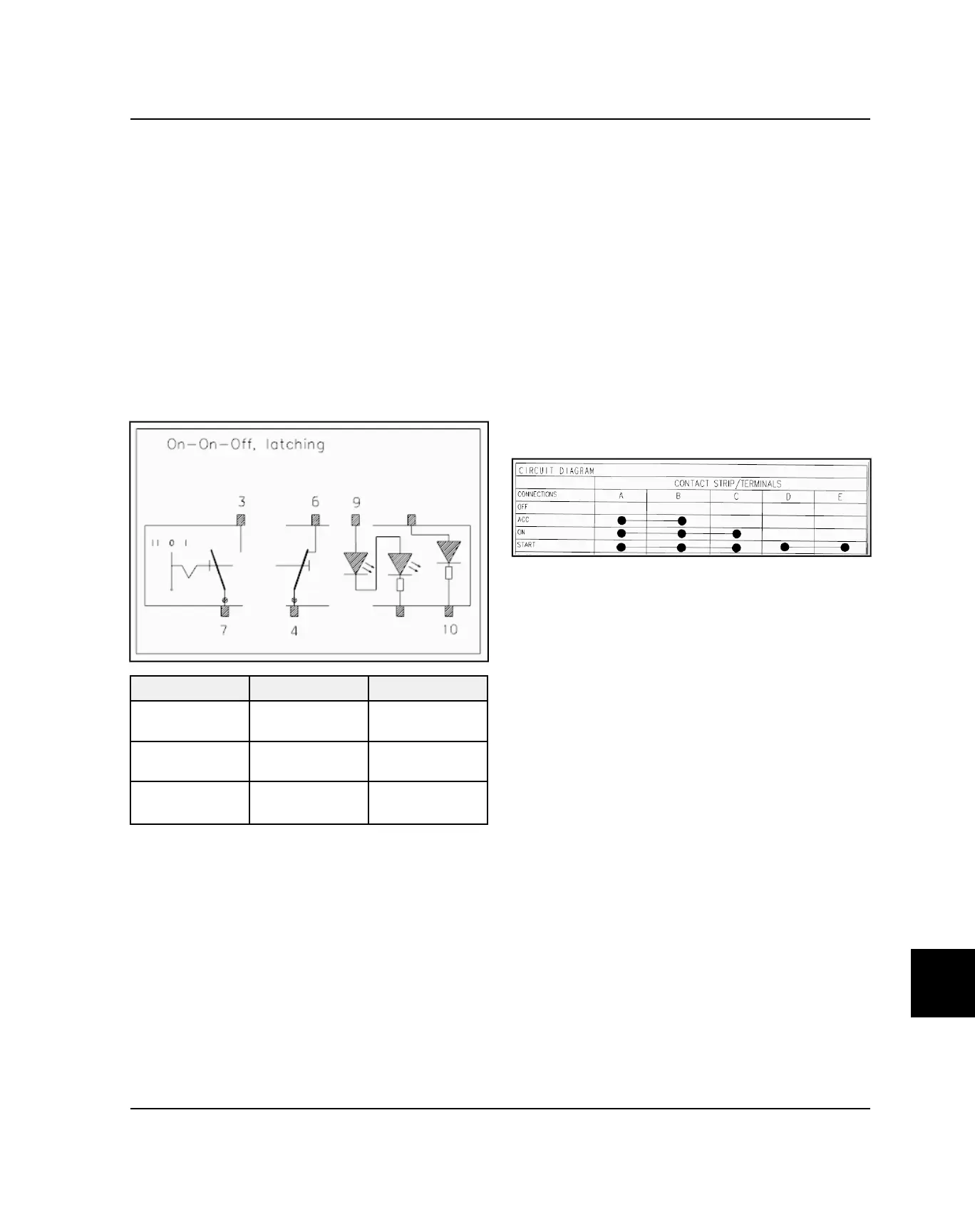

HEADLIGHT SWITCH
1. Disconnect the headlamp switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (OFF / LOW /
HIGH). If any of the tests fail, replace headlight switch
assembly.
3. Move the switch to HI. There should be continuity
between switch pins 3 and 7; 6 and 4.
4. Move the switch to LOW. There should be continuity
between switch pins 6 and 4.
5. Move the switch to OFF. There should be no
continuity between switch pins.
POSITION FUNCTION TERMINALS
Up Hi Beam 3 and 7 closed,
6 and 4 closed
Neutral Low Beam 3 and 7 open, 6
and 4 closed
Down
Off
3 and 7 open, 6
and 4 open
IGNITION / KEY SWITCH
1. Disconnect the key switch harness by depressing the
connector lock and pulling on the connector. Do not
pull on the wiring.
2. Test between the 4 sets of outputs (OFF / ACCY / ON
/ START). If any of the tests fail, replace ignition
switch assembly.
• In the OFF position, there should be no continuity
between any of the pins.
• Turn the key to ACCY position. There should be
contunity between switch pins A and B.
• Turn the key to ON position. There should be
continuity between switch pins A, B and C.
• Turn the key to START position. There should be
continuity between A, B, and C; D and E.
