DRIVEN CLUTCH SERVICE

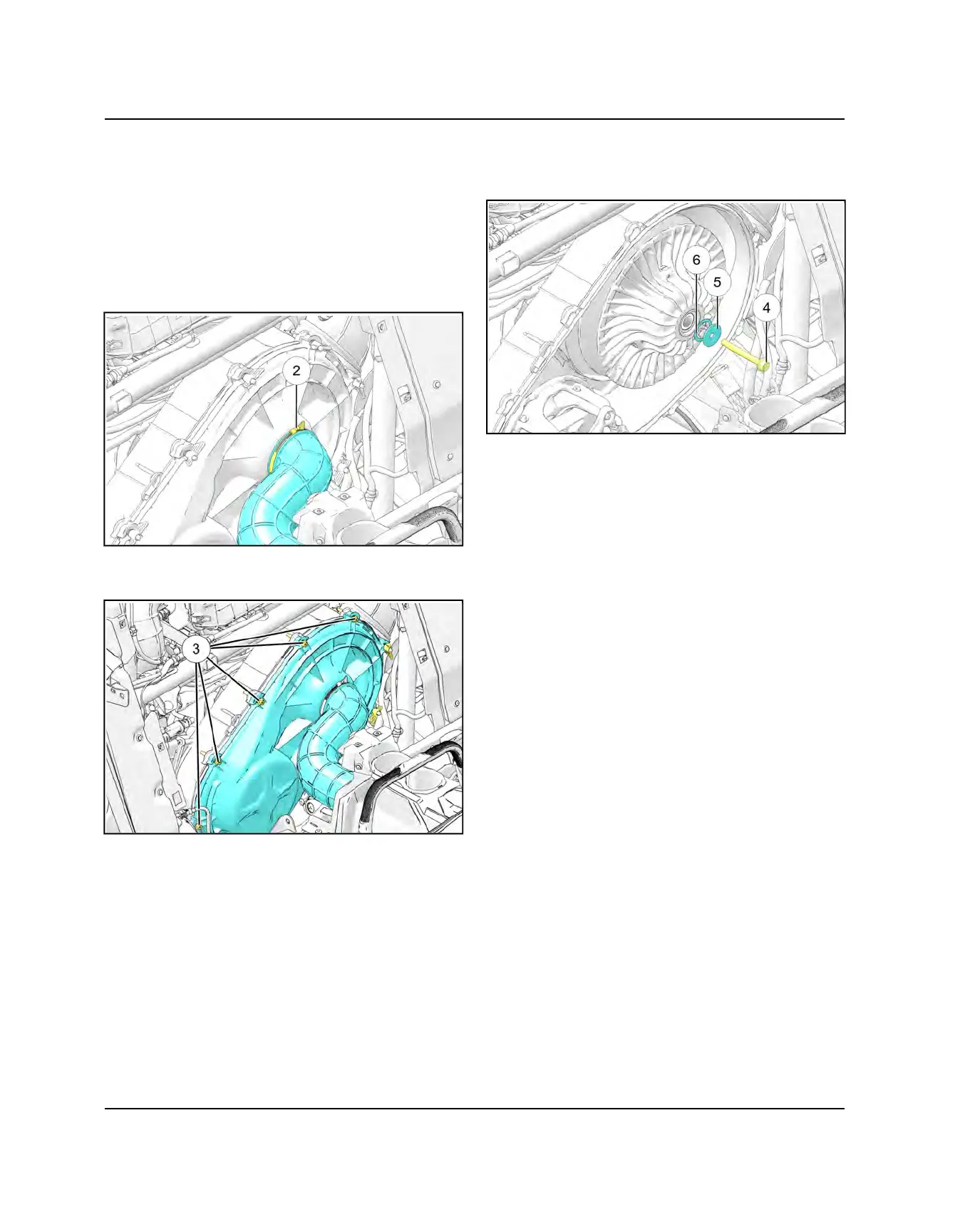

DRIVEN CLUTCH REMOVAL
1. Park vehicle on a level surface.
2. Remove seats. On 4-seat models, remove the rear
seats.
3. Remove upper and lower rear close-off panels.
4. Loosen hose clamp
w
and remove the PVT intake
hose.
5. Remove five fasteners
e
, disengage remaining 1/4
turn latches, and remove the outer PVT cover.
6. Remove the drive belt.
7. Remove bolt
r
, spacer
t
, and washer
y
. Remove
the driven clutch.
