TAIL LIGHT REPLACEMENT
Before replacing the taillight(s), use a digital multi-meter
to test the harness to ensure the lamp is receiving 12
volts and that a ground path is present.
REMOVAL

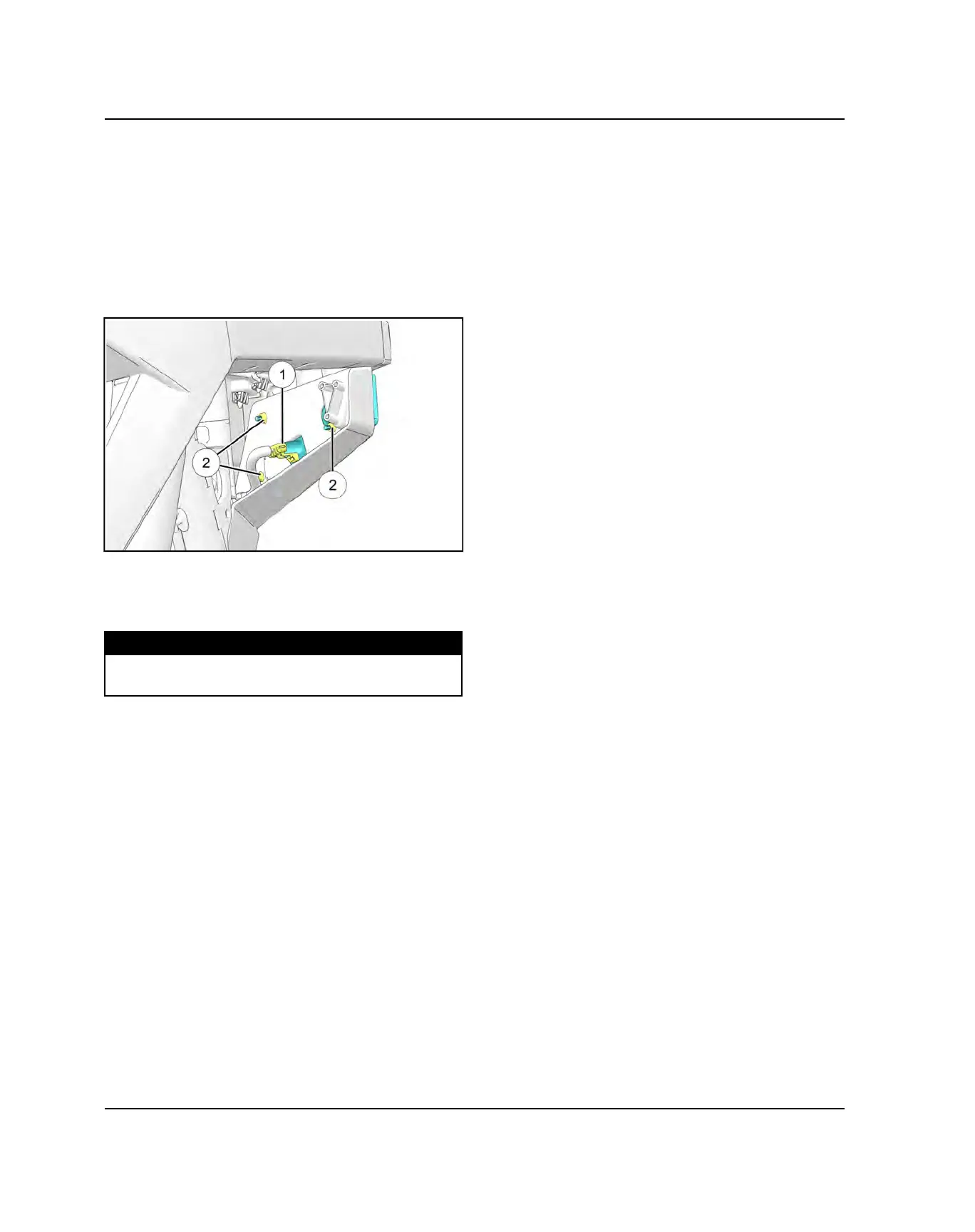

1. Disconnect the wire harness
q
.
2. While holding the taillight assembly, remove the three
nuts
w
retaining the taillight assembly and remove it
from the rear fascia.
INSTALLATION
1. Reverse the removal procedure for tail light
installation.
TORQUE
Tail Light Mounting Fasteners:
24 in-lb (3 Nm)
DASH LIGHT
The LED light will remain ON for approximately 30
seconds after key has been switched to the OFF
position.
