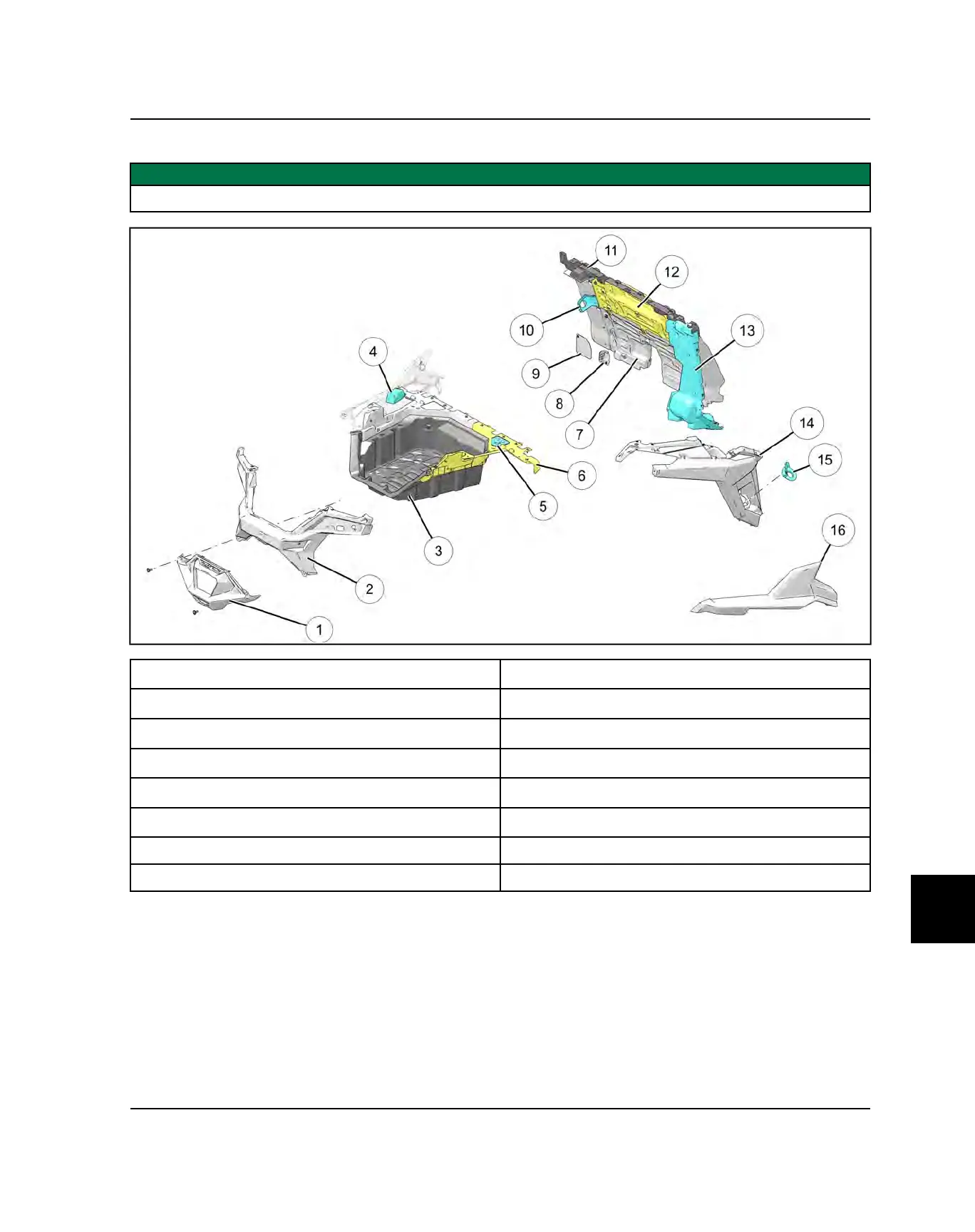

REAR CARGO BOX / FENDERS
IMPORTANT
All Body Fasteners are 88 in-lbs (10 Nm).
q
Rear Bumper
o
PDM Guard
w
Rear Facia
a
Rear Close Off Plug (LH)
e
Rear Box Tub
s
Close-Off Panel Plug (LH)
r
B-Pillar Close-off panel
d
Rear Top Close-Off Panel
t
Coolant Access Panel
f
Rear Close-Off Panel (RH)
y
Inner Fender (RH)
g
Rear Fender Flare (RH)
u
Rear Bottom Close-Off Panel
h
Fill Neck Grommet
i
EVAP Grommet
j
Rear Outer Fender
