8
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
8.29

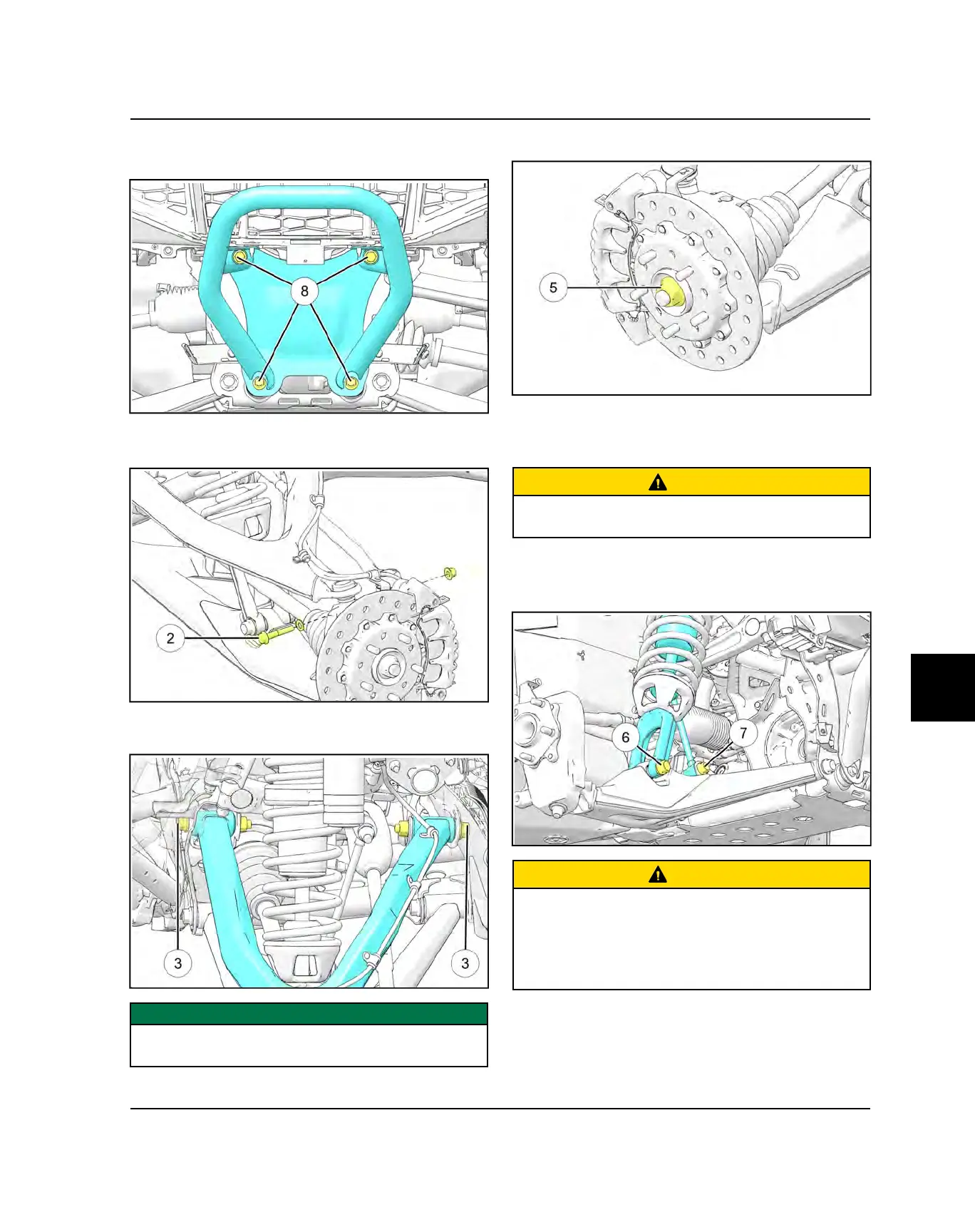

3. Remove four fasteners
i
and remove the front
bumper.
4. Both sides of vehicle: Remove ball joint pinch bolt
w
,
washer, and nut from the upper control arms.
5. Driver’s side only: Remove two control arm mounting
fasteners
e
.
IMPORTANT
The access panel must be removed from the driver’s
side footwell to remove rear upper control arm fastener.
6. Both sides of vehicle: Remove wheel axle nut
t
.
7. Both sides of vehicle: Remove and discard the two
front brake caliper mounting bolts and remove the
caliper from the brake disc.
CAUTION
Do not hang the caliper by the brake line. Use wire to
hang caliper to prevent damage to the brake line.
8. Remove lower shock fastener
y
and sway bar link
fastener
u
. Move shock and sway bar link out of the
way.
CAUTION
Front suspension must be supported with a strap or
jack before the shock is removed, and must not be
allowed to hang unsupported at full droop. If hung
unsupported, the weight of the suspension will be
applied to the tie rod, resulting in a bent or damaged
inner tie rod.
9. With a short, sharp jerk, remove half shaft from the
front gearcase.
FINAL DRIVE
