9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
3.43
INSTALLATION

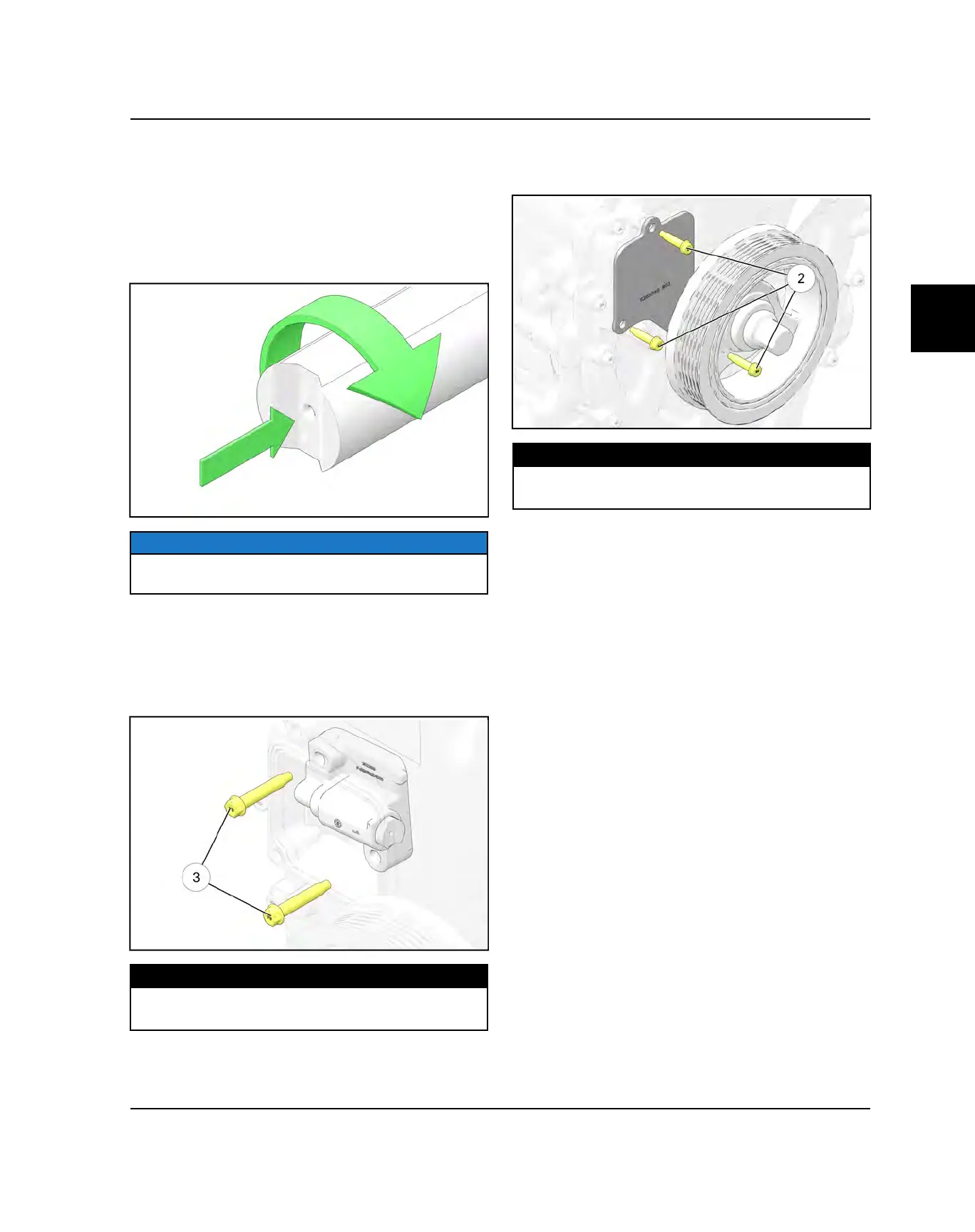

Reset the timing chain tensioner by performing the
following steps:
1. Remove the piston assembly from the body of the
timing chain tensioner.
2. Press in and twist clock-wise the end of the tensioner
piston until it engages with itself and stays collapsed.
NOTICE
This procedure works best when the tensioner piston is
dry.
3. Reinstall the piston assembly into the body of the
tensioner.
4. Install the tensioner assembly into the crankcase.
5. Install chain tensioner assembly. Install chain
tensioner fasteners
e
and torque to specification.
TORQUE
Tensioner Fasteners:
80 in-lbs (9 N·m)
6. Press in and release the tensioner piston to allow it to
engage with the chain guide.
7. Install the gasket and tensioner cover. Install three
tensioner cover fasteners
w
and torque to
specification.
TORQUE
Tensioner Cover Fasteners:
80 in-lbs (9 N·m)
ENGINE / COOLING SYSTEM
