6
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
6.27

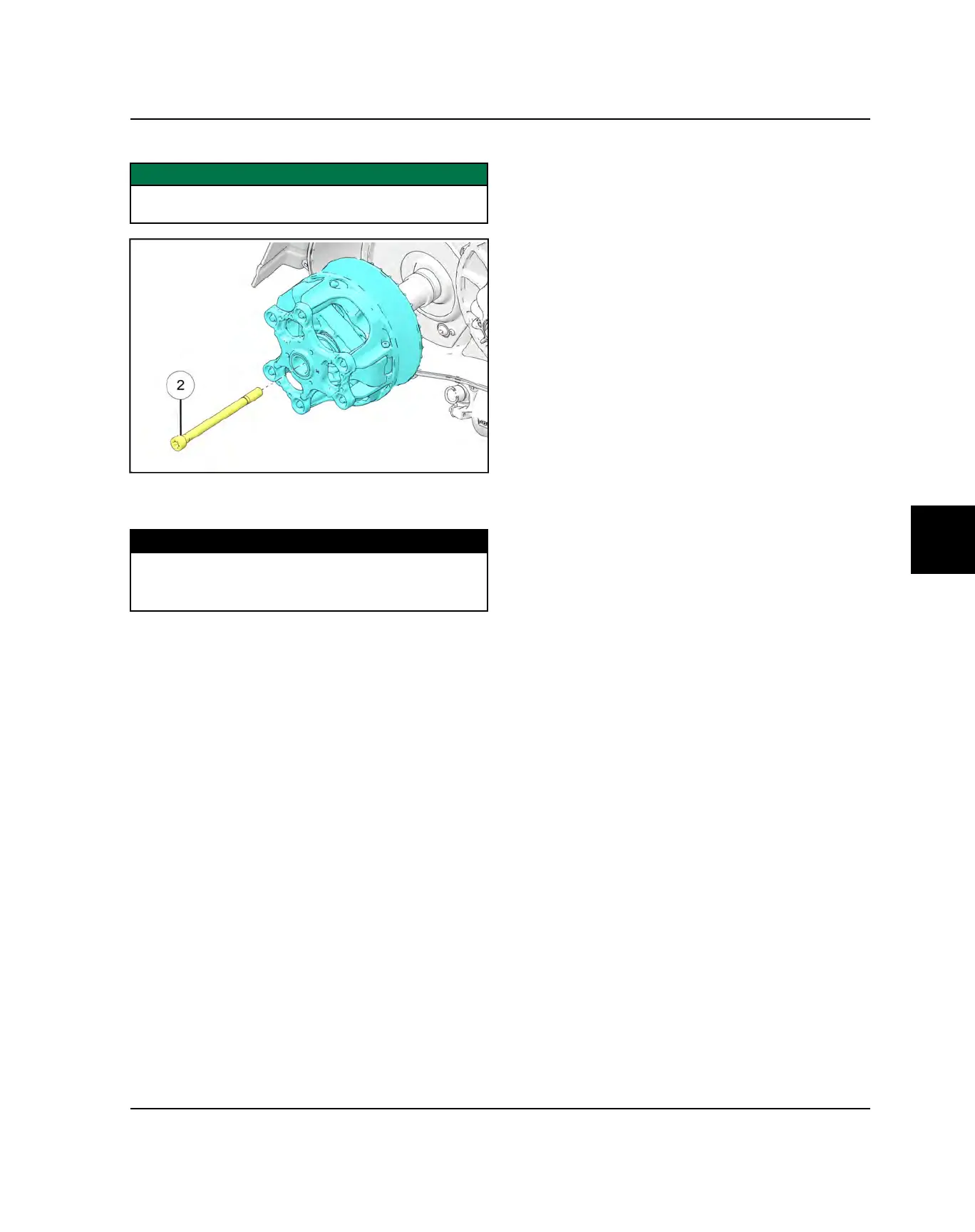

8. Remove the drive clutch bolt
w
and drive clutch.
IMPORTANT
Ensure the drive clutch taper and engine taper are
clean and free of debris.
9. Reinstall the drive clutch and bolt. Torque the drive
clutch bolt to specification.
TORQUE
Drive Clutch Retaining Bolt:
Step 1: 140 ft-lbs (190 Nm)Step 2: Loosen two full
turns (720°)Step 3: 118 ft-lbs (160 Nm)
10.Reinstall the drive belt and outer cover assembly.
Refer to Belt Installation page .
PVT SYSTEM
