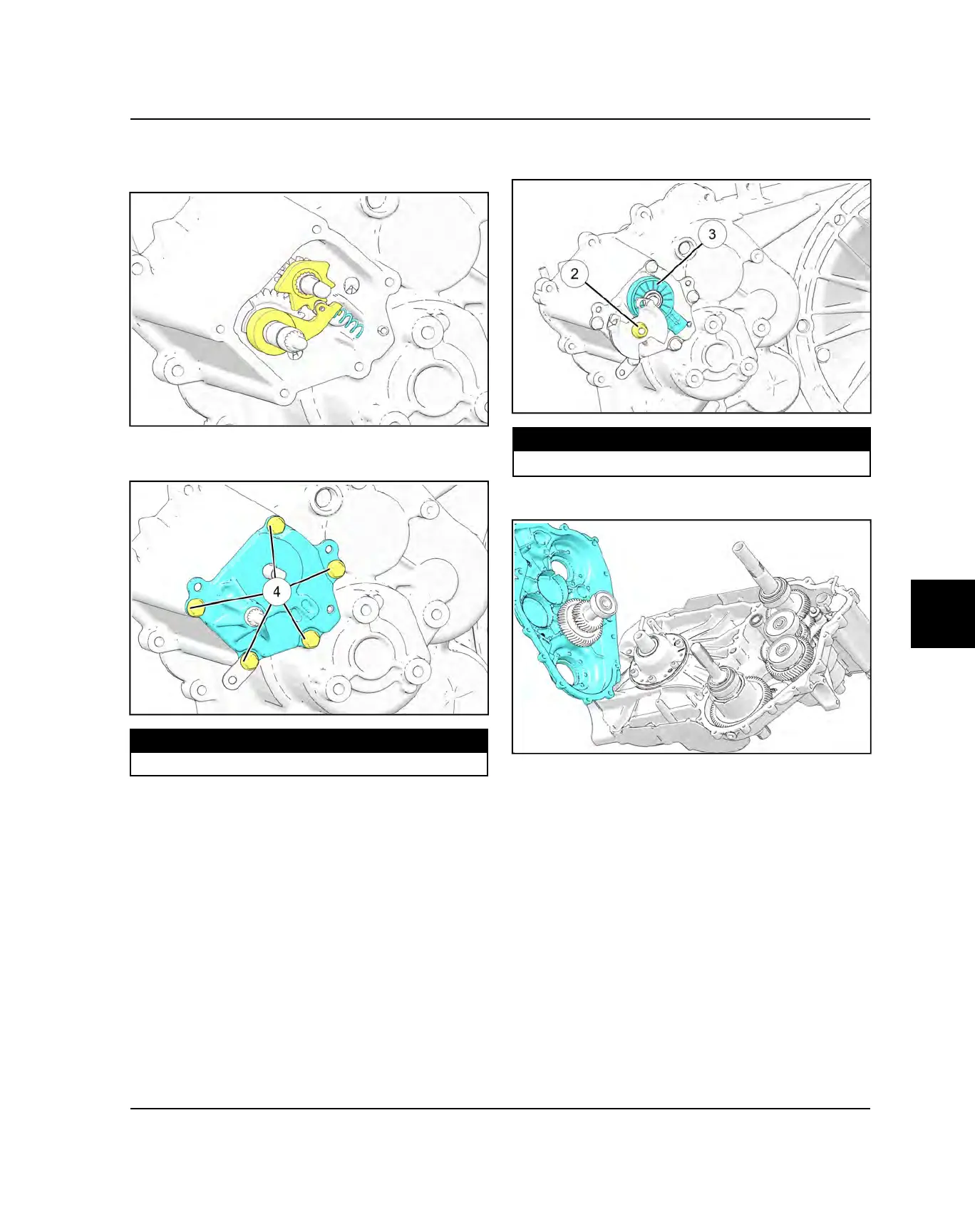

9. Install detent spring, detent pawl and detent star.
Note the master spline on the detent star and the shift
shaft.
10.Install five fasteners
r
into rear transmission cover.
Torque fasteners to specification.
TORQUE
Sector Gear Cover Fasteners:
11. Install transmission position sensor
e
.
12.Install shift linkage plate and one fastener
w
. Torque
fastener to specification.
TORQUE
Shift Linkage Plate Fastener:
13.Install idler gear into transmission cover.
14.Apply a continuous bead of Crankcase 3 Bond
Sealant (PN 2871557) to left-hand transmission
mating surface.
TRANSMISSION
