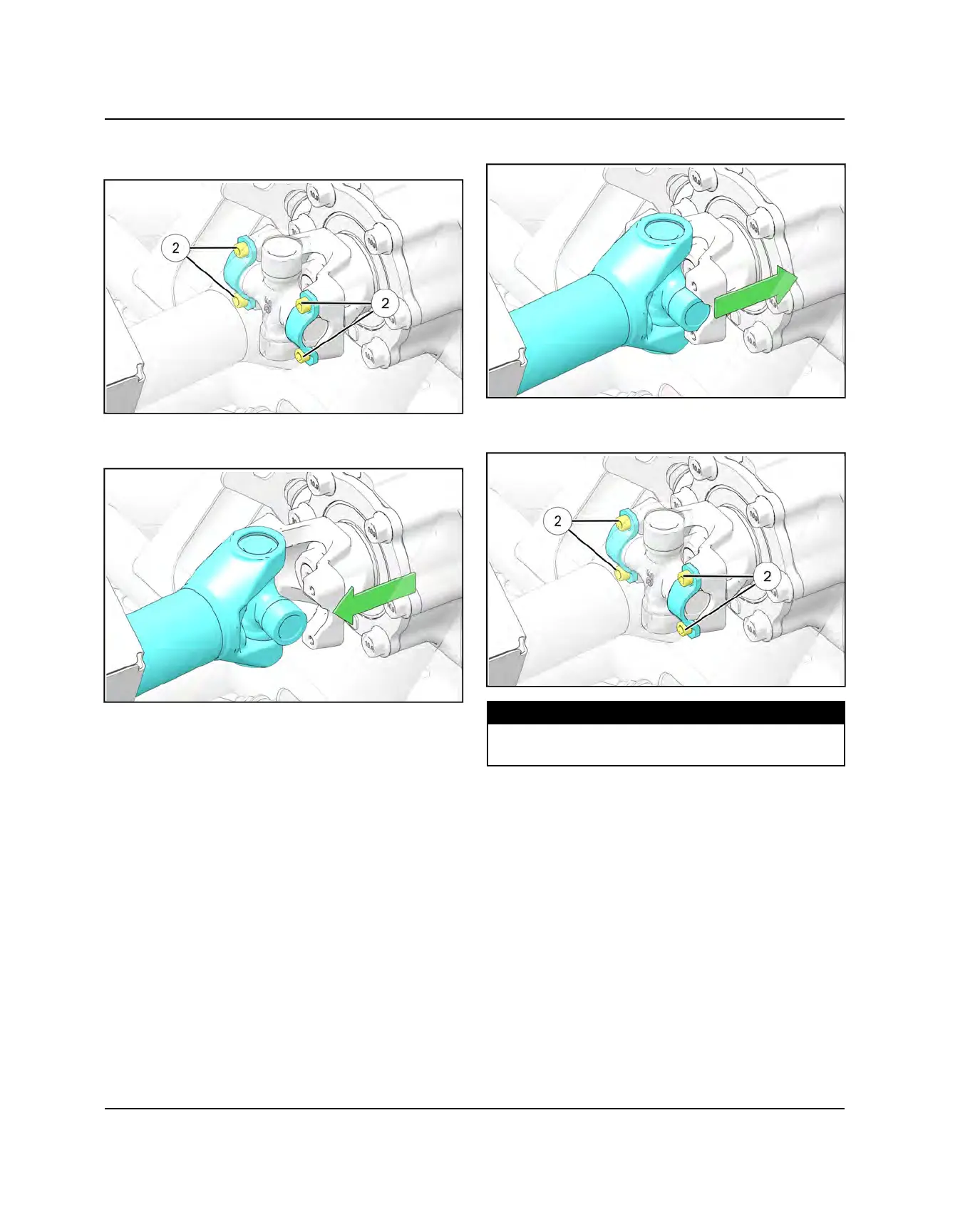

3. Remove four fasteners
w
retaining rear prop shaft U-
joint.
4. Pull prop shaft forward to disengage coupler from the
U-joint.
5. Pull prop shaft rearward to disengage slip-yoke from
transmission output shaft.
INSTALLATION
1. Install prop shaft onto transmission output shaft.
Grease front yoke/transmission output shaft upon
installation.
2. Install prop shaft U-joint into rear gearcase coupler.
3. Install brackets onto U-joint and torque fasteners to
specification.
TORQUE
U-joint Coupler Fasteners:
11 ft-lbs (15 Nm)
