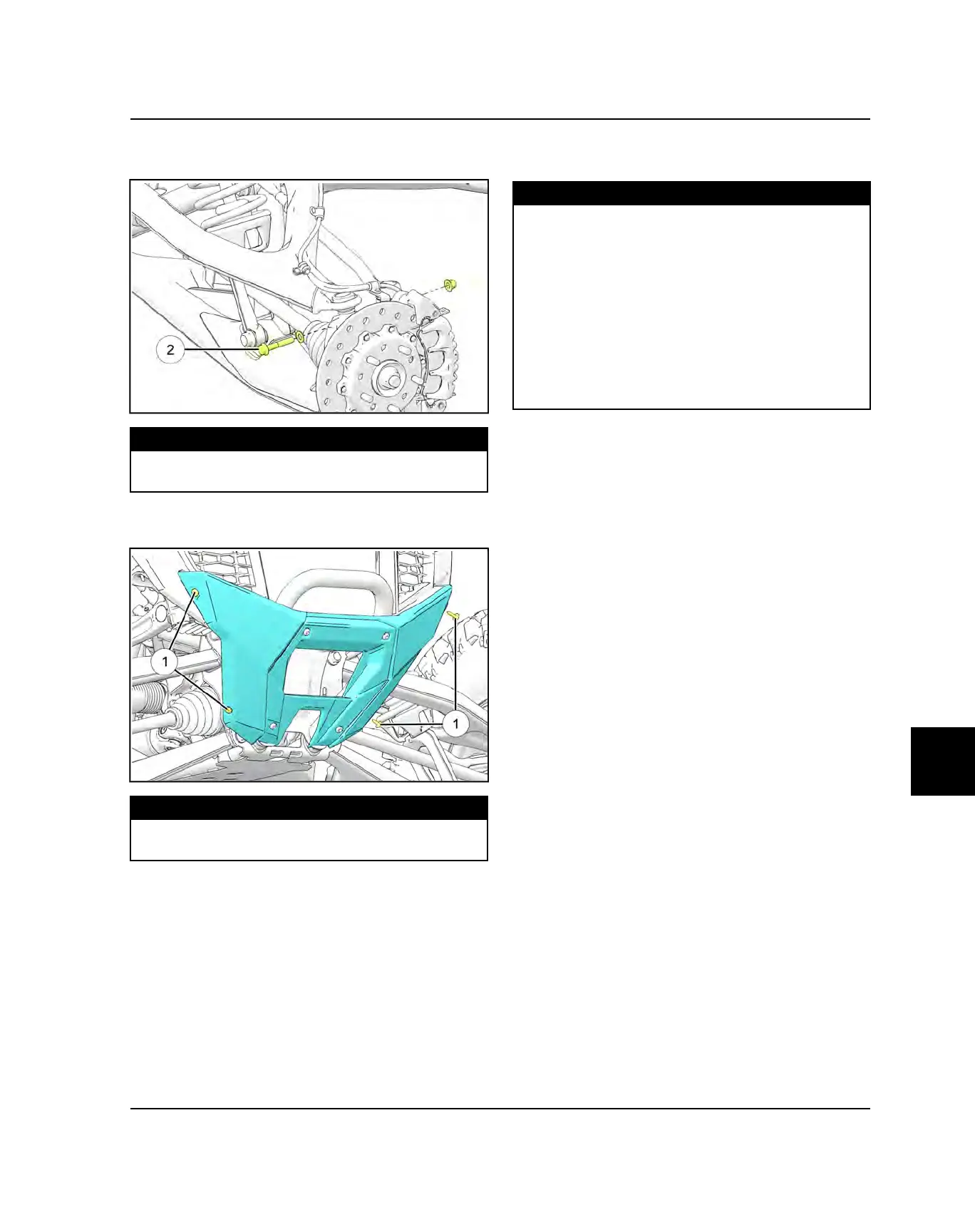

15.Install ball joint pinch bolt, washer, nut. Torque
fastener to specification.
TORQUE
Upper Ball Joint Pinch Bolt:
52 ft-lbs (70 Nm) - Torque bolt side
16.Install front fascia and four front fascia mounting
fasteners.
TORQUE
Front Fascia Fasteners:
7 ft-lbs (10 Nm)
17.Install upper and lower steering shafts. Refer to lower
steering shaft replacement outlined in this chapter.
TORQUE
Tilt Bracket Mounting Fasteners:
33 ft-lbs (45 Nm)
Front Coil Assembly Fasteners:
27 in-lbs (3 Nm
Coil Assembly Side Fastener:
27 in-lbs (3 Nm
Steering Wheel Nut:
66 ft-lbs (90 Nm)
Steering Shaft Bearing Fasteners:
22 ft-lbs (30 Nm)
Steering Shaft Pinch Bolt:
22 ft-lbs (30 Nm)
