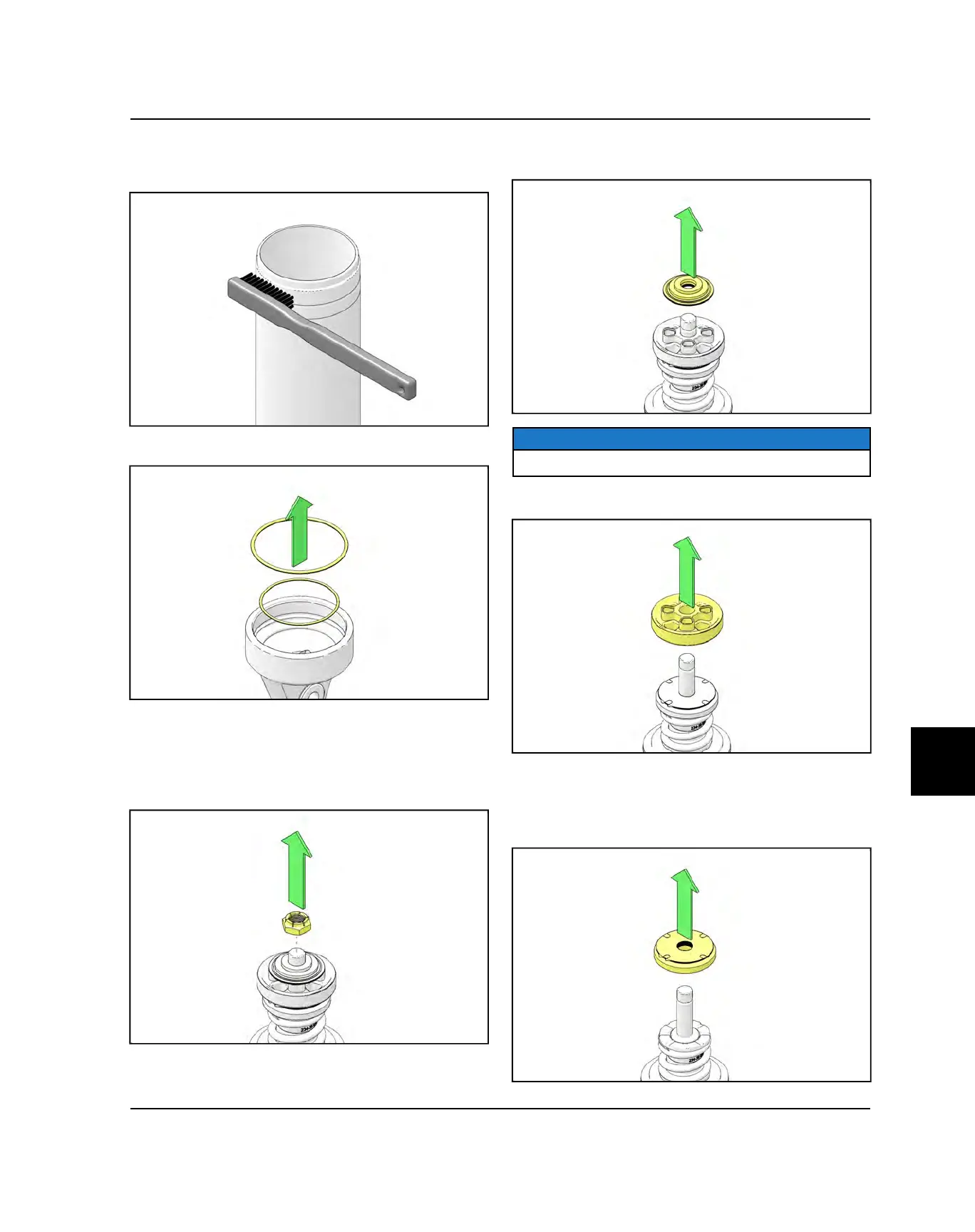

23.Use a wire brush, heat and a pick to remove any
Loctite residue left on body threads. Clean thoroughly
with contact cleaner and lint-free towel inside and out.
24.Remove both internal o-rings.
25.Use a wire brush, heat and a pick to remove any
Loctite residue left on body cap threads. Clean
thoroughly with contact cleaner and lint-free towel
inside and out.
26.Remove lock nut from the shaft assembly.
27.Remove rebound valve stack from the assembly and
cable tie together. Clean with contact cleaner.
NOTICE
Damping pistons are directional. Rebound side shown.
28.Remove damping piston.
29.Note the bleed shim orientation on compression valve
stack.
30.Remove compression valve stack and cable tie
together. Clean with contact cleaner.
