9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual

9.43

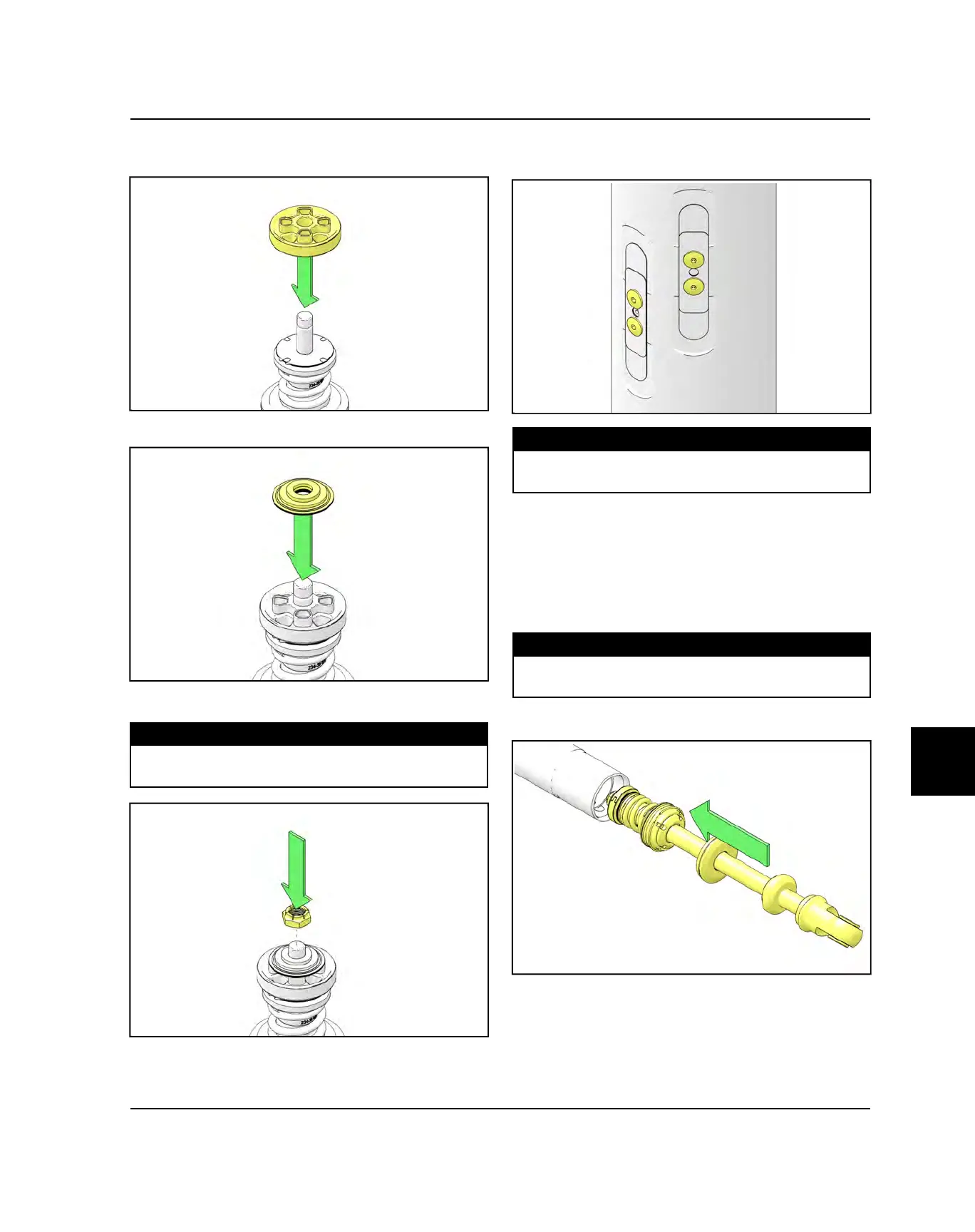

26.Install piston with compression port in-line with bleed

shim.

27.Install rebound valve stack.

28.Install shaft nut and torque to specification.

TORQUE

Shaft Nut:

22 ft-lb (30 Nm)

29.Install all Bypass check valves.

30.Use Loctite 242 (Blue) on bypass screws. Torque

bypass screws to specification.

TORQUE

Bypass Screw:

14 in-lb (2 Nm)

31.Install assembled internal body. Ensure that body is

seated properly in body cap.

32.Fill reservoir assembly with oil and install lubricated

IFP.

33.Ensuring oil level is above IFP, install bleed screw

with o-ring. Torque bleed screw to specification.

TORQUE

Bleed Screw:

14 in-lb (2 Nm)

34.Install shaft assembly into inner body.

STEERING / SUSPENSION
