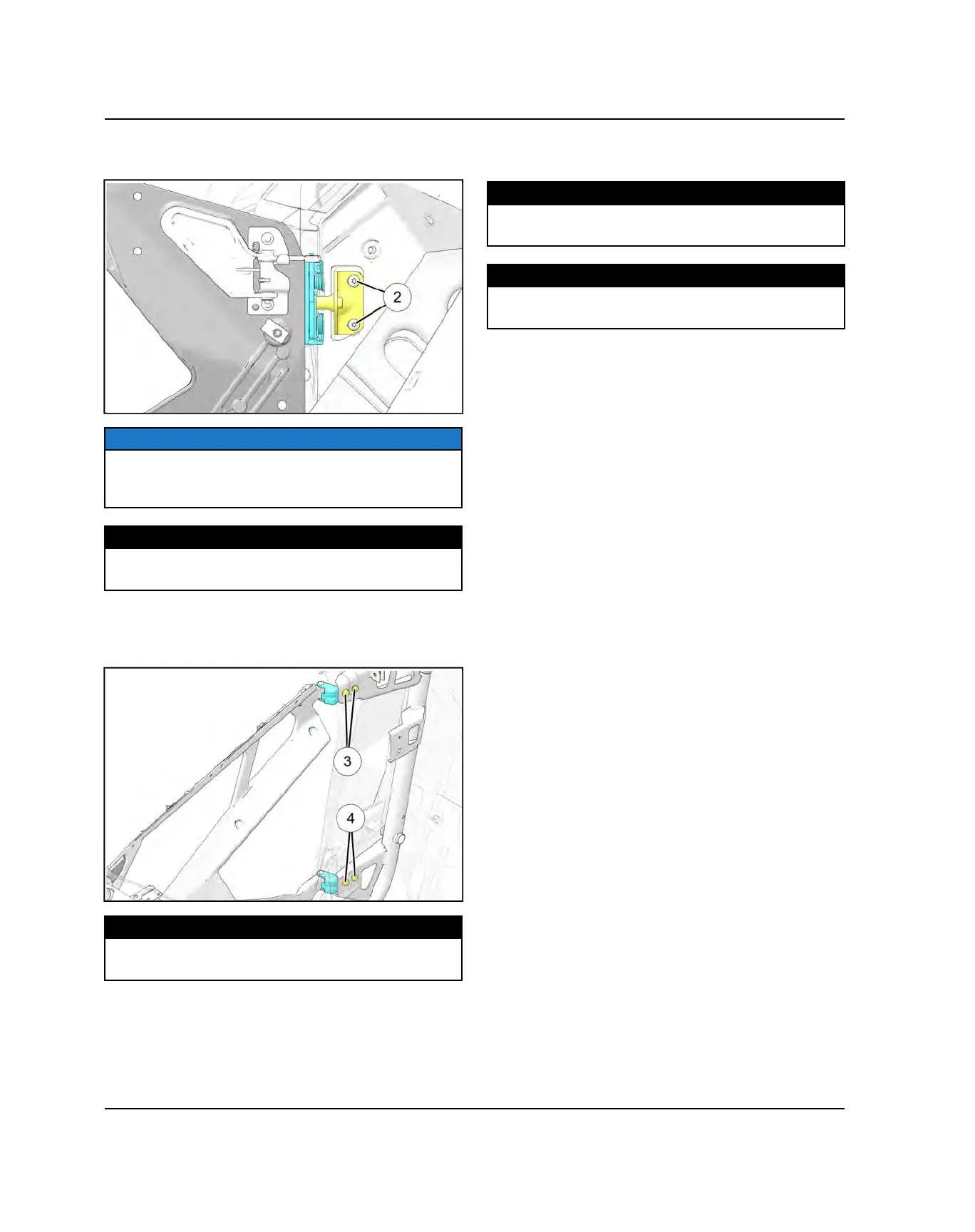

4. Adjust the door until the front latch is centered both
vertically and horizontally on the striker rod as shown.
NOTICE
If it is difficult to center vertically and horizontally, loosen
striker assembly fasteners
w
for extra adjustment.
Once aligned, torque striker fasteners.
TORQUE
Door Striker Fasteners:
7 ft-lbs (10 Nm)
5. Holding the door in position, tighten the top hinge
bracket fasteners
e
, and then the bottom fasteners
r
. Torque to specification.
TORQUE
Hinge Bracket Fasteners:
18 ft-lbs (24 Nm)
6. Install door panel onto the door frame. Torque
fasteners to specification.
TORQUE
Door Panel Fasteners:
35 in-lbs (4 Nm)
TORQUE
Door Trim Bracket Fasteners:
18 in-lbs (2 Nm)
BODY / FRAME
To Next Page
