12
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
12.31

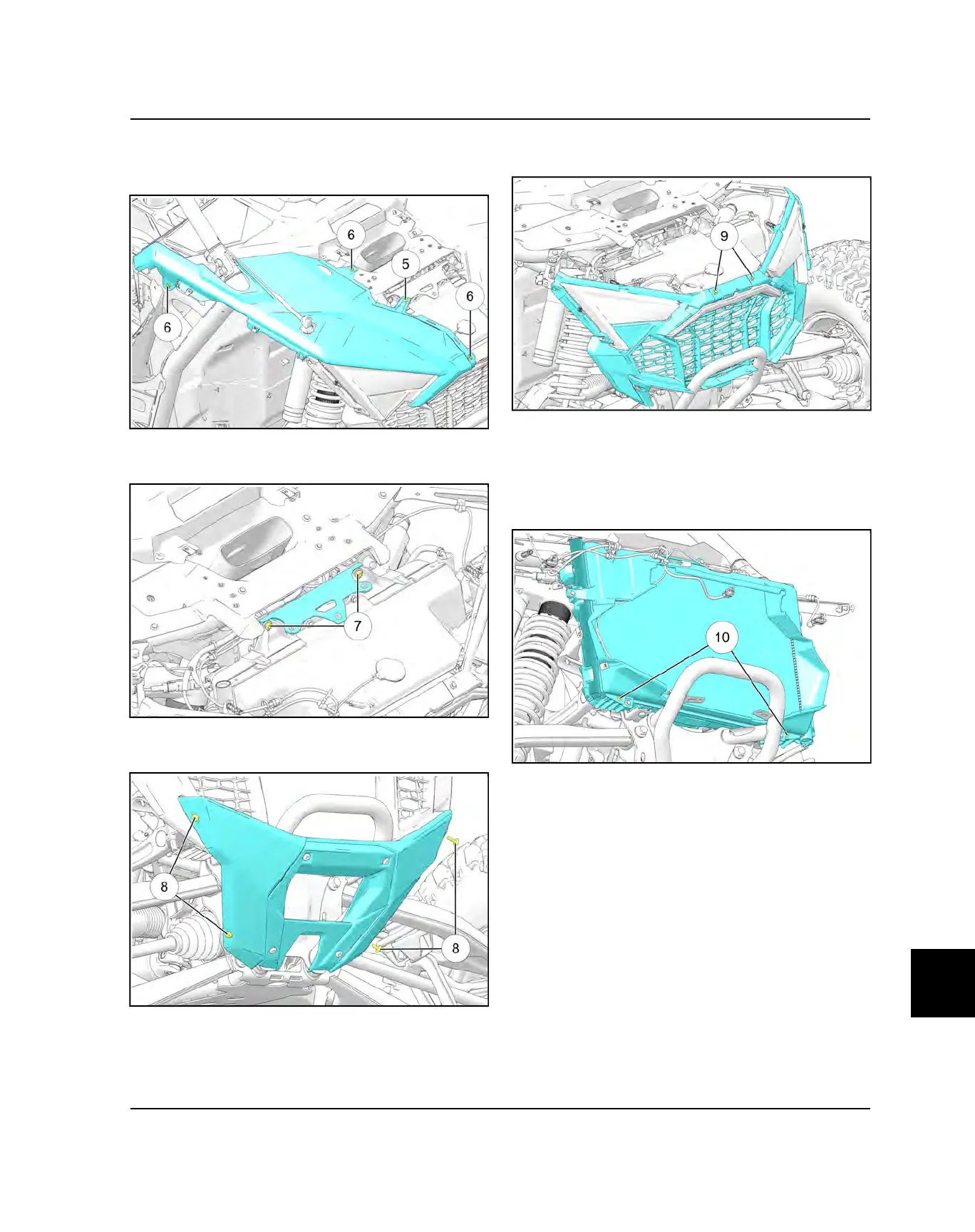

5. Remove one fastener
t
, three push-pins
y
, and
remove the front fender. Repeat for opposite side of
the vehicle. If equipped, disconnect antenna.
6. Remove two fasteners
u
and remove the fender
mounting bracket.
7. Remove four fasteners
i
and remove the front
bumper assembly.
8. Disconnect electrical connectors from the headlights
and accent lights, if equipped..
9. Remove two push-pins
o
and remove the front
fascia.
10.Disconnect coolant hoses from the radiator.
11. Disconnect electrical connector from cooling fan
assembly.
12.Remove two fasteners
a
retaining the radiator
assembly.
13.Disconnect any wiring from the radiator assembly.
14.Remove radiator, cooling fan and radiator shroud as
an assembly.
15.Remove push-pins to separate radiator from fan and
shroud assemblies.
INSTALLATION
1. Install new radiator onto cooling fan and shroud, and
install assembly mounting push-pins.
2. Mount radiator assembly onto vehicle chassis and
install radiator hoses.
3. Route and install wiring harness onto radiator
assembly.
ELECTRICAL
