Polycom, Inc. 44
User Registration Handset Registration and Subscription

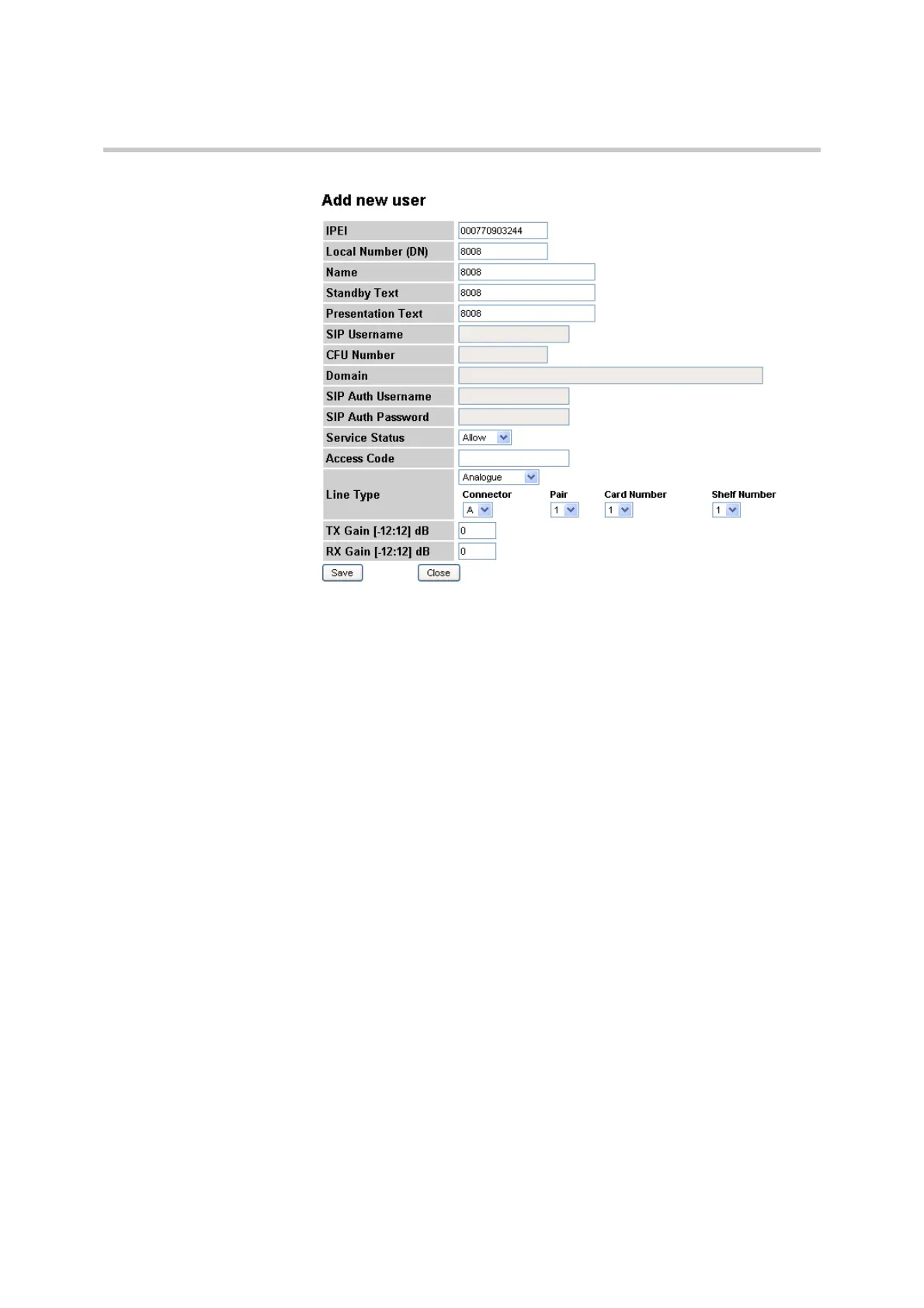

Figure 5-2 Add new Analogue User
2 In the IPEI field, type the IPEI number (serial number) of the handset. The
serial number consist of a five-digit handset type (manufacturer code) and
a seven-digit handset number.
a On KIRK 40XX handsets, press *99984*, and then press the Mute key to
read the IPEI number. The IPEI number is the one displayed on the
second line. Alternatively, look at the label for the serial number.
b On KIRK 50XX, 60XX and 70XX handsets press Menu, select Status and
then select Firmware version to display the IPEI number.
c Alternatively, you can go to the Debug menu and set the trace level to
1, and then try to subscribe the handset. The subscription will fail, but
the handset IPEI will be displayed in the Trace window.
3 In the Local Number (DN) field, type the direct number of the handset.
The number must match the number of the attached PBX line. Typing a
direct number makes it possible to send an MSF to the handset.
4 In the Name field, type the name of the handset as it appears in the
database. This field is optional.
5 In the Standby Text field, type the text that is displayed when the handset
is on hook.
6 In the Presentation Text field type the text to be sent to the caller, in case
internal generated CLIP is enabled and the PBX does NOT send CLIP on
analogue lines. It is also sent to a DECT-to-DECT phone, but not to a SIP
user.
7 From the Service Status list select Allow in order to activate the user
services. In case you want to disable the service status, select Disable.
To Next Page
