4.6 Connecting the sample
Use new tubes for connections during installation
• Exterior ∅: 6 mm exactly (or ¼'')
• Material: polyethylene or PTFE or FEP
• Pressure: 0.2 to 6 bar
• Temperature: 5 to 50°C
At this stage of the installation, make sure that the flow valves (2) are all closed.
Connect the tubes by inserting into the quick release connections found under the sampling
block as illustrated in Figure 8 below.

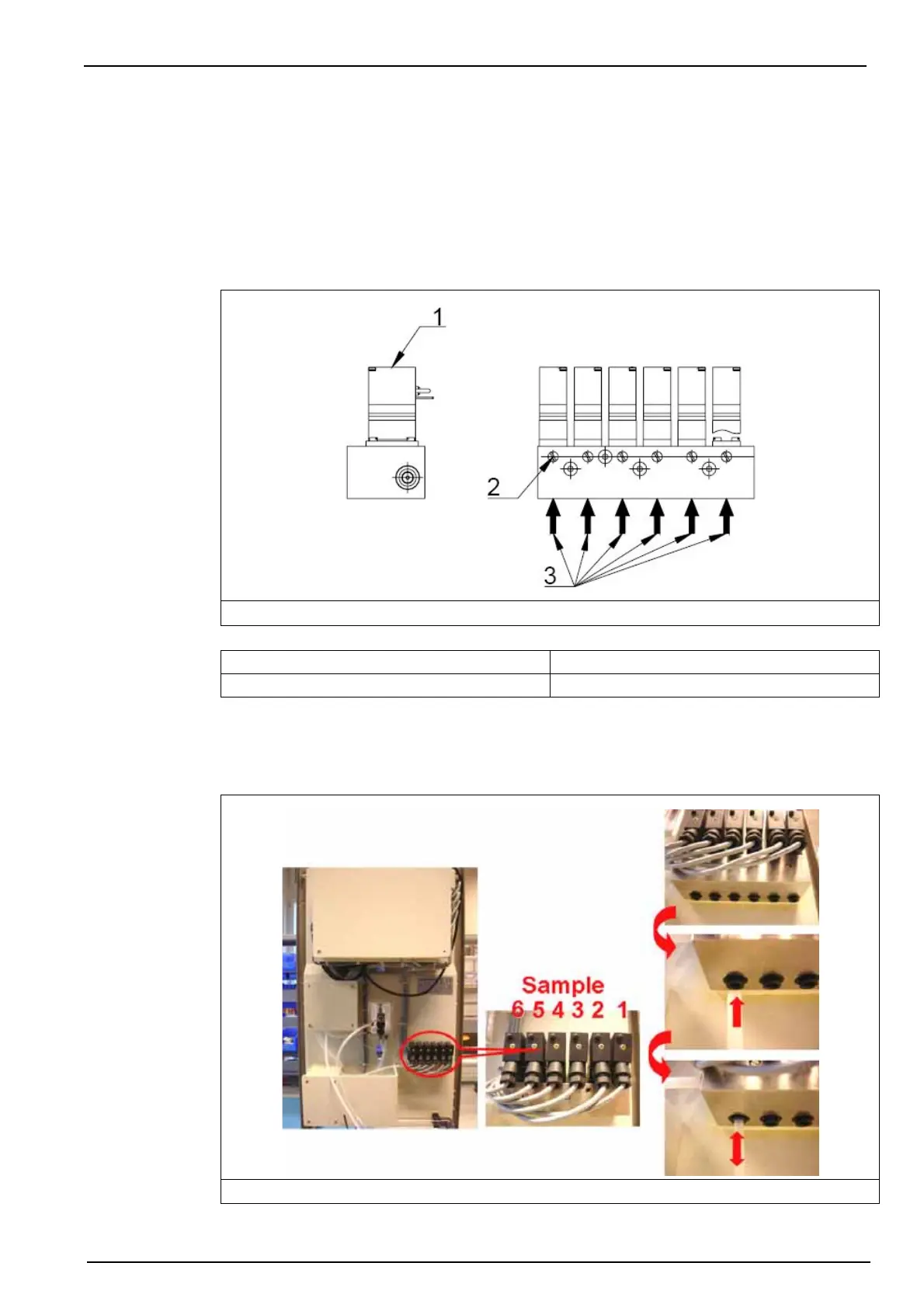

Figure 7 Sample connections schematic
1 - Solenoid valve 3 - Sample input 1 to 6
2 - Solenoid valve flow adjustment screw
Figure 8 Sample connections
