User Setup

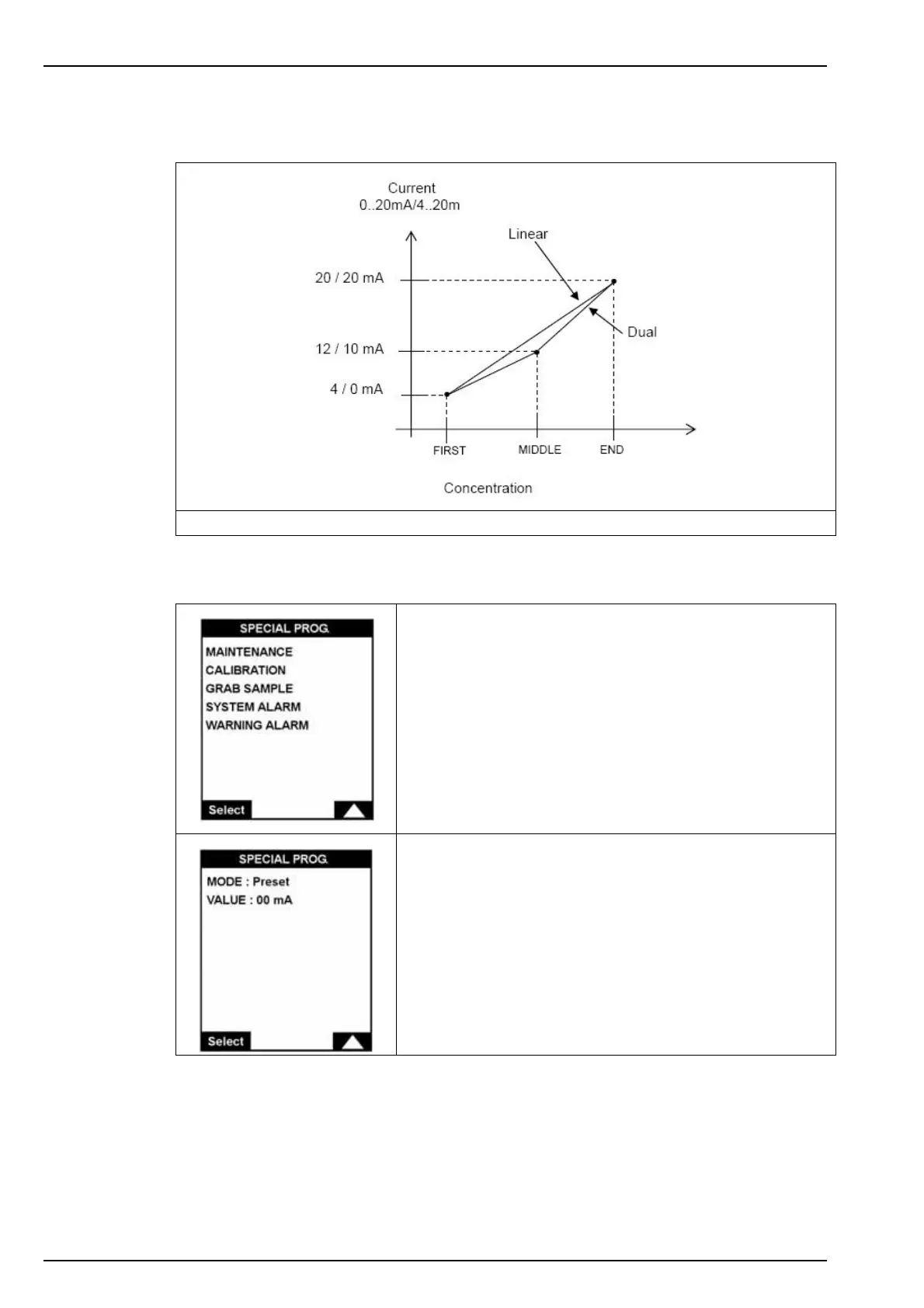

The following graph indicates the result of the 4-20 current in relation to the type, and the first,
middle and end value of the scale.
7.3.2 Special programming
Note: In the case of a system alarm, all the analog outputs (1 to 7) are set to the preset value defined in the
SYSTEM ALARM option.
Figure 14 Linear and dual slopes
This option lets you program the status of analog output 7 for
the following special events:
• Maintenance
• Calibration
• Grab sample analysis
• System alarm
• Warning alarm
Use the Select function to choose the event for which analog
output 7 is to be assigned.
MODE = Last: Analog output 7 is not changed.
MODE = Preset: Analog output 7 is set to the value defined in
the VALUE parameter.
