Installation
4.10 Input/Output connections
To gain access to the I/O connections, open the back of the local controller box by unscrewing
the 4 corner screws.

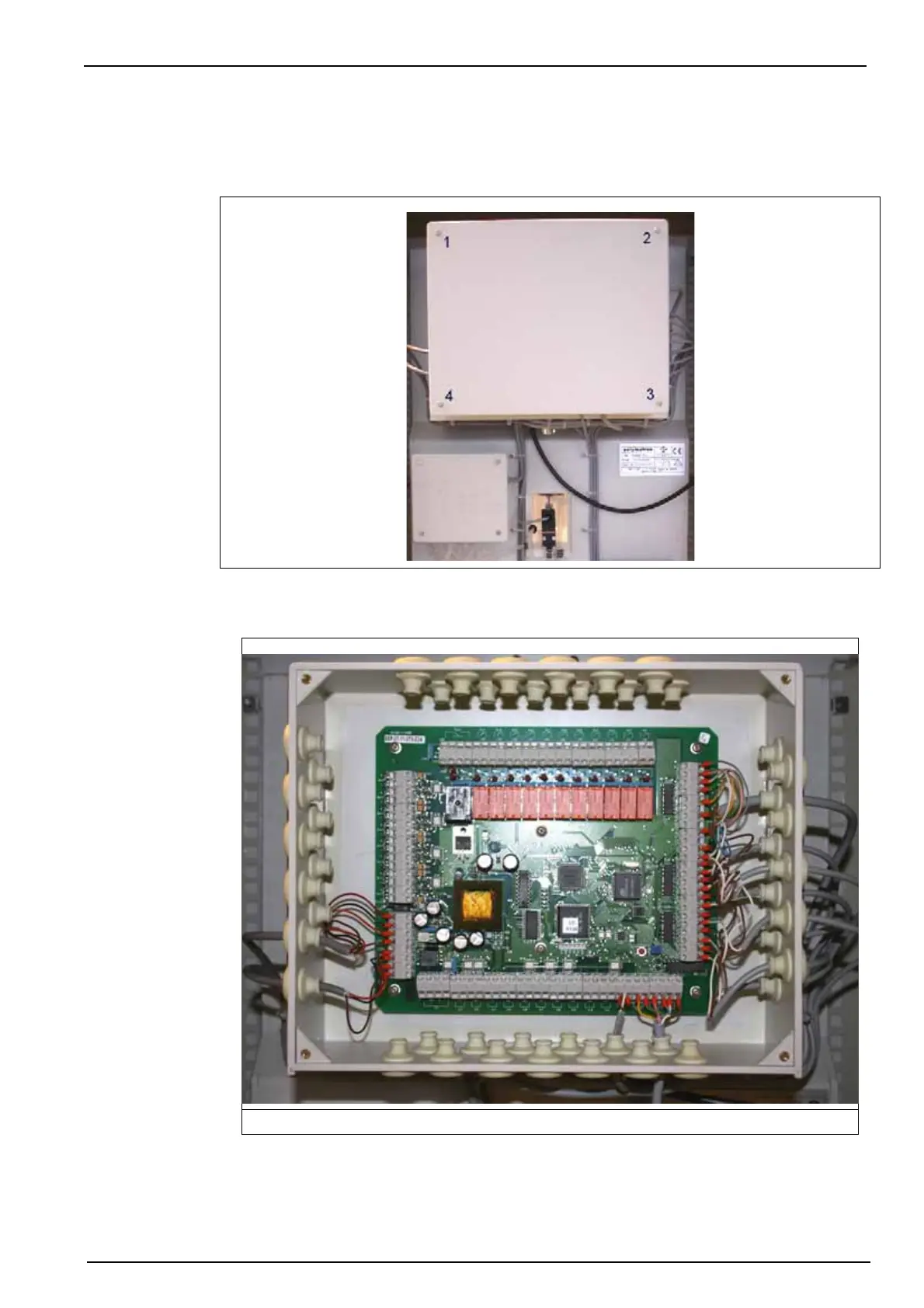

This will reveal the I/O board as illustrated in Figure 10 (which shows connections already in
place).
Figure 10 Local controller connections
