pinched excessively as this can degrade
the optical signal. Cables can be bundled
together and routed for ease of installation
whenever possible. Ensure to clip all extra
length from tie-wraps once they have been
secured.

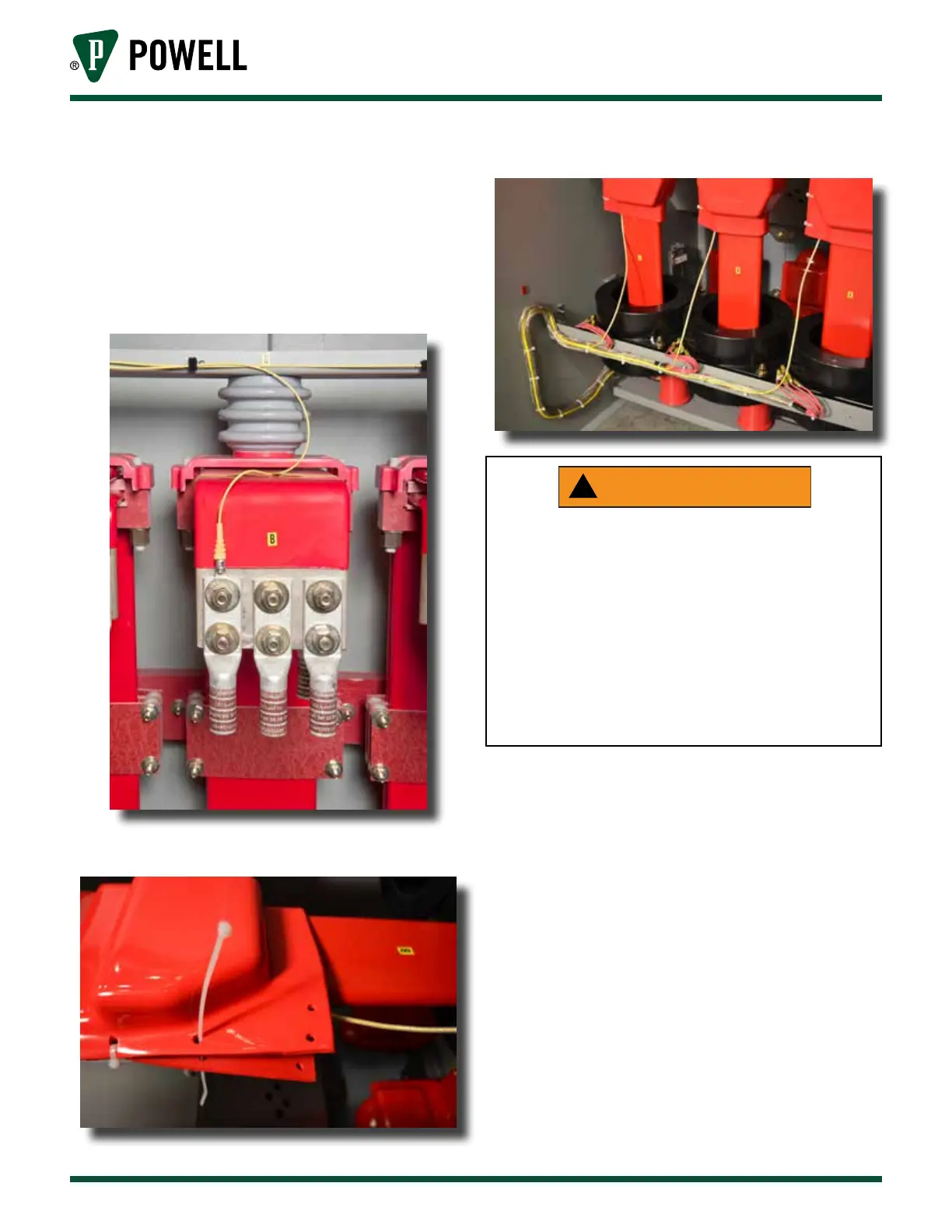

Figure 15 Electrical Tape Installation
Figure 16 Tie-Wrap Secured Over Fiber
Figure 17 Completed Fiber Installation
Do not fasten or attach ANY mounting
hardware (tie-wraps, etc.) to at least a 30 cm
(12”) length of fiber between the portion of
the probe at high voltage and its first non-
energized point of contact. This section of
suspended fiber provides increased dielectric
strength to the probe and therefore must be
left unsecured and ungrounded. It is good
practice to maintain more than 30 cm (12”) of
suspended fiber, but not required.
!
