Appendix B

01.4IB.48041

BriteSpot® Plus

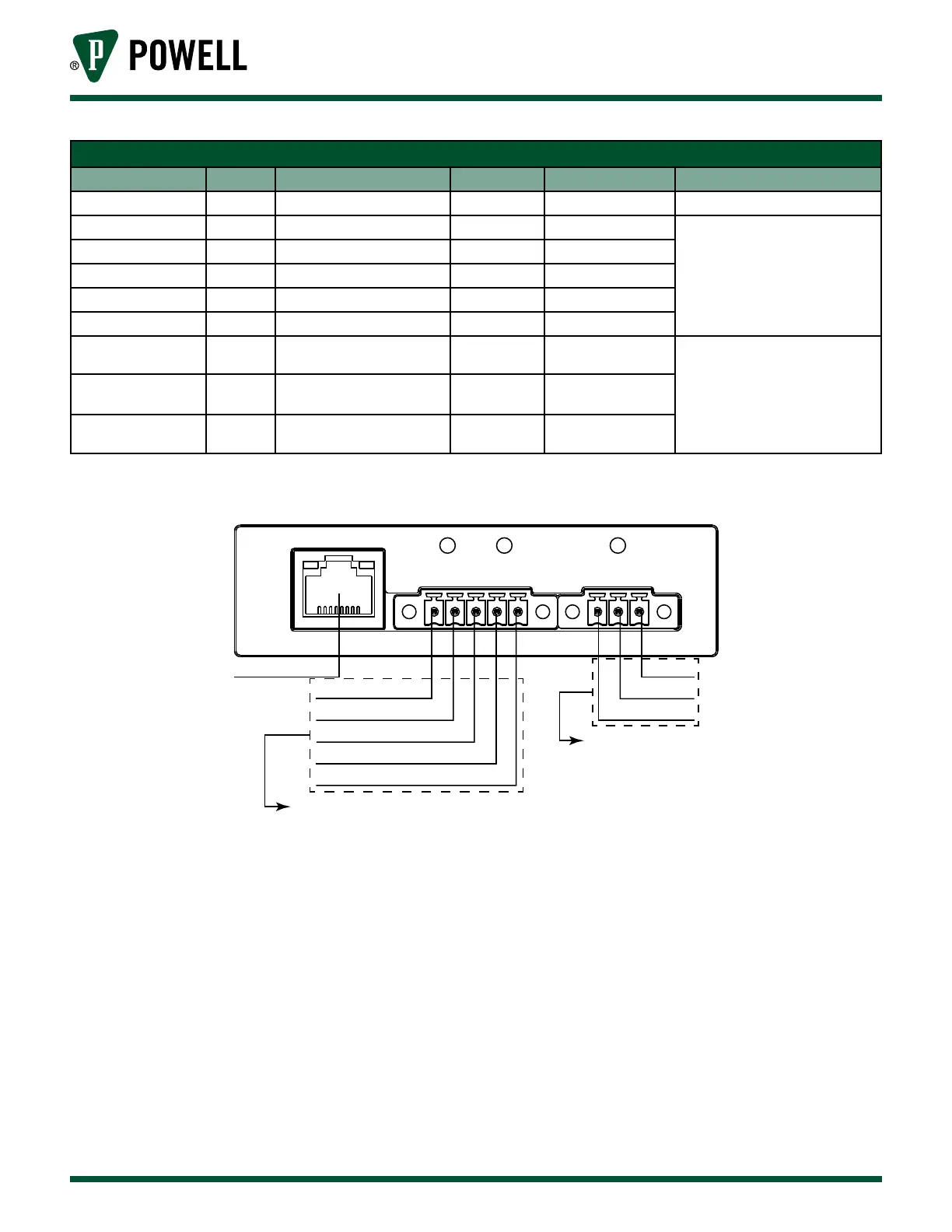

Table Y COM 1 Wiring Recommendations

Terminal Number Name Function Wire Gauge Wire Type Notes

Ethernet Ethernet Ethernet - CAT5 Standard RJ45

1 Gnd Gnd of auxiliary power 22 Twisted Shielded

Typical RS-485 2-Wire Belden

3105A cable or similar

Replacement connector,

Phoenix Contact part:

1827732

2 +12 +12V of auxiliary power 22 Twisted Shielded

3 A RS-485 A 22 Twisted Shielded

4 B RS-485 B 22 Twisted Shielded

5 Ch Shield 22 Twisted Shielded

6 A RS-485 A 22 Twisted Shielded

Typical RS-485 2-wire Belden

3105A cable or similar

Replacement connector,

Phoenix Contact part:

1827716

7 B RS-485 B 22 Twisted Shielded

8 Iso Shield 22 Twisted Shielded

Figure 67 COM Card 1 Wiring Diagram

1 2 3 4 5 6 7 8

To Network

Auxiliary GND

Auxiliary +12V

RS-485 A

RS-485 B

Shield

RS-485 B

RS-485 A

For Powell Peripheral Devices

To Server SCADA
