X8 | SERVICE MANUAL
INDEX
SD Card Removal:
Extraction of the SD Card can be done by removing the
amplier’s cover, locating the SD card on the side of
the DIGI Board, and simply pressing on it, releasing the
spring mechanism.
Remove the lter and soak it in a mild soap and cold water solution, rinse it and let it dry thoroughly.

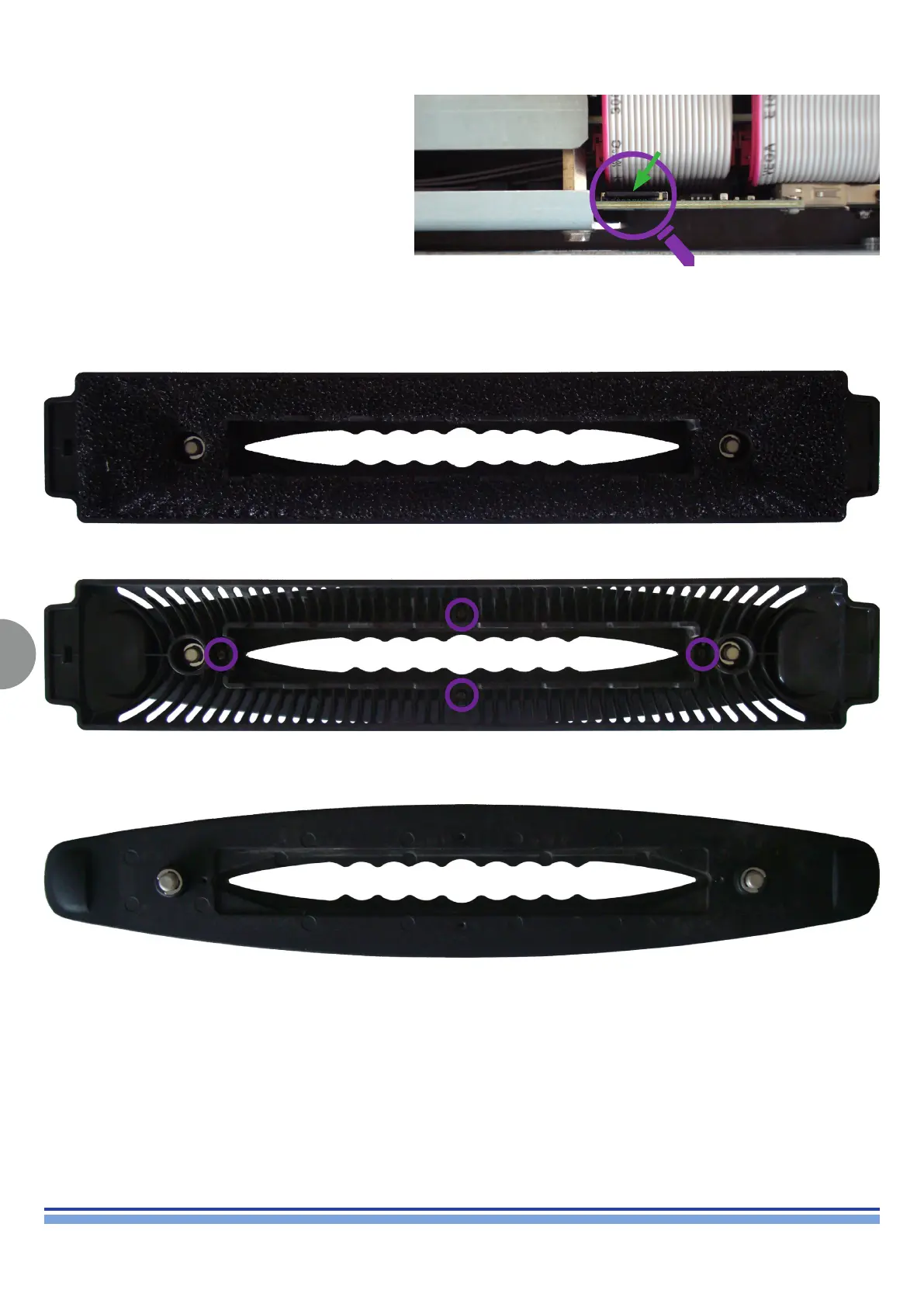

Highlighted on the picture below are the 4 2.5 mm Hex Screws that need to be removed in order to detach the front panel from the grille.
The front panel is now detached from the grille, in need of replacement, pry off the E Rings with a pair of long needle nose pliers and re
set the hex screw on the new panel.
7. Front Panel Disassembly
(Fig. 19)
