X8 | SERVICE MANUAL
INDEX

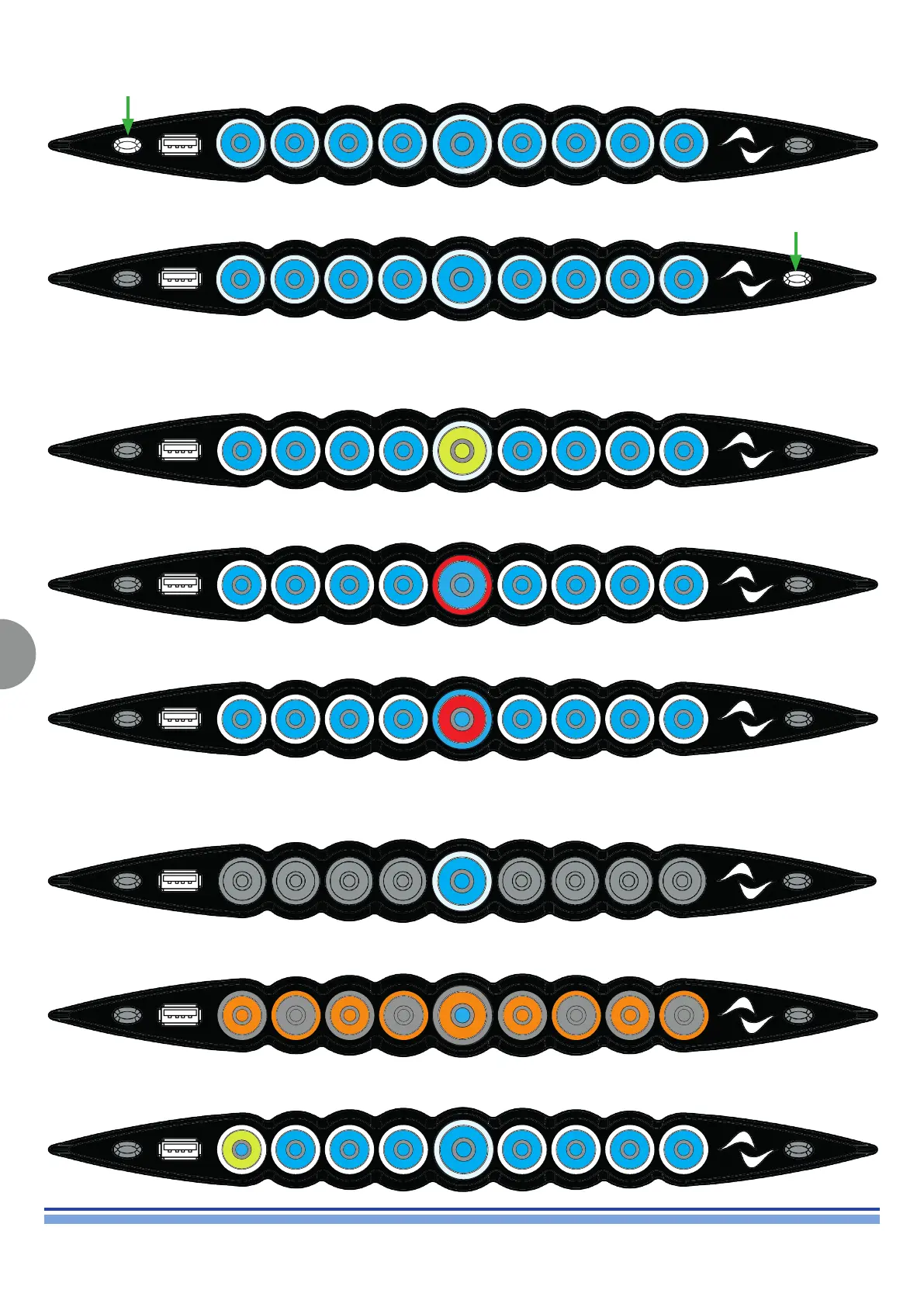

FAULT CONDITIONS LED CONFIGURATIONS
Pulsing YELLOW Centre LED: Power supply temp. > 70°
7
Pulsing WHITE LED: WiFi Network ON or USB port in use
Solid ON White LED: WiFi Network ON and USB port in use
5
Solid ON White LED: Amp is connected to Armonía
6
Pulsing RED Ring LED (10 sec.): AMP Fan is faulty
8
Pulsing RED Centre LED (10 sec.): PSU Fan is faulty
9
Swiping ORANGE Ring and Centr LEDs (all - latest FW Versions): Firmware is not installed // ADLINK or DIGI boards problems
11
Solid ON BLUE Centre and Ring LED (old FW Versions): Firmware is not installed // ADLINK or DIGI boards problems
10
Solid ON YELLOW Centre LED: User Limiter - Set by the user
12
After 10 seconds in this condition, the Amplifier begins the Shutdown Procedure.
