X8 | SERVICE MANUAL
INDEX

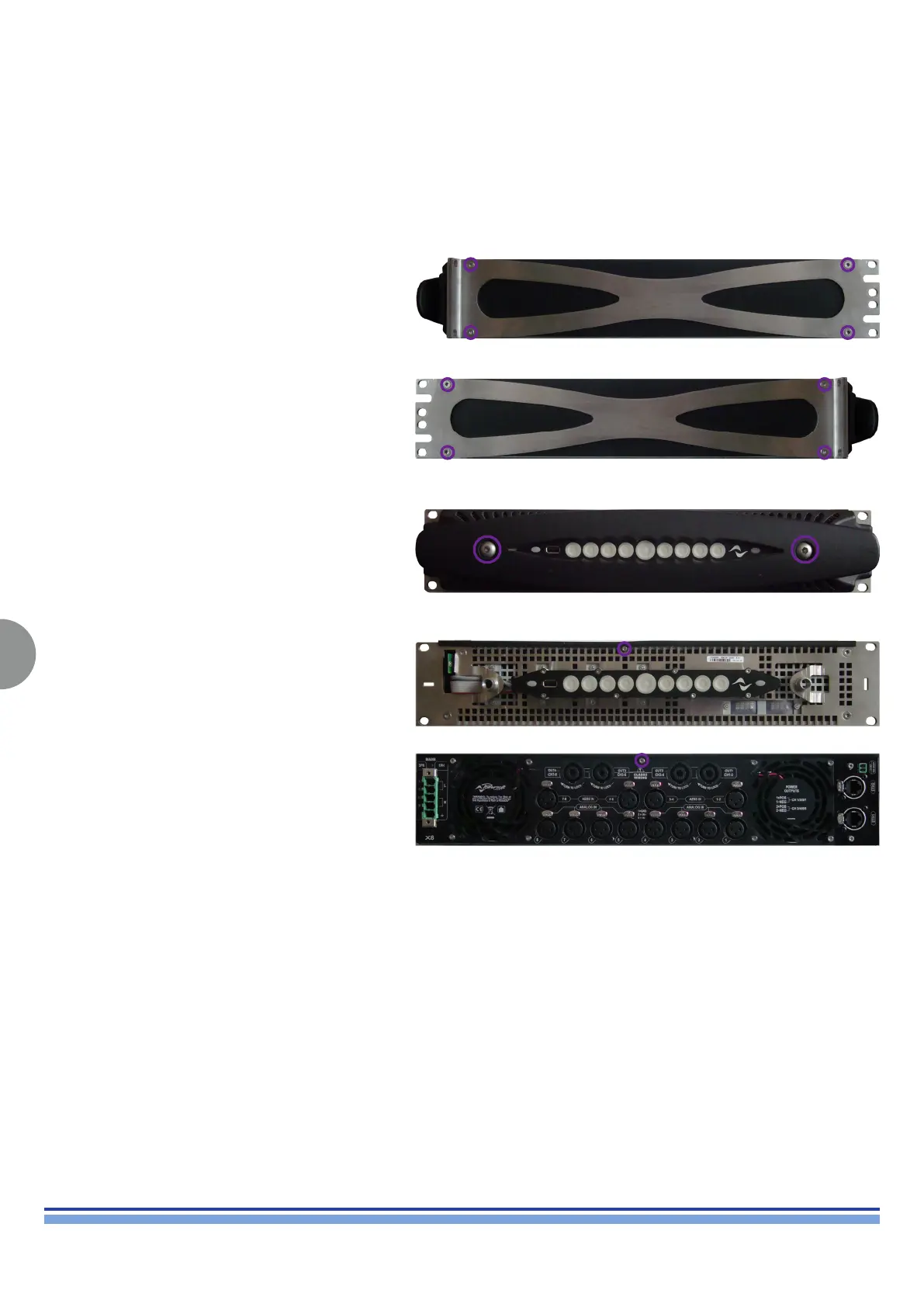

1. Removing the Amplifier’s Cover
By means of a Torx T20 Screwdriver, remove all 8 screws
holding the side panels highlighted on (Fig. 1, 2).
(Fig. 1)
(Fig. 2)
Remove the front panel by unscrewing the two highlighted
Hex screws with a 6 mm Hex Screwdriver. (Fig. 3)
(Fig. 3)
By means of a T10 Torx Screwdriver, remove the 2 screws
highlighted on (Fig. 4, 5).
(Fig. 4)
(Fig. 5)
Gently lift the top cover.

powersoft X8 Specifications

General

Channels	8
Signal to Noise Ratio	> 112 dB
Damping Factor	> 5000
Power Supply	Universal switching power supply (100-240V, 50/60Hz)
Networking	Ethernet
DSP	Yes, with FIR filters
Load Impedance	4Ω, 8Ω
Input Impedance	20 kΩ balanced
Cooling System	Variable speed fan
Frequency Response	5 Hz - 30 kHz
