2.1.3 Required tools

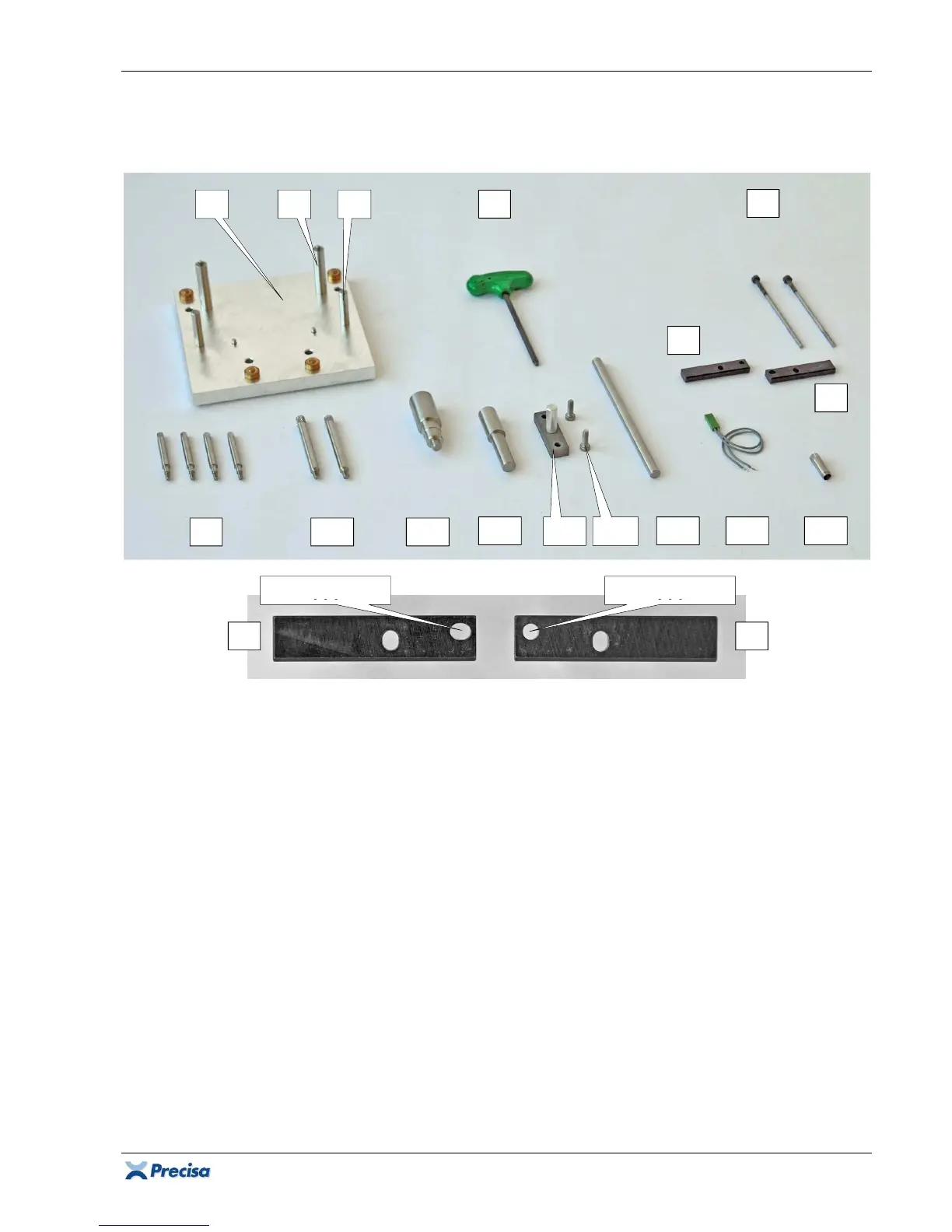

2.1.3.1 Tool kit 350-8537
Pos. Pcs. Item number Item
1 1 W 41-1688 Mounting plate
2 2 W 41-1688-5 Support post long
3 2 W 41-1688-6 Support post short
4 1 350-6203 Screwdriver Torx M4
6 2 PW 29.43.300 Pin for flexure holders
7 1 W 41-1700 Assembly jig with slotted hole
8 1 W 41-1701 Assembly jig with round hole
9 4 W 41-1677 Assembly pin for assembly jig
10 2 W 41-1691 Centring spigot for flexures
11 1 W 41-1774 Centring spigot for coil, 360/321
12 1 W 41-1675 Centring spigot for coil, 320/330
13 1 W 41-1674 Coupling anchor
14 2 PN 1100-172 Screw cyl. Torx M4x12
15 1 W 41-1699 Alignment jig
16 1 W 41-1578-8 Connecting cable
17 1 W 41-1681 Centring bush
4
7
6
7
8
9
10
11
12
15
16
17
1 2 3
14
13
8
Slotted hole
111
Round hole
111
