360 Repairs
45

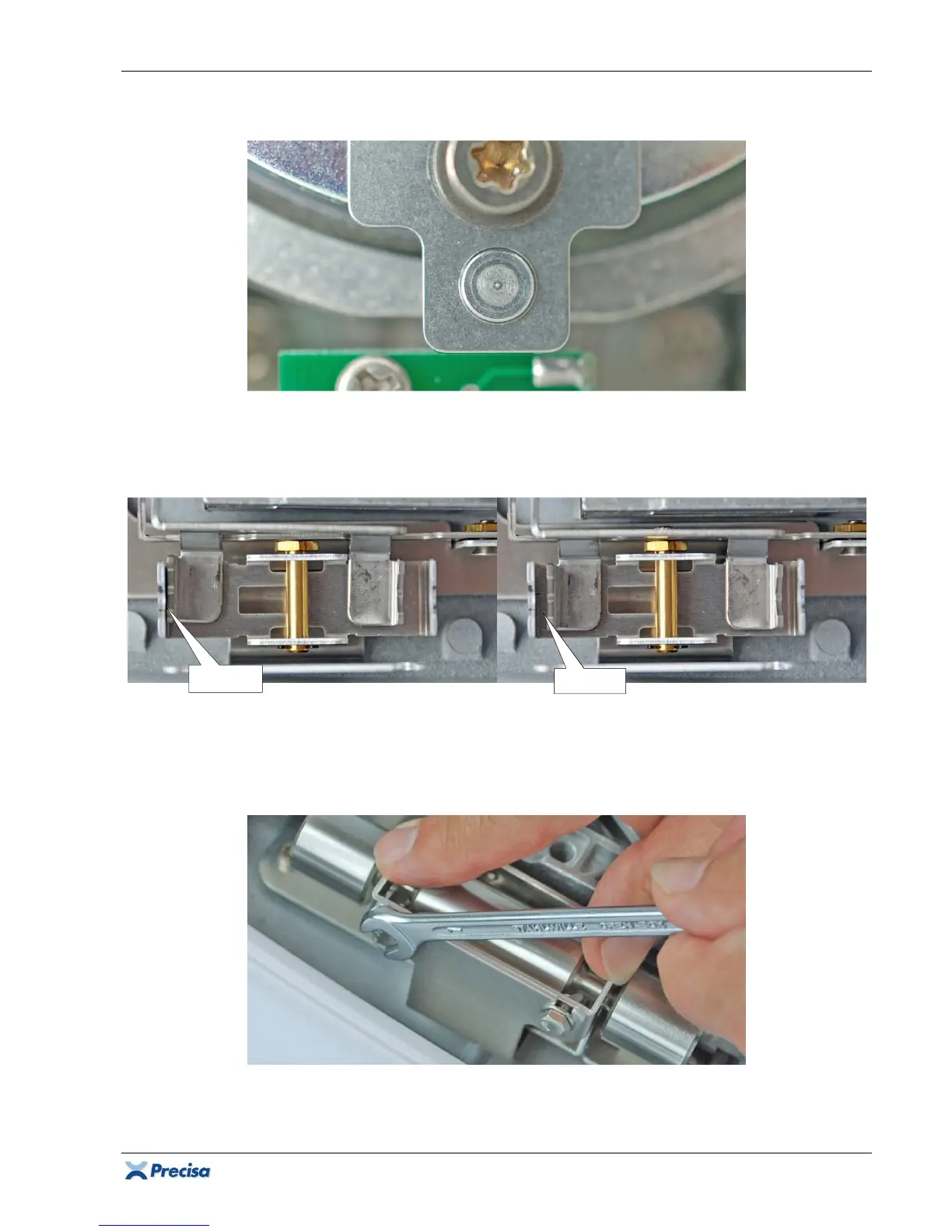

2.8 Installing the weighing cell into the housing‘s bottom
1. Carry out a further movement check with the lens on the balance arm. The balance arm must
not touch the transport safety device (17)!
2. Place the weighing cell carefully into the housing‘s bottom. Hold the cell only on its chassis!
3. Tilt the housing‘s bottom to the side and fix the weighing cell from below with the 3 nuts (30).
Ensure it is well aligned before tightening the nuts!
SCS only:
The reference weight bearings (19)
and (20) must not touch anywhere!
4. Connect the floating sensor (10) to the main board.
5.
SCS only:
Insert the internal reference weights and mount the counterholders. The
counterholders have to rest fully on the reference weights, impeding them to move.
Wrong!
