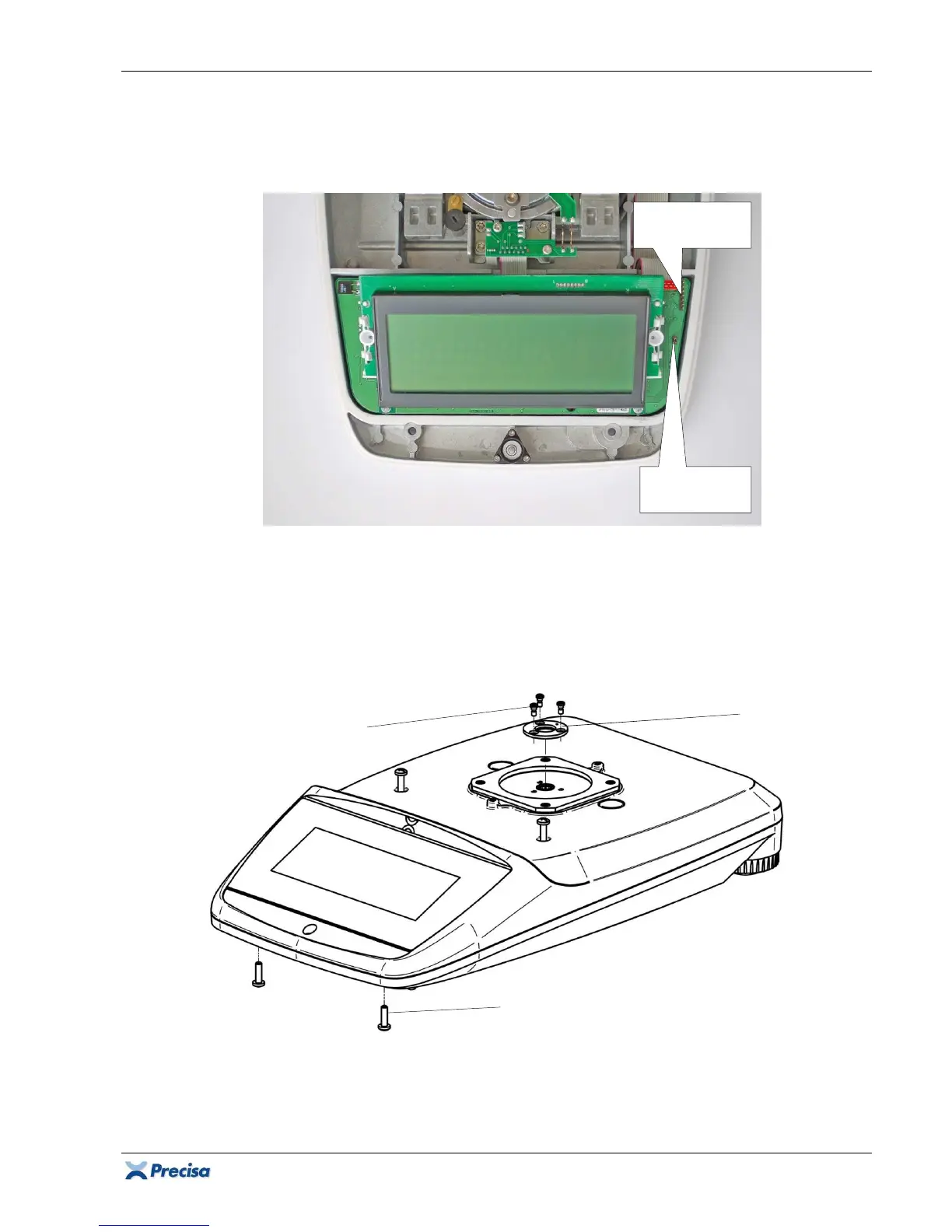

3.7 Closing the balance
1. Disconnect the balance from the mains (unplug the power adapter).
2. Remove the weighing pan and the pan holder.
3. Ensure the Jumper J1 is set and the membrane keypad is connected to the pin header S3.
4. Ensure that both, the display and the glass of the housing's top are clean.
5. Place the housing's top on its bottom and fasten together with the 3 screws (2 screws cyl.
Phillips M4x25 above the display and 1 screw cyl. slot M4x12 nearby the bubble level).
6.
IP65 only:
Fix the housing with the 2 screws cyl. countersunk M4x14. Fix the membrane carefully
with the clamping ring and its 3 screws IP65 without causing any wrinkles on the membrane.
7. Put the pan holder, the weighing pan and, if present, the draft shield on the balance.
Pin header
for jumper J1
Pin header S3
for keypad
Clamping ring
2 Screws cyl.
