2.3 Removing the weighing cell from the housing‘s bottom
1. SCS only: Release the 2 screws of the left counterholder and remove it with the reference weight.
2. Do so with the right part of the reference weight module, too.
3. Unplug the floating sensor (10) carefully from the main board.
4. Turn over the housing‘s bottom and unscrew the 3 nuts (30) on the underside of the balance's
bottom.
5. Hold the weighing cell only on the chassis and lift it out of the housing's bottom.
6. The chassis can now be placed on the assembly plate for easier handling.

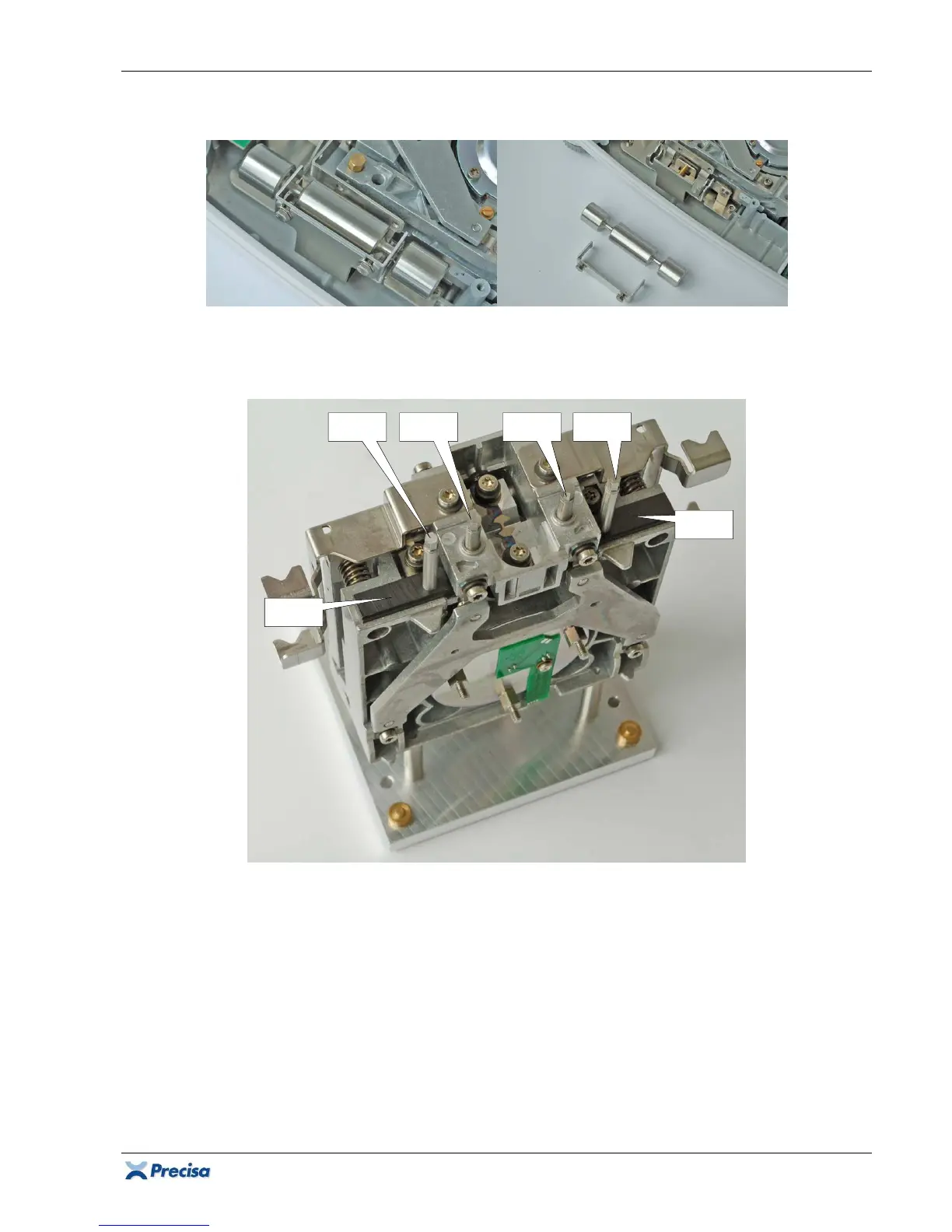

7. To protect the weighing cell, fix both assembly jigs [7] and [8] with the 4 assembly pins [9].
Important: The assebly jig with the slot hole [7] is on the left side!
[7]
[9]
[9]
[9]
[9]
[8]
