2.7.3 Assembling the floating sensor and the stopper

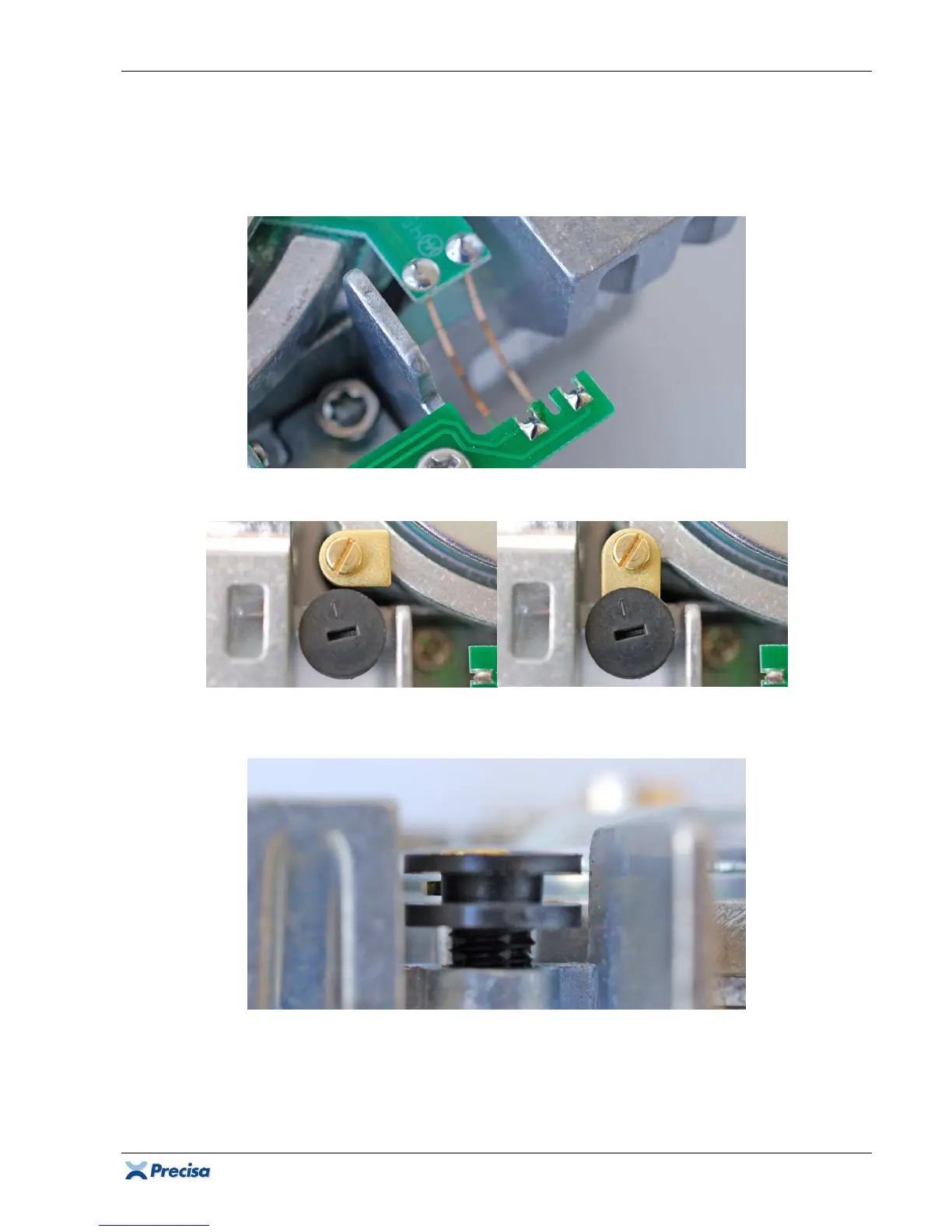

1. Press the floating sensor carefully into the cutout of the chassis in the direction of the pot and
fix it to the chassis with 3 screws (24).
2. Fix the connection board (11) onto the chassis with the screw (21).
3. Solder the two connection wires (1) parallelly and strain-freely to the connection board.
4. Turn back the stopper by 90° and tighten it with its brass screw.
5. The stopper has to be free of play and lie centrally in the symmetry screw (18). If necessary,
adjust the symmetry screw.
