360 Adjustments
51
Procedure
1. Ensure the balance is levelled and set to the factory mode according to chapter 3.2.
Rough adjustment having diagonal differences ≥ ±35d:
2. Place the weight on C, tare the balance, slide the weight to A and calculate the difference:
∆AC = A-C = A-0 = A [d]; (C = tared = 0);
Example:
∆AC = A = +68d.
3. Place the weight on D, tare the balance, slide the weight to B and calculate the difference:
∆BD = B-D = B-0 = B [d]; (D = tared = 0);
Example:
∆BD = B = -57d.

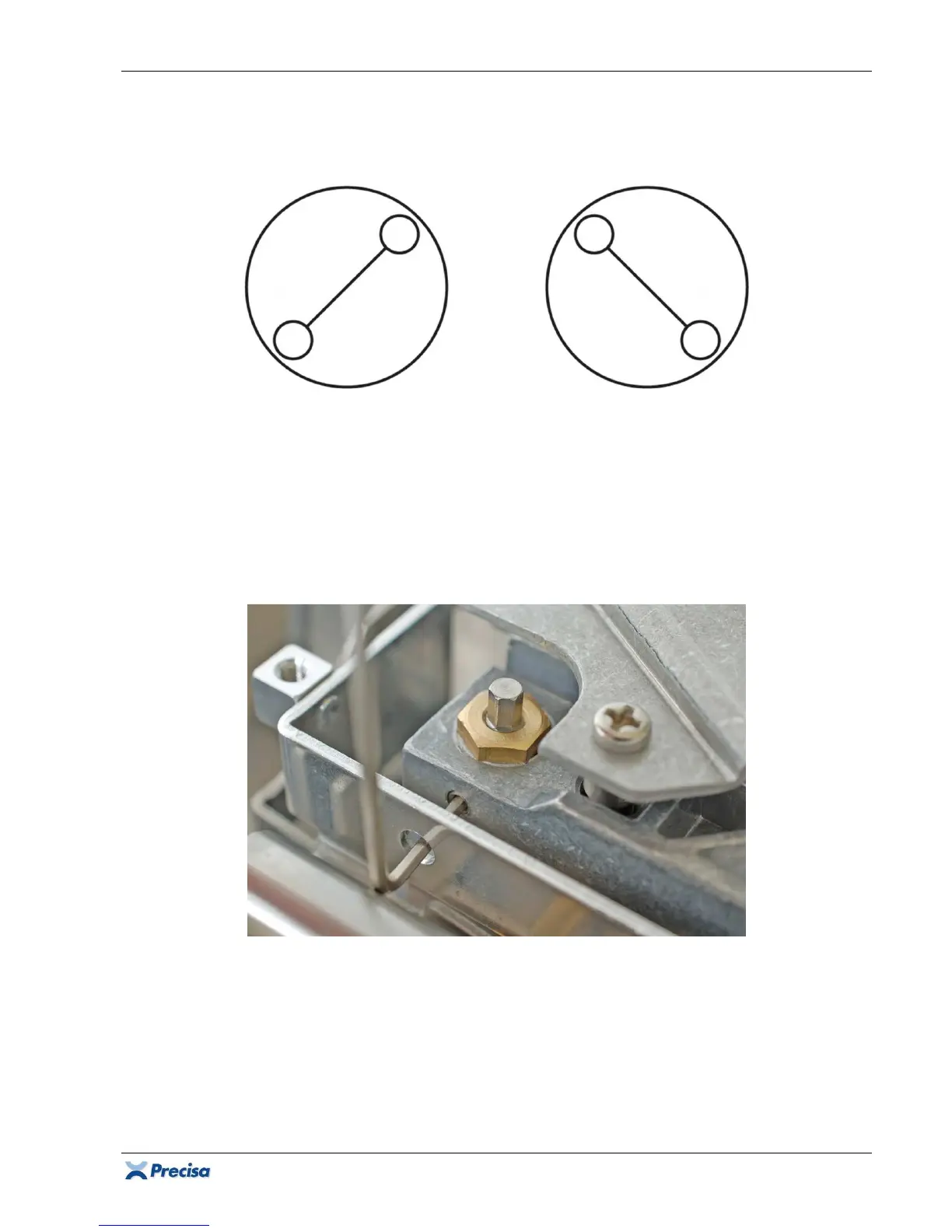

4. Release the holding grub screws of the outer corner load screws by means of a hexagon key
1.5mm:
Important:
Start adjusting the diagonal with the larger difference!
5. The difference of the diagonal A-C is larger and positive (+68d). Turning the outer corner load
screw 1 clockwise
shifts the difference in negative direction (+68 .. +67 .. +66 ..).
Important:
Co-turn the inner corner load screw, ensuring its thread stays at its upper end in the outer
corner load screw!
