8-10
8.8 5017SC
The 5017SC is equipped with a 40 channel scanner, that allows to connect up to 80
channels 1-pole to the 5017SC. The connection is provided through the two 50-pole
Sub-D connectors on the rear panel of the 5017SC.
Please refer to chapter 9, "Technical Specifications" for the pin assignments.
With the 5017SC the 1000V range and any current measurement is restricted to the
front plugs.
The voltage limit on the input of the scanner is max. 125 Vpk between any two pins,
respectively between any pin and ground.
Scanner

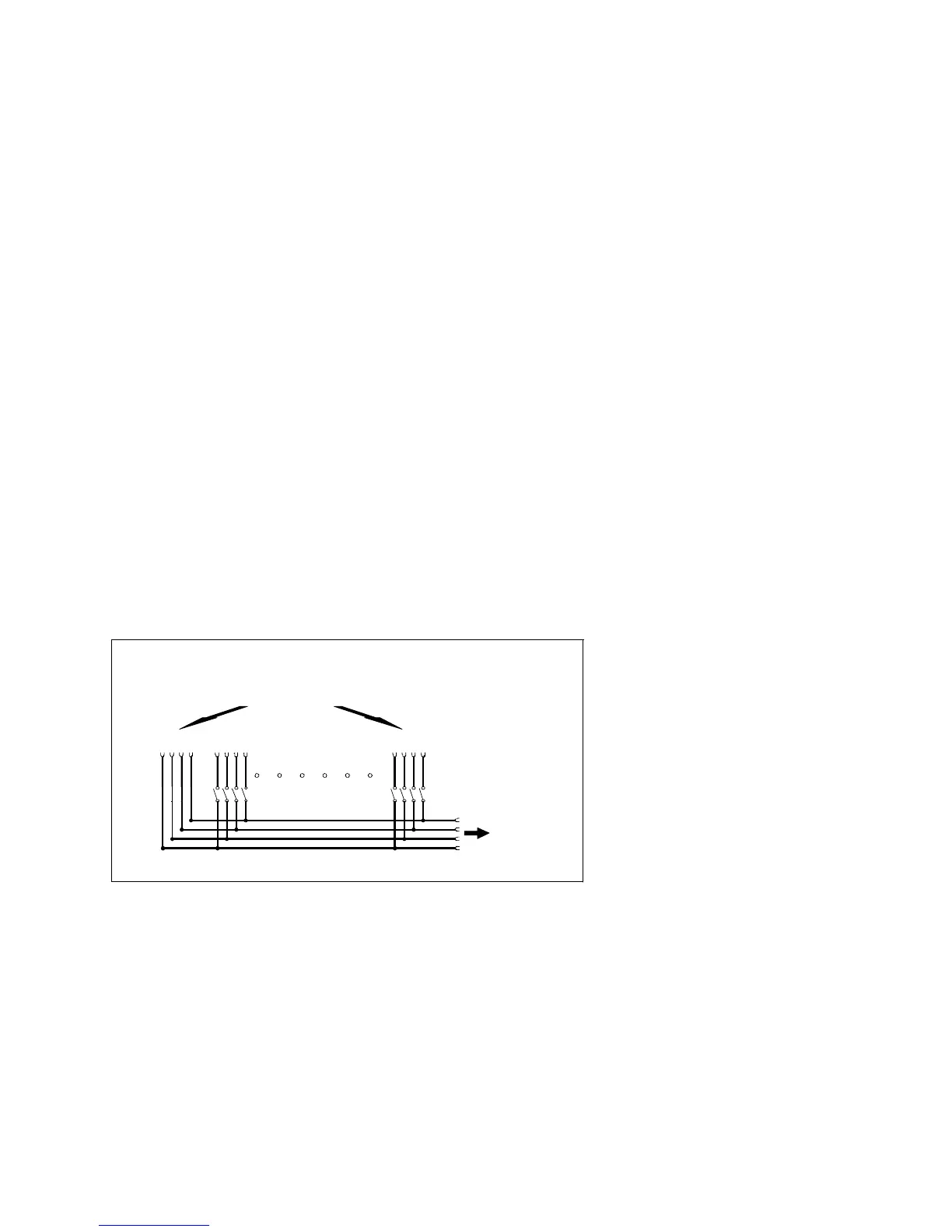

The scanner operates with bistable 4-pole relays for all the switching of 20 4-pole or
40 2-pole or 80 1-pole channels.
Voltage, Resistance, Temperature ....
Channel 20
20-channel Scanner with low thermal volta
g
e rela
y
s
Channel 01
Main path
To DMM
The selection of the scanner configuration (1-pole, 2-pole, 4-pole) can be performed
in the menu "Device, Scanner" or via remote control with the respective command.
