Prema DMM 5017 - Measuring Resistance

Measuring Resistance
_____________________________________________________________________________________________________________________________________
3-4
3.5 Measuring Resistance
Measurement Functions
2-Wire Resistance Measurement Ω2
W
key
4-Wire Resistance Measurement Ω4
W
key
Measurement Ranges
300 Ω, 3 kΩ, 30 kΩ, 300 kΩ, 3 MΩ, 30 MΩ
Measurement Times
20 / 40 / 100 ms 5½ digits
200 / 400 ms / 1s 6½ digits
2 / 4 / 10 / 20 / 40 / 100 s 7½ digits
max. Resolution in the smallest range 7½ digits, 10µ
Ω
HI HI
Amps V
Ω
Ω4
Sense
LO
Resistance
2-wire

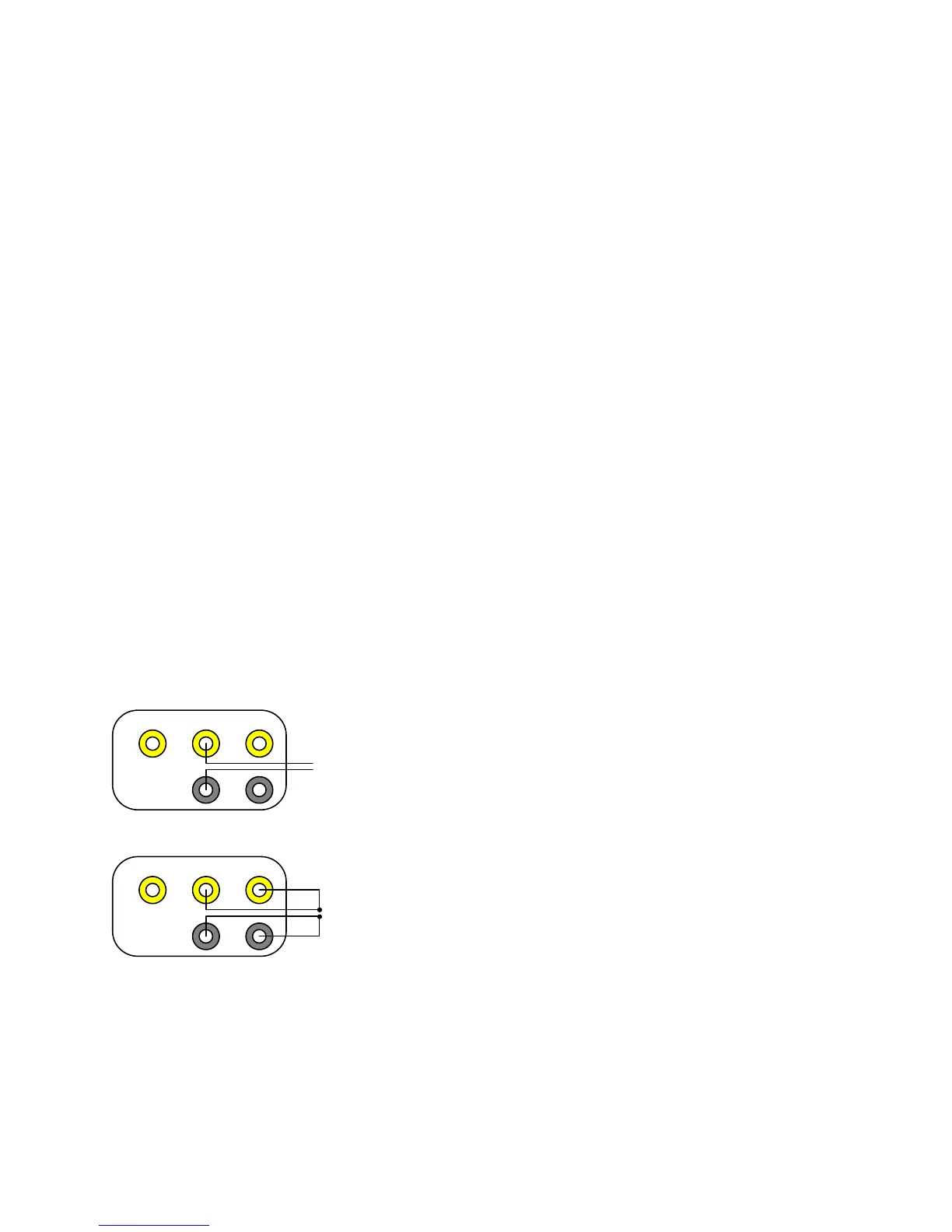

Figure: Connection of leads in resistance measurement (2-wire)
HI HI
Amps V
Ω
Ω4
Sense
LO
Resistance
4-wire
Figure: Connection of leads in resistance measurement (4-wire)
The rear plugs are connected correspondingly.
For model 5017SC with scanner the measurement leads are connected to Hi and Lo
(2-wire) or Hi, Lo (Source) and SHi, SLo (Sense) of the respective channel.
