3.6 Measuring Temperature
Sensors
RTDs: Pt10, Pt25, Pt100, Pt500, Pt1000
Sensor Configuration
in the menu "Device, Temp Sensor"
Resolution and Measurement Times
0.01 K / 0.01°C / 0.01°F 100 / 200 / 400 ms
0.001 K / 0.001°C / 0.001°F 1 s to 100 s
Select °C / °F / K press
TEMP
key again
HI HI
Amps V
ΩΩ4
Sense
LO
RTD
Sensors

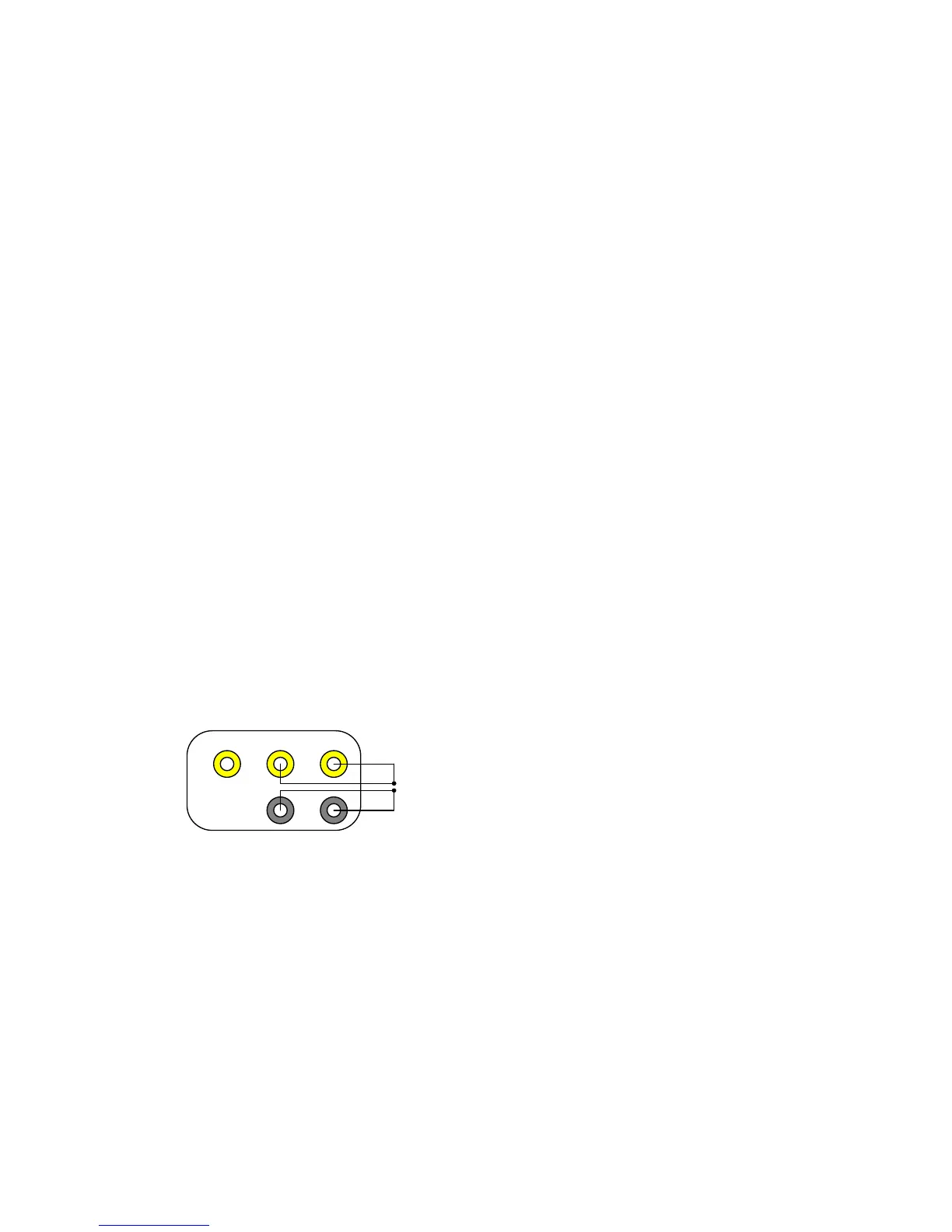

Figure: Connection of measurement leads for RTD Sensors
The rear plugs are connected correspondingly.
For model 5017SC with scanner the measurement leads are connected to Hi, Lo
(Source) and SHi, SLo (Sense) of the respective channel.
