Measuring Voltage
_____________________________________________________________________________________________________________________________________
3-2
3.3 Measuring Voltage
Measurement Functions
DC Voltage
VDC
key
AC Voltage
VAC
key
AC Voltage with DC Component
VAC
key and
COUPL
key
Measurement Ranges
Vdc 300mV, 3V, 30V, 300V, 1000V
Vac 200mV, 2V, 20V, 200V, 700V
Resolution and Measurement Times
Vdc 20 / 40 / 100 ms 5½ digits
200 / 400 ms / 1s 6½ digits
2 / 4 / 10 / 20 / 40 / 100 s 7½ digits
Vac 100 ms 5½ digits
0.2 / 0.4 / 1 / 2 / 4 / 10 / 20 / 40 / 100s 6½ digits
max. Resolution in the smallest range Vdc: 10nV Vac: 100nV
Frequency Range Vac: 20 Hz to 1 MHz

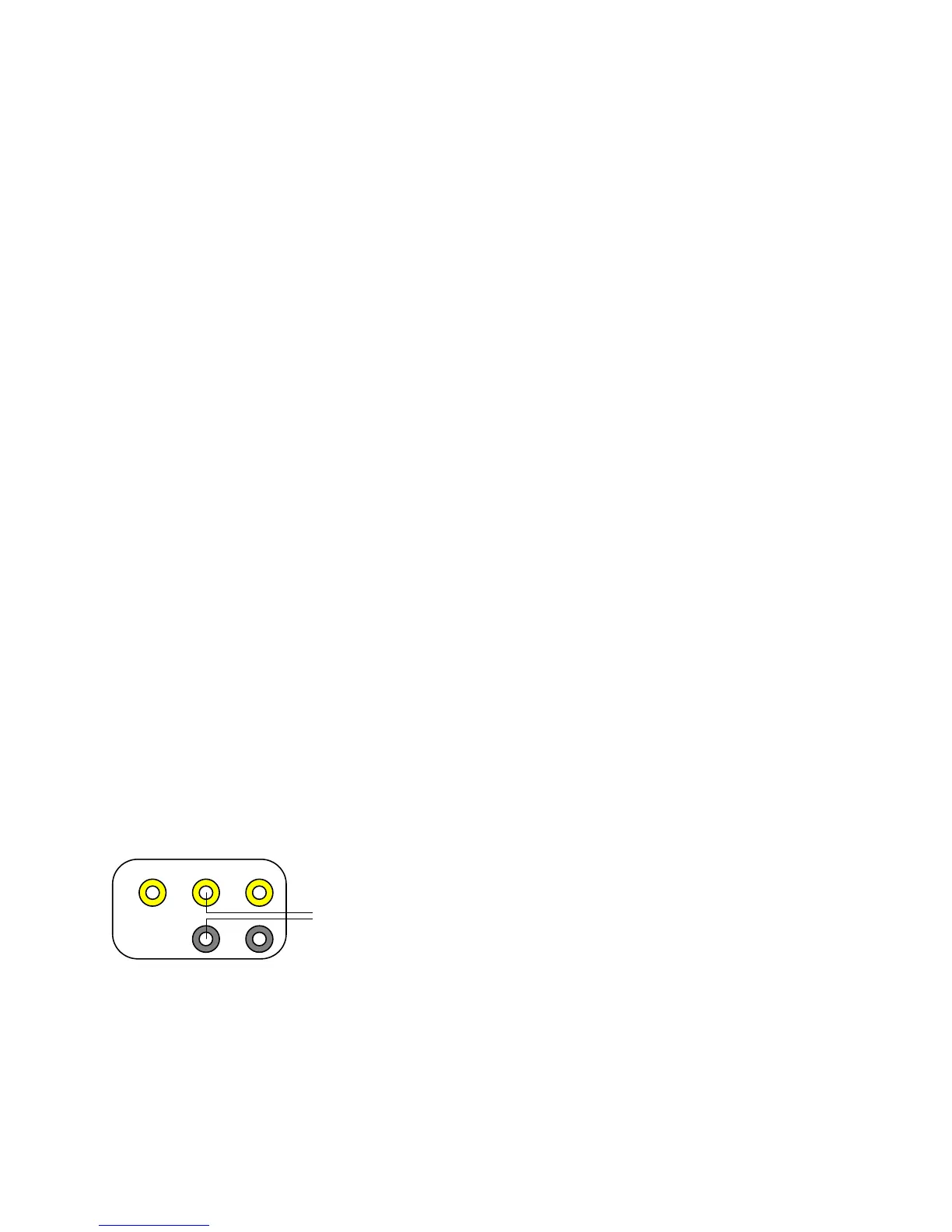

Figure: Connection of measurement leads in Voltage Measurement
The rear plugs are connected correspondingly.
For model 5017SC with scanner the measurement leads are connected to Hi and Lo of
the respective channel.
HI HI
Amps
V
Ω
Ω4
Sense
LO
+
__
DC or AC Voltage
