Scanner with Model 5017SC
_____________________________________________________________________________________________________________________________________
9-20

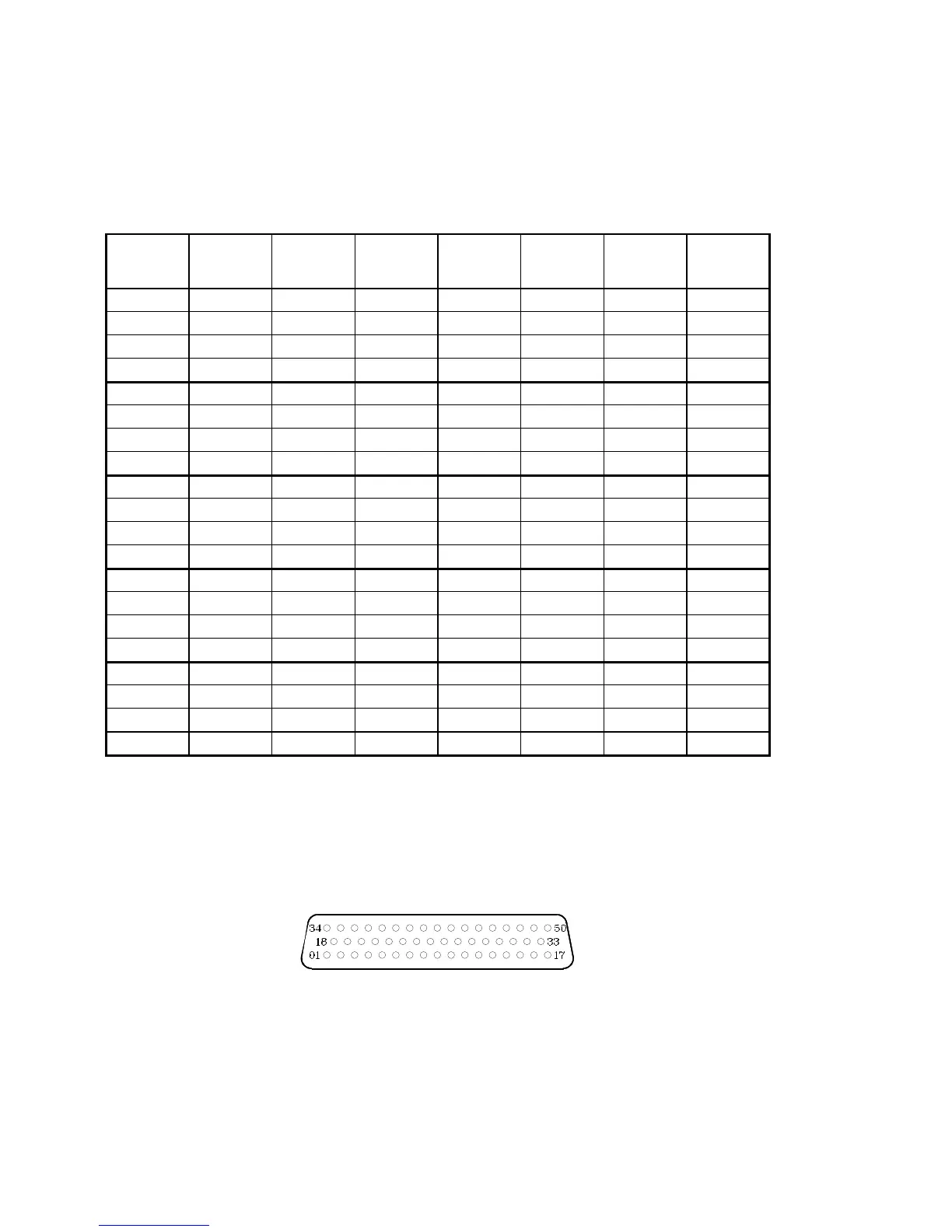

Scanner Input 2
Channel
4-pole
Channel
2-pole
Channel
1-pole
PIN No. Channel
4-pole
Channel
2-pole
Channel
1-pole
PIN No.
11 SHi 21 Hi 41 Hi 19 16 SHi 31 Hi 61 Hi 25
11 SLo 21 Lo 42 Hi 18 16 SLo 31 Lo 62 Hi 24
11 Hi 22 Hi 43 Hi 35 16 Hi 32 Hi 63 Hi 9
11 Lo 22 Lo 44 Hi 34 16 Lo 32 Lo 64 Hi 8
12 SHi 23 Hi 45 Hi 4 17 SHi 33 Hi 65 Hi 27
12 SLo 23 Lo 46 Hi 3 17 SLo 33 Lo 66 Hi 26
12 Hi 24 Hi 47 Hi 2 17 Hi 34 Hi 67 Hi 11
12 Lo 24 Lo 48 Hi 1 17 Lo 34 Lo 68 Hi 10
13 SHi 25 Hi 49 Hi 21 18 SHi 35 Hi 69 Hi 29
13 SLo 25 Lo 50 Hi 20 18 SLo 35 Lo 70 Hi 28
13 Hi 26 Hi 51 Hi 37 18 Hi 36 Hi 71 Hi 13
13 Lo 26 Lo 52 Hi 36 18 Lo 36 Lo 72 Hi 12
14 SHi 27 Hi 53 Hi 5 19 SHi 37 Hi 73 Hi 31
14 SLo 27 Lo 54 Hi 22 19 SLo 37 Lo 74 Hi 30
14 Hi 28 Hi 55 Hi 39 19 Hi 38 Hi 75 Hi 15
14 Lo 28 Lo 56 Hi 38 19 Lo 38 Lo 76 Hi 14
15 SHi 29 Hi 57 Hi 7 20 SHi 39 Hi 77 Hi 33
15 SLo 29 Lo 58 Hi 6 20 SLo 39 Lo 78 Hi 32
15 Hi 30 Hi 59 Hi 40 20 Hi 40 Hi 79 Hi 17
15 Lo 30 Lo 60 Hi 23 20 Lo 40 Lo 80 Hi 16
Ground = 41, 42, 43, 44, 45 (only in 1-pole configuration) SHi= Sense Hi
Not connected = 46, 47, 48, 49, 50 SLo = Sense Lo
