4 Assembly and Installation
n User qualification, mechanical assembly: Trained specialist
n User qualification, electrical assembly: Electrician
The measuring/control device must be installed in such a way that
the mains plug can be easily pulled out or the mains disconnection
switch can be reached.
4.1 Wall mounting
Mounting materials (contained in the scope of delivery)
n 1 x wall bracket
n 4 x PT screws 5 x 35 mm
n 4 x washers 5.3
n 4 x rawl plug Ø 8 mm, plastic
Take the wall bracket out of the housing

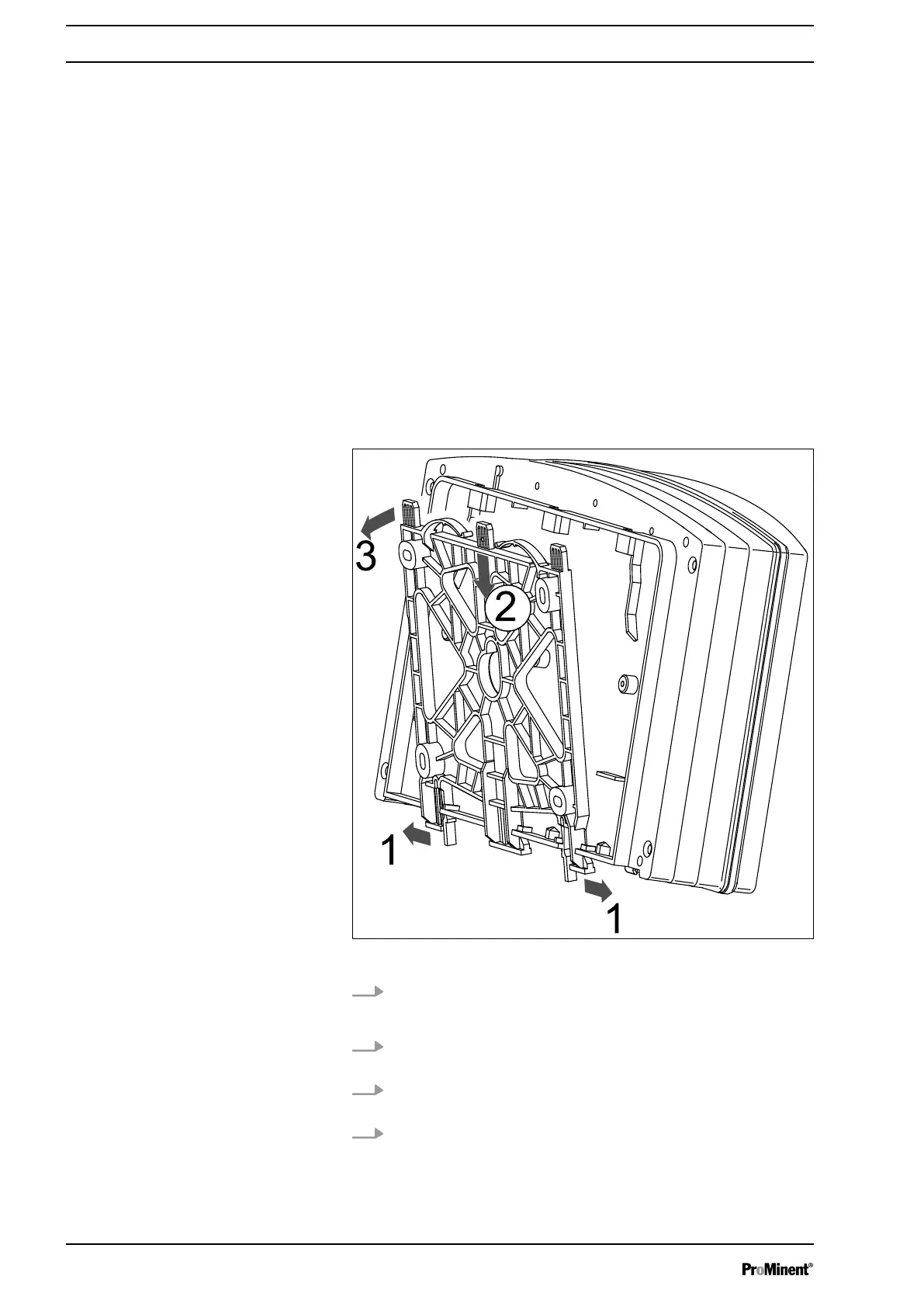

Fig. 1: Removing the wall bracket
1. Pull the two snap hooks (1) outwards
ð
The wall brackets snaps slightly downwards.
2. Push the wall bracket downwards (2) from the housing and
fold (3) it out
3. Use the wall bracket as a drilling template to mark the posi‐
tions of four drill holes
4. Drill the holes: Ø 8 mm, d = 50 mm
Wall mounting
Assembly and Installation
