4.5.1 PT100 / Pt1000 input RI1
A3756

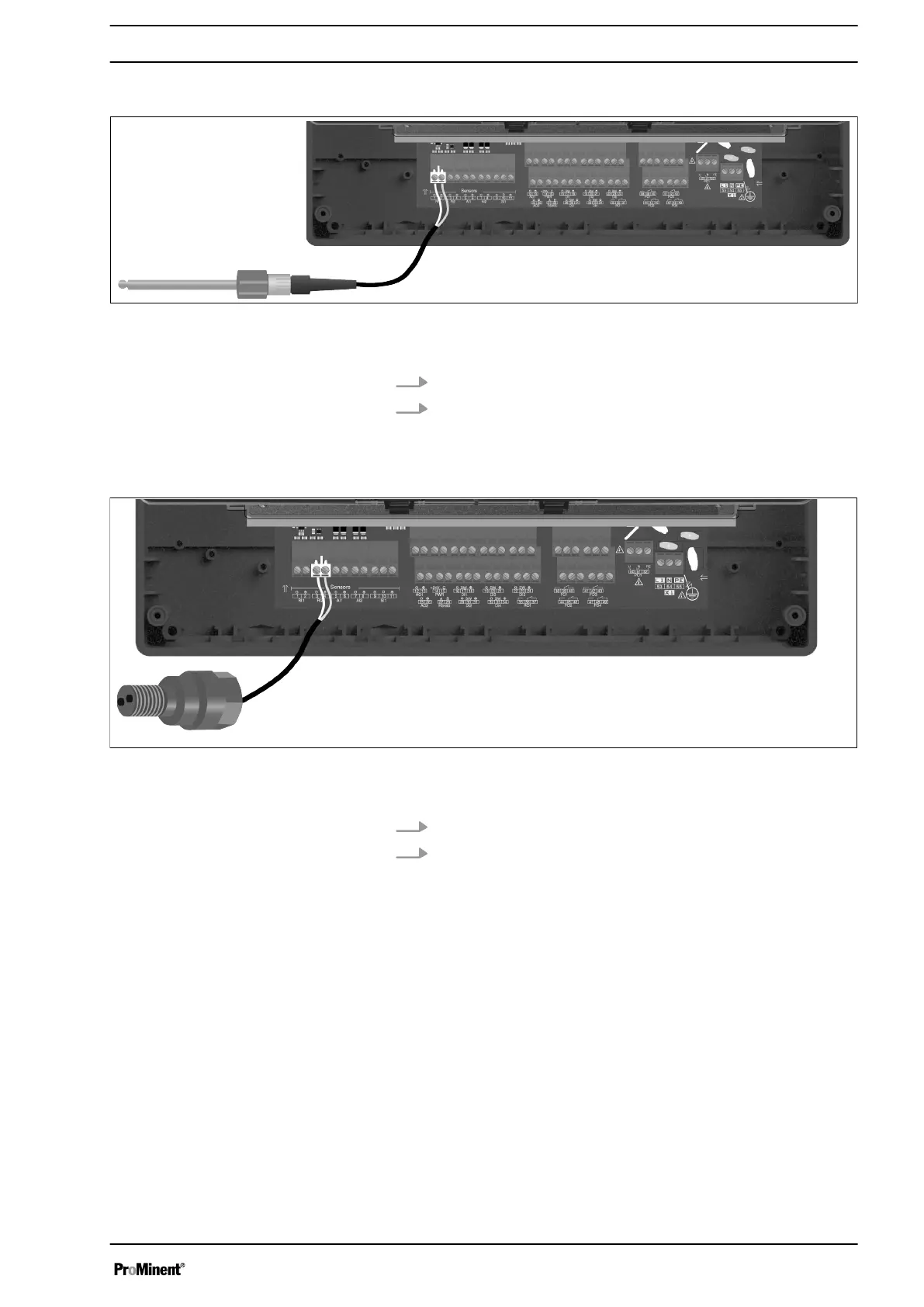

Fig. 9: PT100 / Pt1000 input RI1
Connection of the sensor to RI1:
1. 1. Connect the sensor (+) strand to RI1 + (1).
2. 2. Connect the sensor (-) strand to RI1 - (2).
4.5.2 Conductivity input RI2
A3757
Fig. 10: Conductivity input RI2
Connection of the sensor to RI2:
1. 1. Connect the sensor (+) strand to RI2 + (3).
2. 2. Connect the sensor (-) strand to RI2 - (4).
