ProMinent DULCOMETER - Functional description

A3762

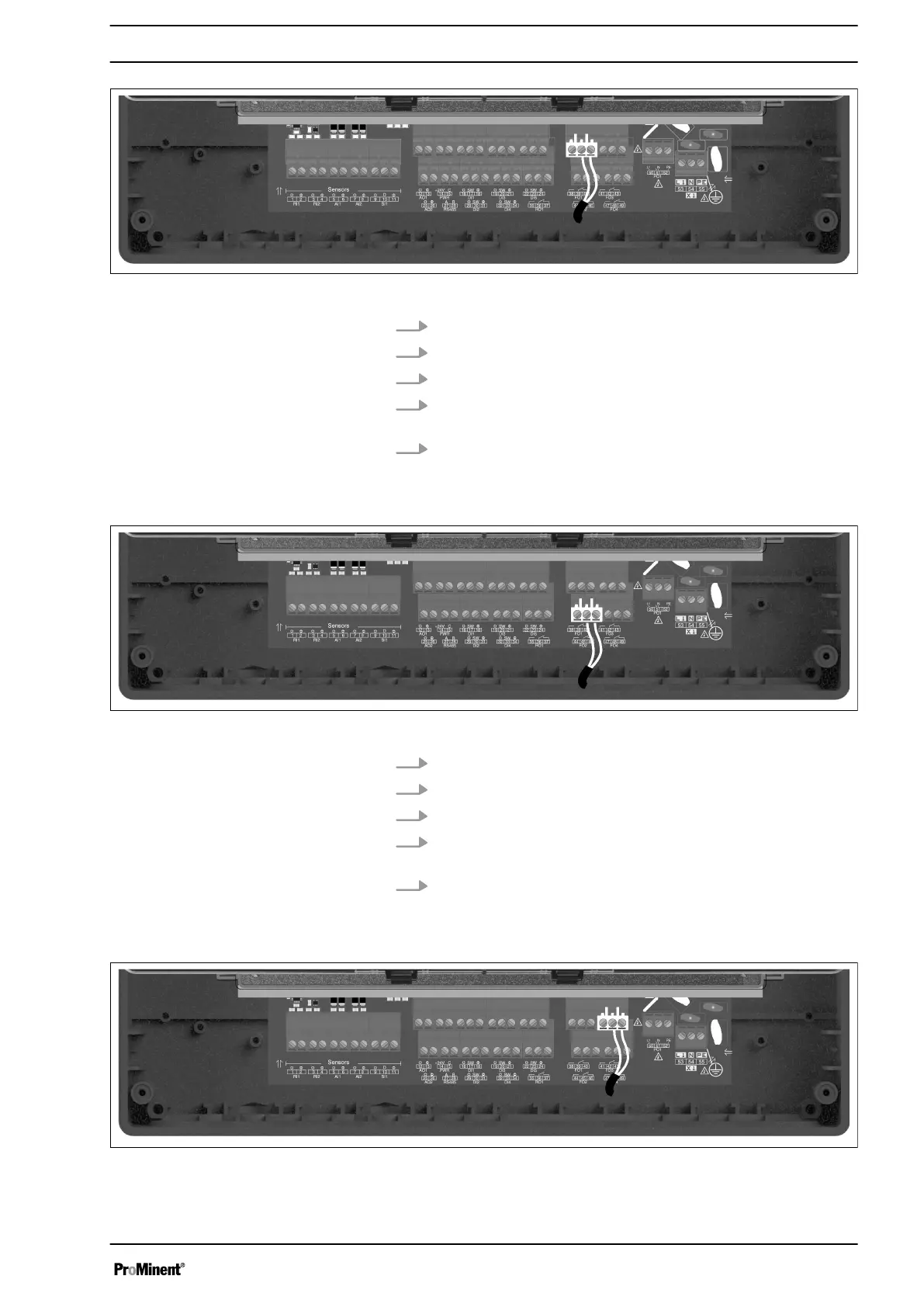

Fig. 15: F01
1. Remove the protective sheath.
2. Strip wires on 7 mm.
3. Pass the cable through a cable gland.
4. Connect a cable on the midpoint COMMON (39) of the ter‐
minal block.
5. Connect the second cable on the WORK (38) of the terminal
block or on the REST (40) depending on the function to be
performed.
A3763
Fig. 16: F02
1. Remove the protective sheath.
2. Strip wires on 7 mm.
3. Pass the cable through a cable gland.
4. Connect a cable on the midpoint COMMUN (45) of the ter‐
minal block.
5. Connect the second cable on the WORK (44) of the terminal
block or on the REST (46) depending on the function to be
performed.
A3764
Fig. 17: F03
Assembly and Installation
23
