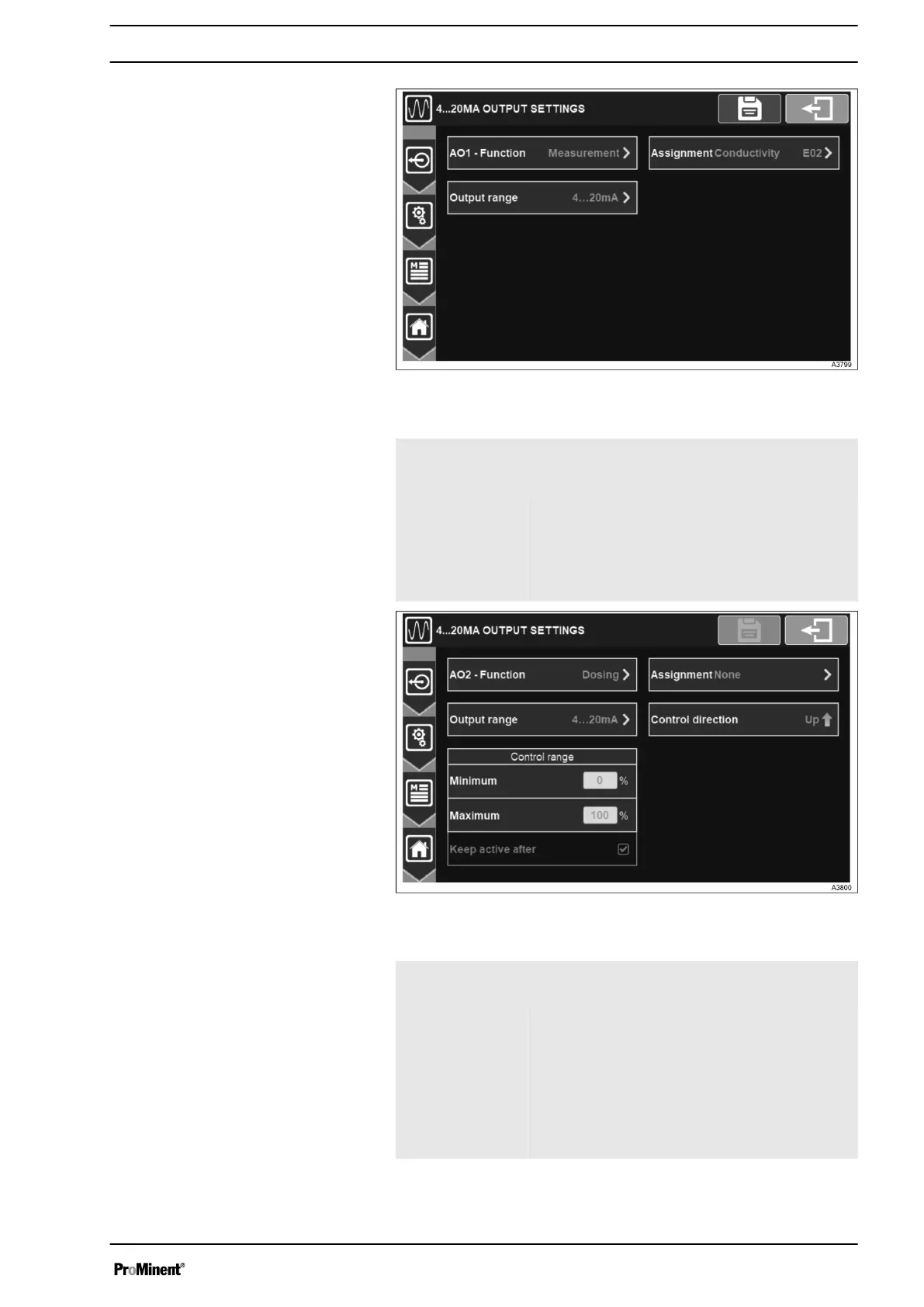

Fig. 51: Menu 4...20mA output settings
AO1 - Function The analog outputs can be configured for con‐
trol of dosing pumps or to transfer a value to a
PLC.
Assignment For the transfer of a measurement to a PLC,
select measurement and assign the measure‐
ment.
Output range For the output range the two options 4…20
mA and 0…20 mA are available.
Fig. 52: Menu 4...20mA output settings
Assignment For the control of a dosing pump, select the
measuring channel.
Output range For the output range the two options 4…20
mA and 0…20 mA are available.
Control direction Control direction can be up for increasing the
measured value or down for decreasing the
value.
Minimum Enter the value of the Minimum.
Possible adjustment from 0 to 100 %.
4…20mA output settings
