Valve Off Distance – Distance the path traveled when turning the valve off, before the path
finishes.
• Teach – Record current position. Equivalent to the F2 key on the Dispensing System.
• Done – Add to the program.
• Cancel – Quit without altering the program.
NOTES: Playback is only allowed if the Dispensing System is currently in Manual/Jog/Teach mode.
Only three points can be plotted for the arc function.

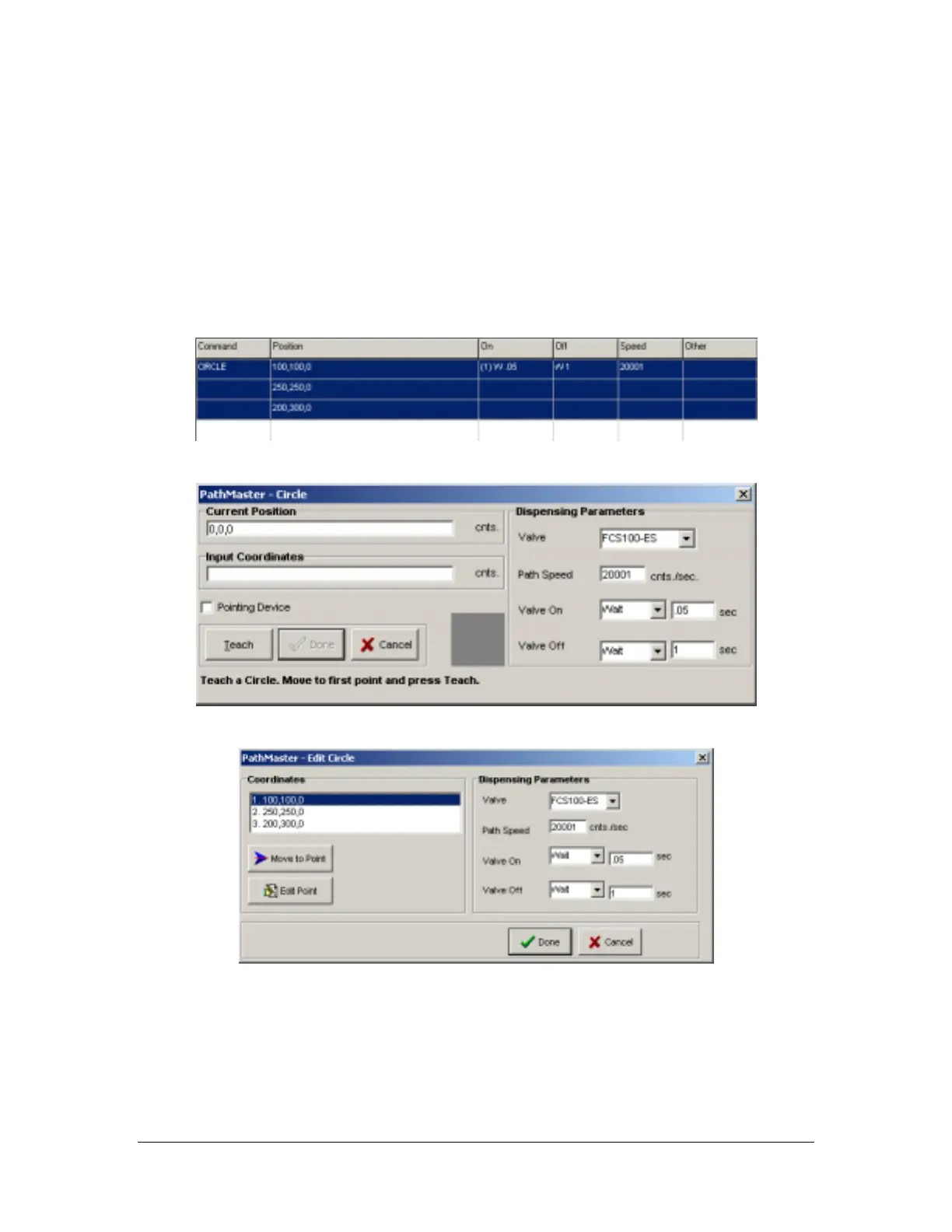

Circle
Programmed
Teach Screen
Edit Screen
This tool teaches a circle. The operator must select three (3) points on the circumference of the circle,
including the start point, moving (clockwise or counter-clockwise) in the direction the axes must move. The
Z axis does not alter its position during the path.
NOTES: When selecting points, space them evenly around the circle. Do not use the same point as the
first and last point.
