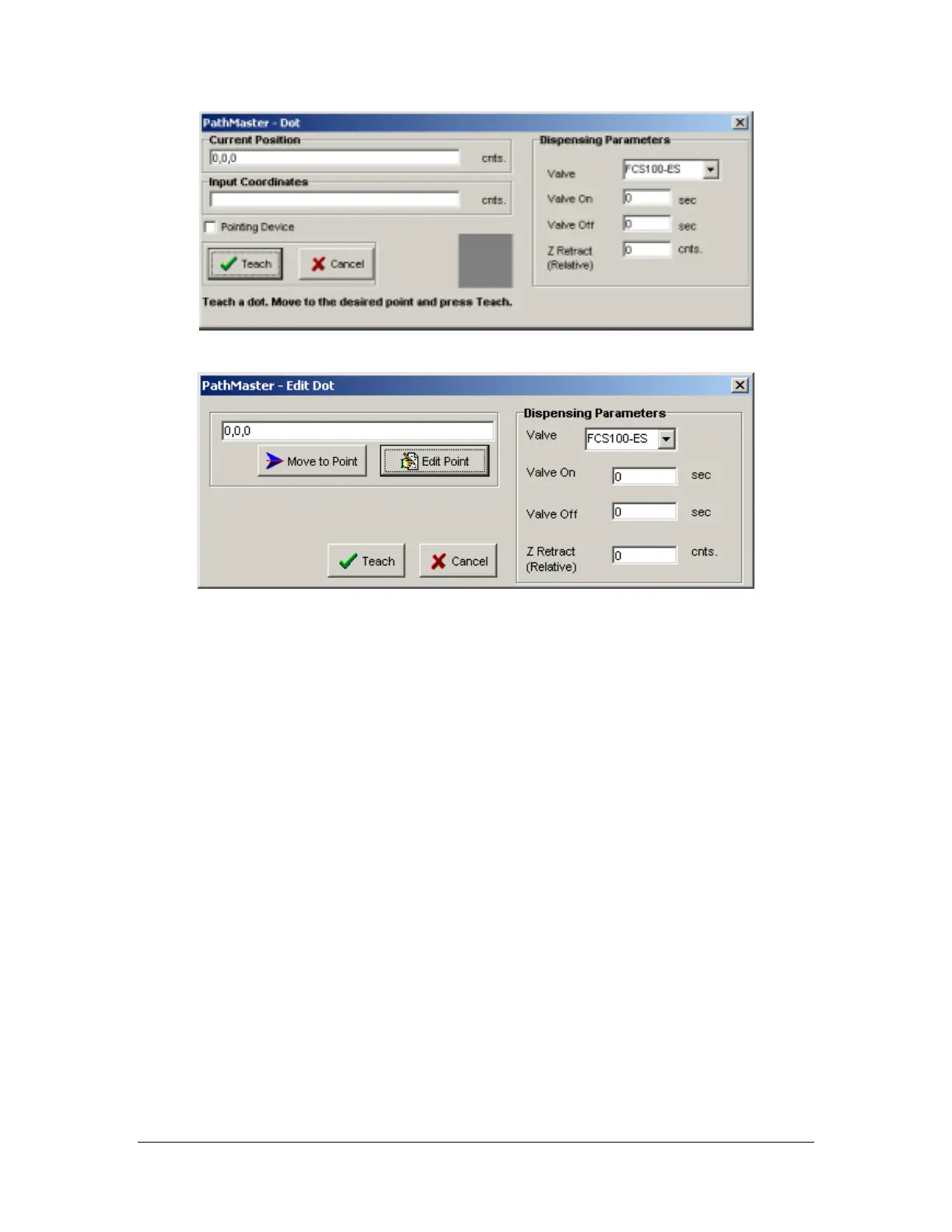

Edit Screen
This function teaches a timed dispense.
• Current Position – If there is communication established with the controller, the current position
appears in the text box. Use the trackball on the Dispensing System to change the position.
• Input Coordinates – Manual entry of target position.
• Dispensing Parameters – Select appropriate parameters for the current dispense, including the active
valve.
Valve On Wait – The length of time the valve remains on.
Valve Off Wait – The pause after turning the valve off but before moving to the next point.
Z Retract (Relative) – Distance to raise the Z axis after completing certain moves.
• Teach – Record current position and add to the program. Equivalent to the F2 key on the Dispensing
System.
• Cancel – Quit without altering the program.
