Operation and Maintenance Manual Rev M(ii) 4/03
- 15 -

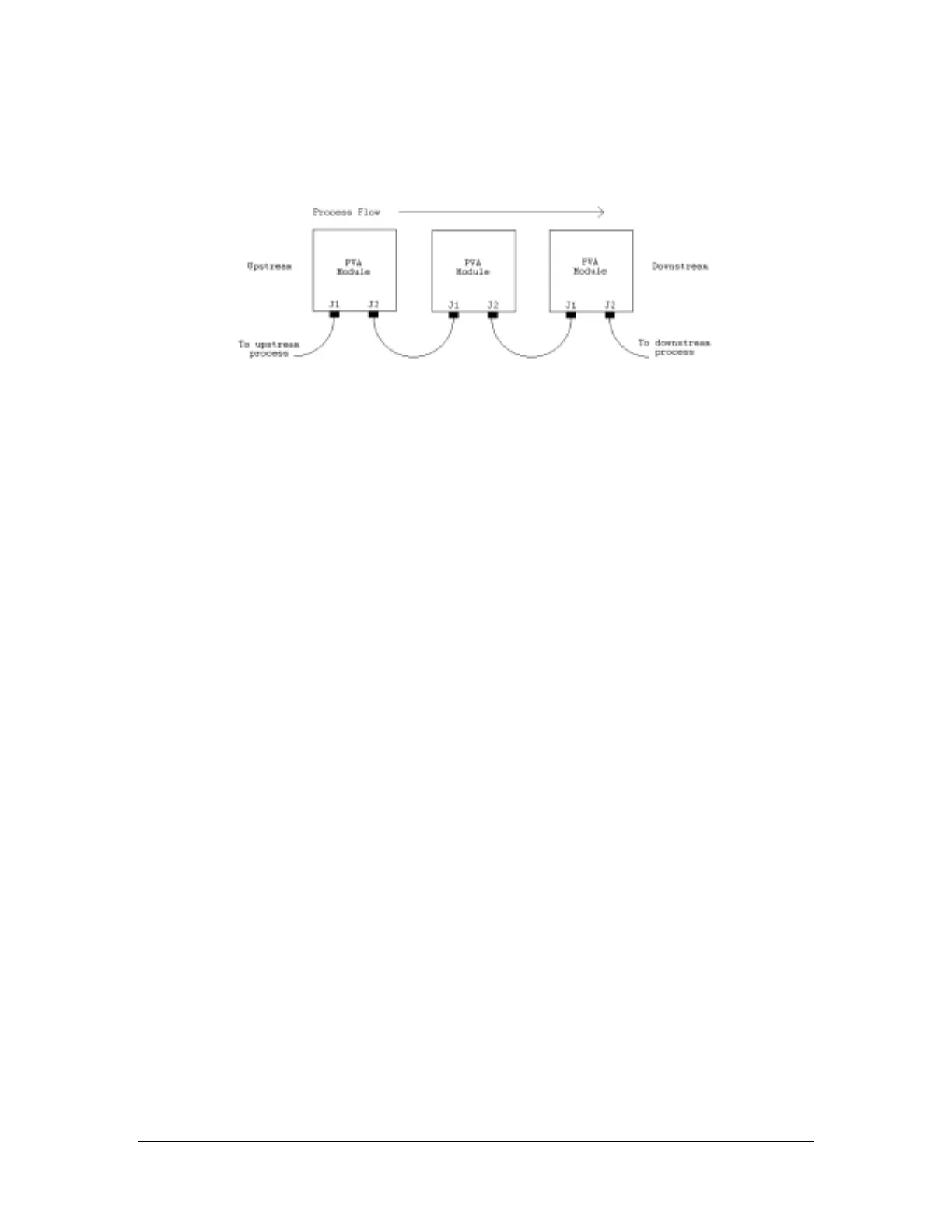

SMEMA cables have male 14-pin amp-type CPC connectors. The cables are straight-through, so
orientation does not matter. On each module, the wire to the J1 (Previous) plug must connect to the J2
(Next) plug on the machine upstream. Similarly, the J2 plug on each machine must connect to the J1 plug
on the machine downstream, as shown in the following diagram:
