DIAGNOSTICS Gate movement errors
Cubiscan 325 Service Manual 8
Gate movement errors
This section describes the various gate movement errors that can occur with the Cubiscan 325.
Refer to the following sections for more information.
Gate cursor not moving
Complete the following steps if the green gate cursor does not follow the gate’s movements.
1. Make sure that the green LED encoder light is lit.
2. Check the encoder cable and make sure it is securely attached at both ends of the cable. If
doing this does not correct the problem, continue on to step 3.
3. Check the encoder magnetic strip and see if it is visibly damaged or peeled up. Contact
Cubiscan at 801.451.7000 if you need a replacement part.
4. Check the gap between the encoder and the magnetic strip. They should be as close as
possible without actually touching. Adjust the encoder if needed.
5. Go to Menu > Diagnostics > Encoder. The encoder value should read 0000 when the gate
is in the home position. Move the gate all the way to the left and back into the home
position. If the encoder value does not change, please contact Cubiscan Technical Assistance
at 801.451.7000.
Gate cursor out of box
Complete the following steps if the green gate cursor is out of the box.

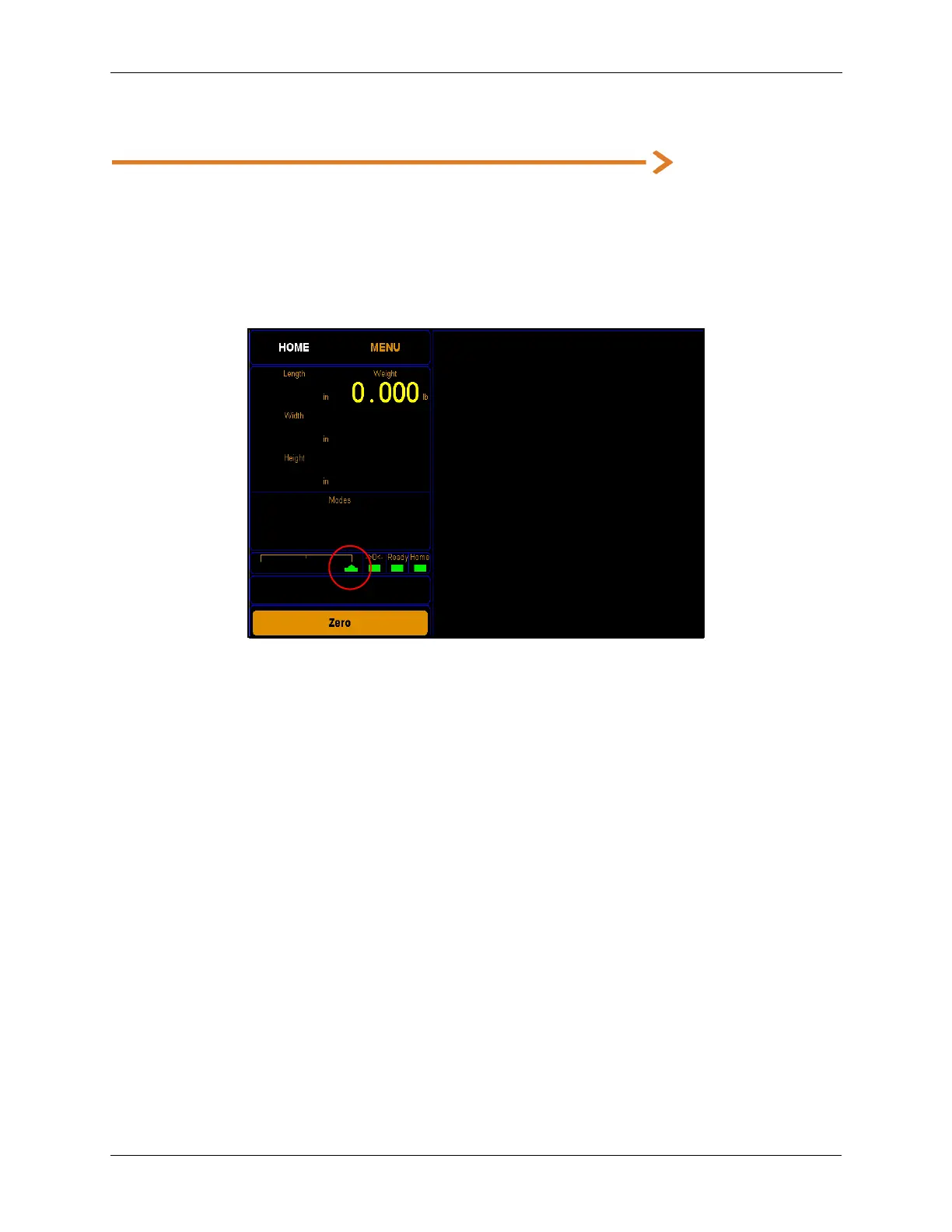

Figure 3
Gate cursor
