SEATING SECTION

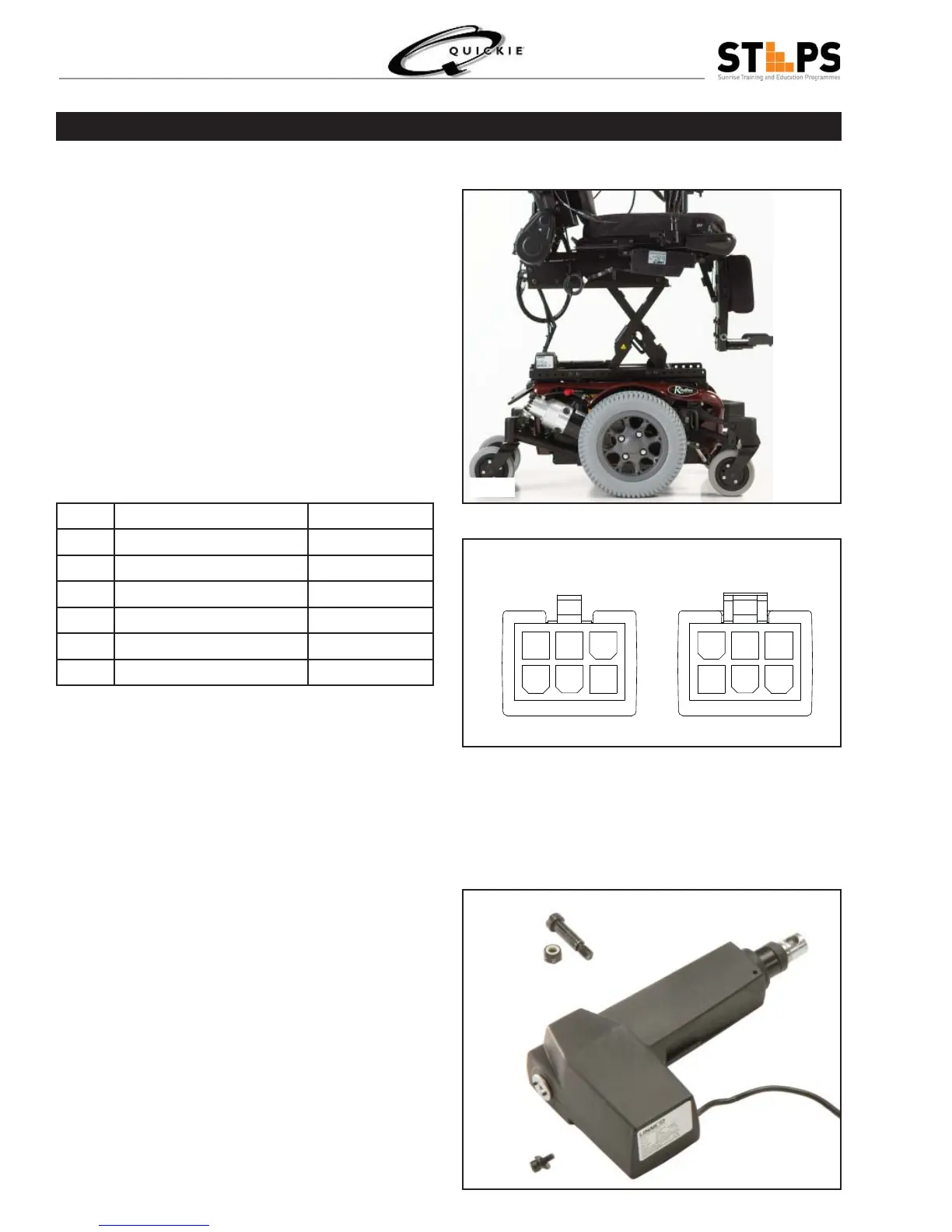

Lift System
Eleven inches of lift. •
Linak Actuator.•
Cross arm x-style actuation design.•
Connects directly to the motor controller.•
Operated by either a toggle activation switch or •
directly through the joystick.
Power Modules
1
1
22
33
665544
Pin 1 Motor + Brown
Pin 2 Encoder Red
Pin 3 Ground Black
Pin 4 COT Switch N/A
Pin 5 Motor - Blue
Pin 6 24 Volt Switched Power N/A
When + 24 is connected to Blue/Motor+/Pin 5 •
and Ground is connected to Brown/Motor-/Pin 1
the actuator will extend and the lift will go up.
When + 24 is connected to Brown/Motor+/Pin •
1 and Ground is connected to Blue/Motor-/Pin
5 the actuator will retract and the lift will go
down.
Fig 3.84
Fig 3.85
The Linak actuator is replacable in both lift and tilt
modules (Fig 3.83).
Tilt Plug
Harness
Fig 3.86
