83
©2006 Sunrise Medical
SEATING SECTION

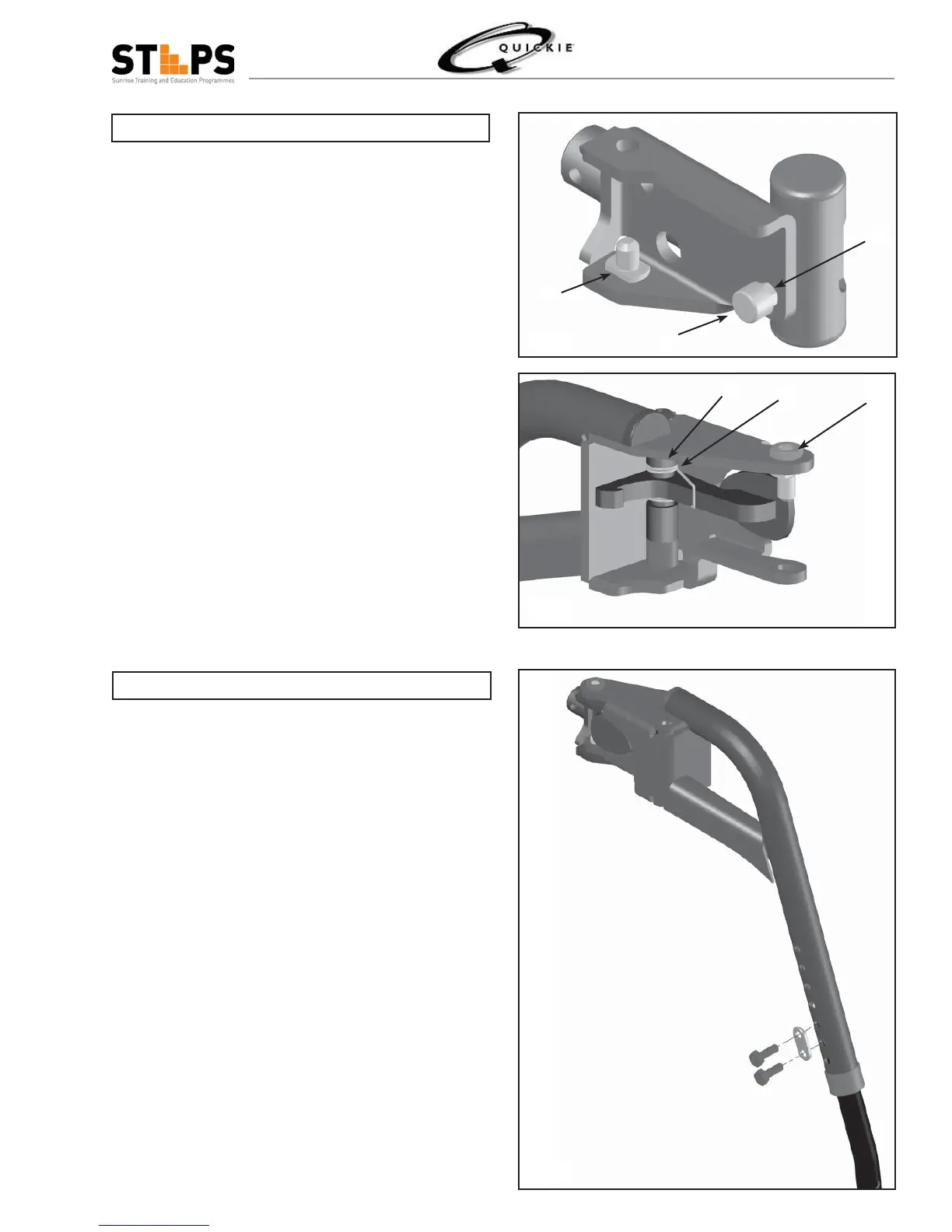

New leg rest hangers are used on the Perfect Fit
Seating System. These hangers provide more positive
lock. The following drawing illustrates the repair/
adjustment procedures:
Locate the adjustment bolt covered with a •
rubber bumper (A).
Lossen stop nut (B). Turn rubber bump stop •
(A) inwards or outwards until hanger touches
bumper when latching to remove sideways
movement.
To replace the mounting pins (C), remove the •
pin by removing the stop nut (E), then unscrew
the pin. Replace with a new mounting pin.
To replace the latch spring (D), remove the •
screw securing the latch and remove the latch.
Unscrew the pivot bushing (F) by twisting by
hand then remove spring. Replace the spring
and reinsert the bolt.
The leg rest length may be adjusted as follows:
(Fig 3.43)
Locate the mounting bolts. Remove the bolts.•
Move the leg rest up or down in the hanger until •
the desired length is reached.
Reinstall mounting bolts.•
Leg Rest Hangers
Leg Rest
A
C
B
D
F
E
Fig 3.40
Fig 3.41
Fig 3.42
